Summary of Contents for Medema Spider

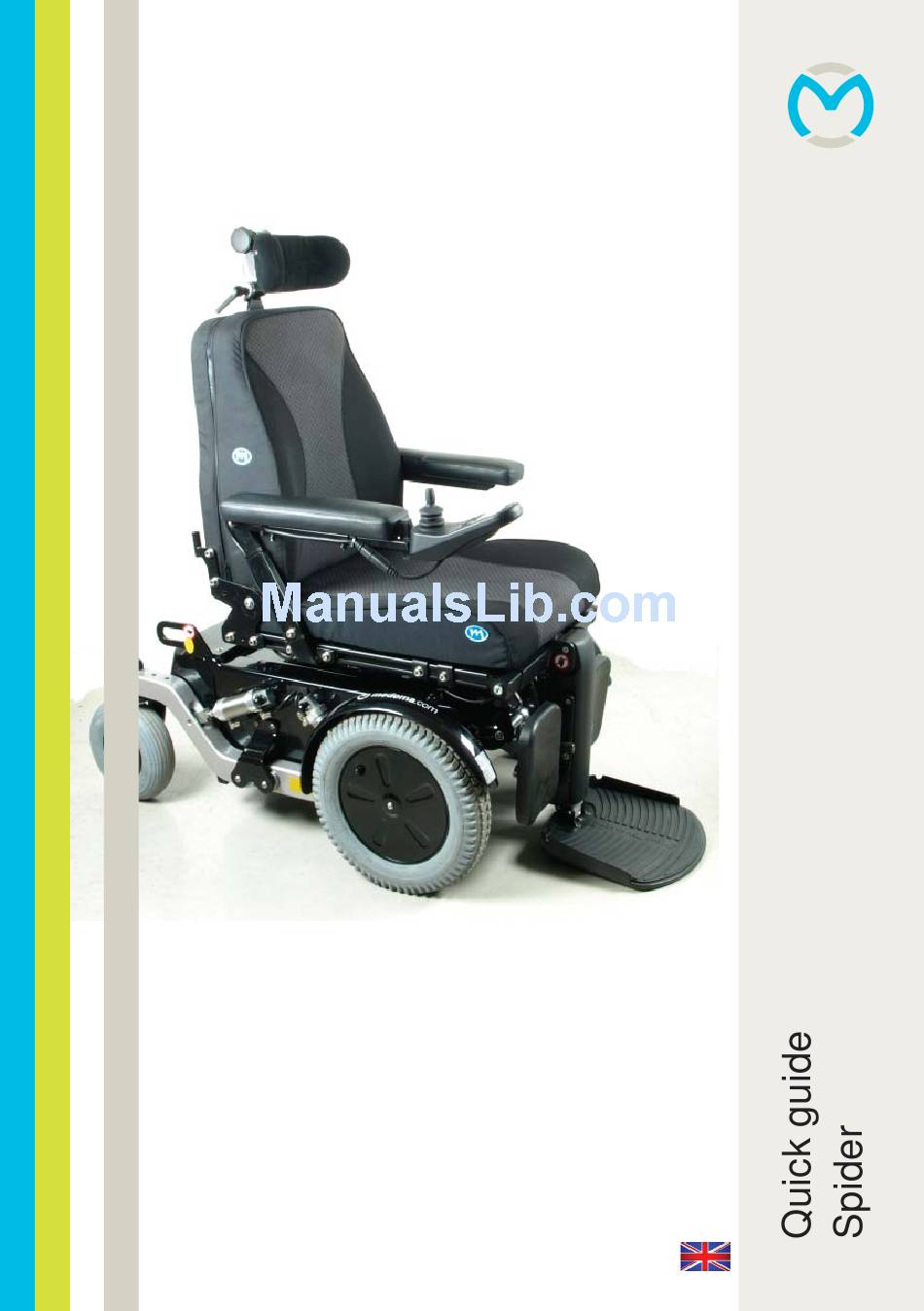

- Page 1 medemagroup P9-0271-B ver. 1.0.1 - june 2011...
- Page 2 Medema Production A/S 2 of 20 Quick guide P9-0271-Q Version 1.0.1/2011...
-
Page 3: Table Of Contents
Safety check..................... 12 Troubleshooting the R-net ..............12 Serial number................... 14 Driving the Spider ..................14 12 tips for driving the Spider: ..............15 Driving on public roads: ................ 16 Driving on stairs/escalators: ..............16 Brakes....................... 17 Motor braking: ..................17 Parking brake: .................. -
Page 4: Quick Guide - Spider
Quick guide - Spider Introduction Congratulations on your new, Spider electric mobility scooter. You are now the owner of an electric mobility scooter developed for use indoors as well as outdoors. It is what is called a Class B vehicle according to the European classifi... -
Page 5: Part Names
Medema Production A/S Part names The part names given below refer to the descriptions later in the this guide. Headrest Armrest Joystick Control panel Charging socket Calfrest Eye for restraints Pivot wheel Footplate or footrests Øje til Serial number on bespænding... -
Page 6: Parts Joystick R-Net
Medema Production A/S Parts Joystick R-net Joystick R-net Start/stop button Horn Lights (Extra) Profi le-button Indicator right (Exstra) Speed selection Hazard warning lights (Exstra) Display Mode-button Indicator left (Exstra) Joystick 6 of 20 Quick guide P9-0271-Q Version 1.0.1/2011... -
Page 7: Using The Joystick R-Net
Medema Production A/S Using the Joystick R-net Speed selection with joystick R-net To start the wheelchair: Press button 1 and wait for the battery indicator to stabilise (3-5 seconds) Select the maximum speed: Keep pressing button Speed selection to maximize or minimize the maximum speed. -
Page 8: Lcd Screen
Medema Production A/S LCD Screen Top bar Main screen area Base bar Symbol Description Shown in the top bar. Color red, yellow and green - fully charged. Color red and yellow - ok, but need to be charged soon. Color red, steady - ok, but charge as soon as possible. - Page 9 Medema Production A/S Symbol Description Shown just below the speed regulation. This displays the current maximum speed setting. Shown in the center of the main screen area. This displays the actual speed of the wheelchair derived from the motors. The display can be set to mph or km/h.
-
Page 10: Mode
Medema Production A/S Mode Mode Description Displays the sections of the chair currently selected for movement. When Bluetooth Mode is entered the following screen will be displayed. When the control system requires a reboot, this symbol will be fl ashed. -
Page 11: Charging
Medema Production A/S Charging Plug from charger Charging Turn the connector Connector like this. Charging Plug the cable into the control box on the wheelchair. Plug the charger into the outlet or switch it on. Use the indicator lights on the charger to check that charging has started. -
Page 12: Safety Check
Medema Production A/S Safety check See the User Manual Troubleshooting the R-net Fejlsøgning R-net Status light fl ashes with 1 The battery needs charging or there is a bad connection to fl ash per cycle the battery. Status light fl ashes with 2 The left hand motor* has a bad connection. - Page 13 Medema Production A/S Status light fl ashes with 10 Poor battery connection. Contact a competent service fl ash per cycle engineer. (HMC or therapist). Aktuator alarm An Actuator trip is indicated. Contact a competent service engineer. (HMC or therapist). The scooter runs at half If the cause is not a raised seat, this may be a serious fault.
-
Page 14: Serial Number
Driving the Spider Spider is a modern device, specially developed to help you achieve maximum mobility. If you are using the Spider for the fi rst time, you should try out all the day- to-day situations you are likely to encounter: •... -
Page 15: 12 Tips For Driving The Spider
Cables and leads Always make sure that cables and leads from components like the joystick are fi xed using ties. 12 tips for driving the Spider: • Driving normaly indoor og outdoor, the chassis must ALWAYS be in the higest possible setting. -
Page 16: Driving On Public Roads
Note: You should assume that other road users cannot see you while you are sitting in the Spider. So take great care and wait for the road to clear before crossing. Driving on stairs/escalators: The scooter is not designed for use on stairs or escalators and any attempt to do so may cause serious injury to yourself and others. -
Page 17: Brakes
Medema Production A/S Brakes The Spider is equipped with two sets of brakes: The motor brake and the parking brake. Motor braking: When you drive downhill, the control unit of the Spider applies the motor brake. Parking brake: When the vehicle is stationary and the joystick is not moved, a magnetic brake is automatically applied to each drive unit. - Page 18 Medema Production A/S Shown in the image: Normal position for driving. Push the handles up ti disengage. ALWAYS on both sides. 18 of 20 Quick guide P9-0271-Q Version 1.0.1/2011...
-
Page 19: Own Notes
Medema Production A/S Own notes 19 of 20 Quick guide P9-0271-Q Version 1.0.1/2011... - Page 20 medemagroup...
