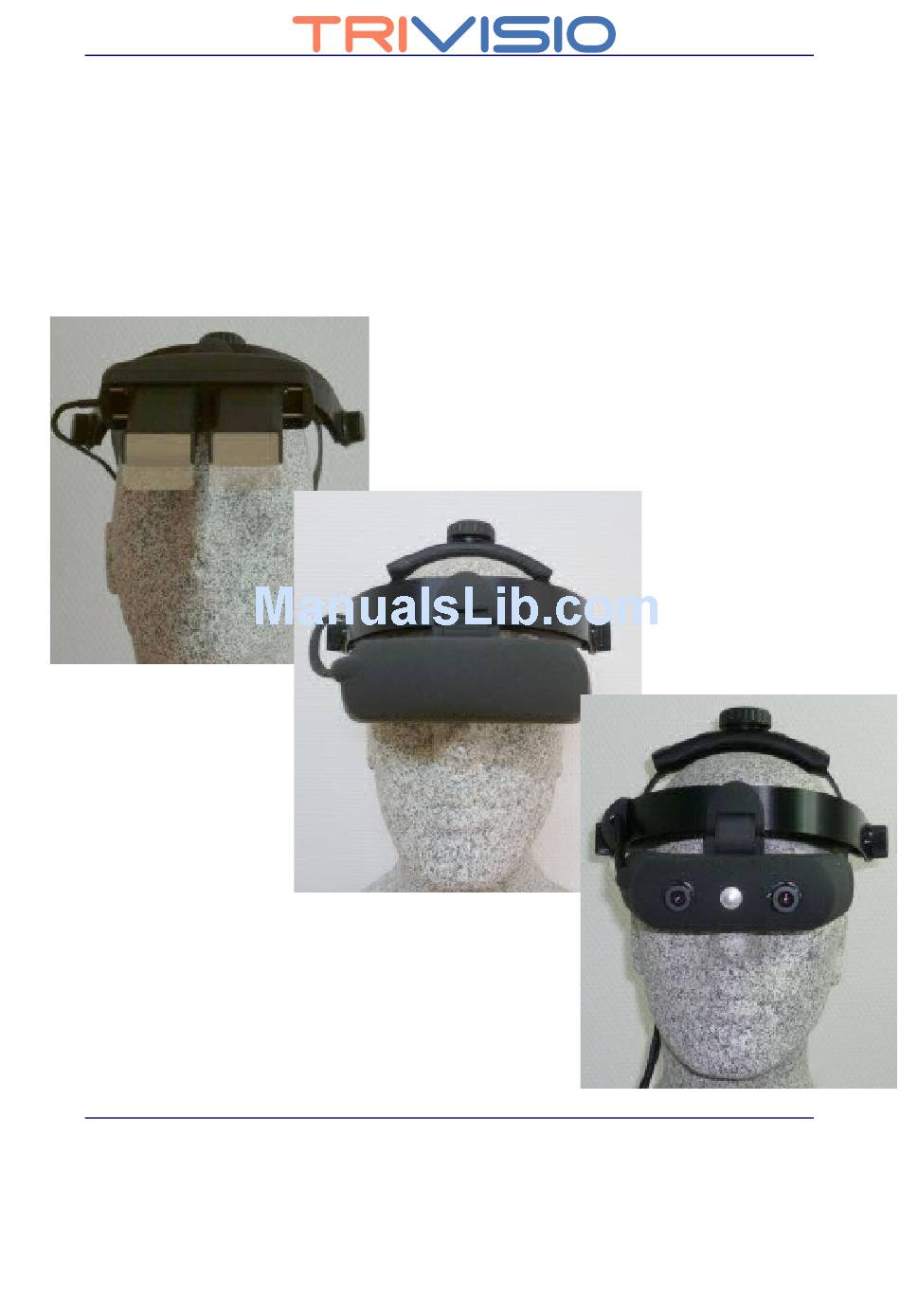

Page 1: User Manual
User Manual Active Stereo For LCD29, VRvision and ARvision-3D/S Subject to technical modifications Copyright: Trivisio Prototyping GmbH, Herzogenbuscher Str. 14, D-54292 Trier 2011/07/31... -
Page 2: Table Of Contents
Table of Contents Table of Contents.................2 1 Liability Limitation..............3 2 Active Stereo................4 2.1 Firmware Update...............4 2.2 Working with nVidia GeForce ...........6 2.3 Working with nVidia Quadro............9 3 10 Active Stereo User Manual... -
Page 3: Liability Limitation
Liability Limitation In no event shall the author be liable for damages, including any general, special, incidental or consequential damages arising out of the use or inability to use the program, including but not limited to loss of data or losses sustained by you or third parties or a failure of the program to operate with any other programs, even if such holder or other party had previously been advised of the possibility of such damages. -
Page 4: Active Stereo
For more details see user manual of HMD and user manual of HMD_connection software. You can find needed Software, firmware and manuals here: www.trivisio.com/index.php/support/user-manuals www.trivisio.com/index.php/support/software Follow the process in correct order: Go to “Firmware update” tab of HMD_CONNECTION software. -
Page 5: Working With Nvidia Geforce
2.2 Working with nVidia GeForce USB IR emitter from 3D VISION WIRELESS GLASSES KIT is needed to activate active stereo driver in frame sequential mode for 120hz. Active Stereo User Manual... - Page 6 The driver for emitter must be installed prior to connecting the USB IR Emitter. Connect IR Emitter to USB. Open nVidia Control Panel. Go to Stereoscopic 3D folder. Select Generic CRT display. Then check the box Enable steroscopic 3D ,you'll be run through Setup Wizard.
- Page 7 Once it's done you can run nVidia sterescopic 3D test. Select 120Hertz and Launch Test Application. Active Stereo User Manual...
- Page 8 Note: Be sure to correctly close application you need either click Close or type Esc. This way driver switch from stereo 120Hz to mono 60 Hz. All other incorrect ways will leave 120Hz running in mono mode. Now you can close nVidia Control Panel and run stereo application you want to work with.
- Page 9 Active Stereo User Manual...
-
Page 10: Working With Nvidia Quadro
2.3 Working with nVidia Quadro IR emitter is not needed for nVidia Quadro, active stereo driver works without additional license. Stereo signal is taken from graphics card 3pin miniDIN stereo connector to HMD dongle 2.5mm jack. Please use following cable. Active Stereo User Manual... - Page 11 Active Stereo User Manual...
- Page 12 Active Stereo User Manual...
- Page 13 Active Stereo User Manual...
