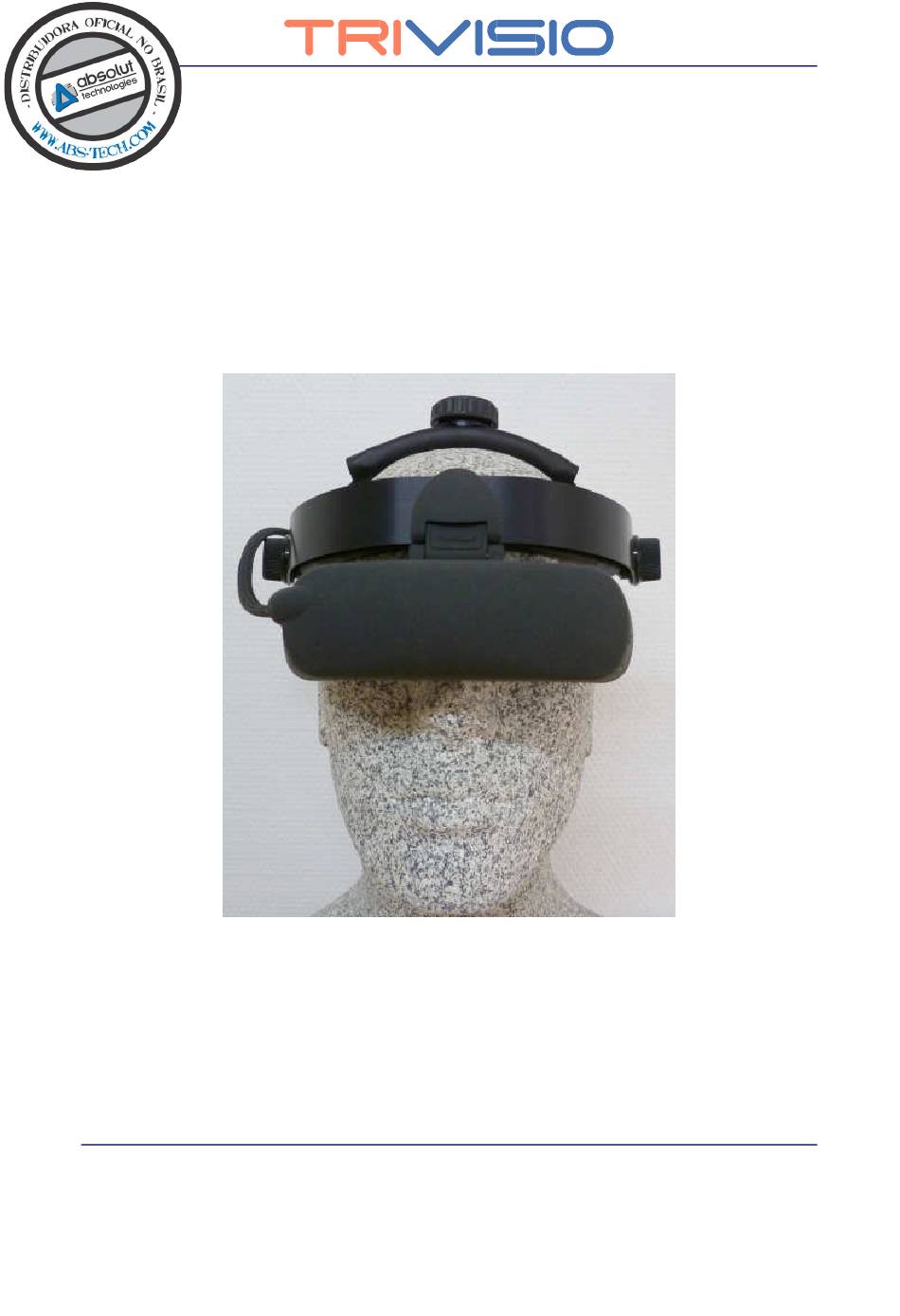

- Page 1 User Manual VRvision Subject to technical modifications Copyright: Trivisio Prototyping GmbH, Karcherstrasse 10, D-67655 Kaiserslautern 2010/10/16...
- Page 2 Before using the VRvision HMD please read carefully these safety instructions. Read this handbook and use the VRvision device in strict accordance in order to prevent any damage to your eye, other injury, loss of visual functions, property damage or death.
-
Page 3: Table Of Contents
Adjusting the Image (by Software)........12 Using Different Stereo Modes ..........13 Using Audio .................13 Firmware update ...............14 4 Maintenance and Cleaning Instructions......15 5 Troubleshooting ..............16 6 Returning used electronic devices in EU countries .... 17 7 Technical Data ............... 18 VRvision User Manual... -
Page 4: Safety Instructions
If you have a history of temporary spasm, unconsciousness, or epileptic seizures from light stimulation, consult your doctor before use and do not use without his approval. If any of the following symptoms occur, if using VRvision, stop using immediately and rest: eye fatigue or irritation,... -
Page 5: General Safety Hints
Do not use VRvision at temperatures below 0°C and above +40°C. Avoid dropping or mechanical shock, as frame and displays may be deformed. Always switch off and unplug the VRvision when it will not be used. In case of damage contact your retailer. There are no user serviceable parts. -
Page 6: Description
Without a PC or external video source connected to the device there is no image visible inside the HMD ! Into the 3.5mm socket (3) earphones can be connected. There is a built-in microphone (4) on the bottom side of the case. VRvision User Manual... -
Page 7: Dvi Dongle
The DVI dongle contains the following elements: HMD cable permanently attached DVI connector, Main=Left channel (connect to graphics card) DVI socket, Aux=Right channel (connect by cable from 2nd DVI graphics card output) USB cable for power supply, audio and settings VRvision User Manual... -
Page 8: General Operating Instructions
"Fehler! Verweisquelle konnte nicht gefunden werden. Fehler! Verweisquelle konnte nicht gefunden werden." page Fehler! Textmarke nicht definiert.). device will automatically recognize the correct signal. A static image can burn into the microdisplays after an extended period of time ! VRvision User Manual... - Page 9 VRvision User Manual...
-
Page 10: Attachment And Mechanical Adjustment
3.3 Attachment and Mechanical Adjustment Putting on the HMD Put on the VRvision HMD. Place the headband around the back of your head and pull it just tight enough to make it fit safely and comfortably. On the displays inside the HMD, you can now see the pictures of your video sources. -
Page 11: Adjusting The Interpupil Distance
3.4 Adjusting the Interpupil Distance To optimize the position of the two displays, so that both images are seen as a single visual field, carefully move the oculars into the right position. Slide oculars to fit IPD (inter pupilary distance) VRvision User Manual... -
Page 12: Adjusting The Image (By Software)
3.5 Adjusting the Image (by Software) To adjust the image start the software "hmd_connection.exe" which can be downloaded from www.trivisio.com. Please install first the software according instructions before you connect the HMD with the PC using the DVI and USB-cable. -
Page 13: Using Different Stereo Modes
3.6 Using Different Stereo Modes The electronics of your VRvision device allows two different stereo modes. The electronic is automatically detecting when actice stereo signal is supplied by the graphics card. 3.7 Using Audio After connecting the USB cable to your PC, Windows will detect the built-in microphone and also the earphones as audio devices. -
Page 14: Firmware Update
During the update process never unplug the device and do not shut down the computer and do not turn off the power ! If the device fails to turn on, try to reprogram "LEFT_VGA_DVI_0x000?.hex" file, holding power-button pushed during programming process. VRvision User Manual... -
Page 15: Maintenance And Cleaning Instructions
To clean the oculars of the HMD use a dry, clean cloth. In case of damage contact your retailer. There are no user serviceable parts. Only qualified service personnel should perform any service required on this product. VRvision User Manual... -
Page 16: Troubleshooting
No image Wrong resolution or Set 800x600@60Hz frequency from grapics card No image Appliance switched Plug USB cable to off, no power connected All other problems should be performed by a trained and authorised service provider ! VRvision User Manual... -
Page 17: Returning Used Electronic Devices In Eu Countries
ElektroG (Rucknahme und Entsorgung von Elektro- Elektronikaltgeraten) european WEEE (Waste Electrical and Electronic Equipment) electronic used devices from private households can be returned free of charge. For details please contact your local distributor or directly Trivisio Prototyping GmbH (www.trivisio.com). VRvision User Manual... -
Page 18: Technical Data
Microphone integrated, 3.5mm socket for headset Cable Length 2.2m (optional 5m) Power Consumption Display 2.5W (5V, taken from USB port) Operating Temperature 0°C to +40°C Weight 210 g (without headband) Dimensions (W/H/D): 150mm x 42mm x 69mm Subject to technical modifications VRvision User Manual...
