Enablia TitanSDR Installation Manual

Hide thumbs Also See for TitanSDR:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
TitanSDR Receiver
Installation Manual
v.2.0e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TitanSDR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Enablia TitanSDR

Summary of Contents for Enablia TitanSDR

  • Page 1 TitanSDR Receiver Installation Manual v.2.0e...
  • Page 2 Enablia S.r.l. (Italy) 2014 Before using the receiver, read carefully this Manual. Correct Disposal of This Product (Waste Electrical & Electronic Equipment) The symbol of the crossed out wheelie bin indicates that in the European Union this product, and all items marked with this...

  • Page 3: Table Of Contents

    Notes on receiver connection and use ......... 25 Antenna ................25 Cooling fan ................ 25 Firewall ................25 USB Interface ..............26 License ................27 License File ................. 27 USB Dongle ................ 27 CE Conformity ..............30 Technical Specifications ............. 31 TitanSDR Receiver – Installation Manual...

  • Page 4: Overview

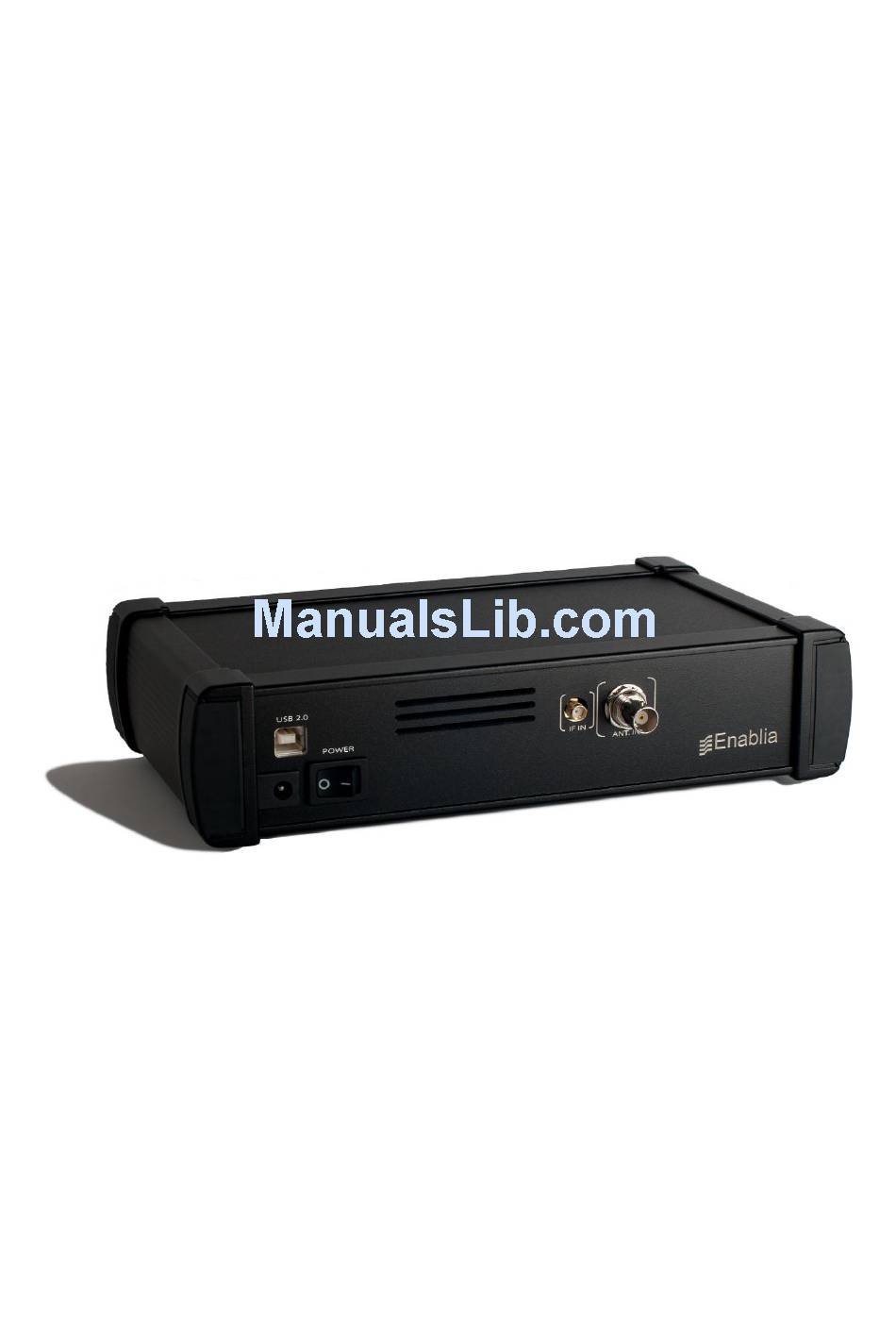

    (Figure 1). Figure 1 The rear panel (Figure 2) includes : 1. USB 2.0 port 2. Power input socket 3. On/off switch 4. SMA IF input (IF-IN) 5. BNC antenna input (ANT. IN) TitanSDR Receiver – Installation Manual...

  • Page 5: Ac/Dc Adapter

    For best performance and safety, please use only the provided 6V linear AC/DC power adapter (Figure 4). Figure 4 When the adapter is turned on by the on/off switch, the front red led turns on. TitanSDR Receiver – Installation Manual...

  • Page 6: System Requirements

    2. System Requirements Before installing the receiver, ensure that your system meets the following requirements.  CPU Dual Core 2.5 GHz or equivalent (for TitanSDR) Intel Core i5 or equivalent (for TitanSDR-Pro)  2GB RAM  150 MB of free hard disk space for software installation (extra...

  • Page 7: Installation On Windows 7

    1. Insert the installation CD-ROM in your drive and double-click on X:\TitanSDR_x.y.z_Setup.exe (where “X” is the letter representing your CD-ROM drive and “x.y.z” is the setup version). 2. Select the Setup Language and click “OK”. 3. Click “Next” to continue TitanSDR Receiver – Installation Manual...
  • Page 8 4. Confirm the proposed installation folder (for example, C:\Program Files\TitanSDR if “C:” is your main drive) by clicking “Next”. 5. Confirm the default shortcuts folder name by clicking “Next”. TitanSDR Receiver – Installation Manual...
  • Page 9 6. Check “Create a desktop icon” and click “Next”. 7. Click “Install” and wait for setup to complete. TitanSDR Receiver – Installation Manual...
  • Page 10 C:\ProgramFiles\TitanSDR\License, assuming that “C:\ProgramFiles\TitanSDR” is the installation folder). Please refer to Chapter 6 for further details on license file. 10. Plug the supplied AC/DC power adapter into a wall outlet and to the receiver power socket. Then turn on the...
  • Page 11 14. When the “Computer Management” window opens, click on “Device Manager” (located left side, under System Tools, towards the bottom of the list). TitanSDR Receiver – Installation Manual...
  • Page 12 15. Expand the “Other Devices” list, right-click on “ENABLIA DEVICE 002” and click “Properties” 16. In “Properties” window, click the “Driver” tab and then click “Update Driver” TitanSDR Receiver – Installation Manual...
  • Page 13 17. In the “Update Driver Software Window”, click “Browse my computer for driver software” 18. Click “Browse” and navigate to the folder containing the TitanSDR driver (C:\ProgramFiles\TitanSDR\Driver, assuming that “C:\ProgramFiles\TitanSDR” is the installation folder). Then click “Next”. TitanSDR Receiver – Installation Manual...
  • Page 14 19. In “Windows Security” window , click “Install this driver software anyway” 20. Allow the installation process to complete and click “Close”. TitanSDR Receiver – Installation Manual...
  • Page 15 21. Run the TitanSDR software by double clicking the icon on your desktop and wait for application to open. Configure software firewall (if present) to allow TitanSDR processes communicating through loopback address (see Chapter 5 for further details). 22. On TitanSDR application, click the “UsbConnection” button (the rightmost button of the Panoramic Scope toolbar) TitanSDR Receiver –...
  • Page 16 23. The message “Connecting to receiver” is displayed : wait for connection to complete. 24. When receiver connection succeeds, spectrum is displayed in the Panoramic Scope. TitanSDR Receiver – Installation Manual...

  • Page 17: Installation On Windows Xp

    1. Insert the installation CD-ROM in your drive and double-click on X:\TitanSDR_x.y.z_Setup.exe (where “X” is the letter representing your CD-ROM drive and “x.y.z” is the setup version). 2. Select the Setup Language and click “OK”. 3. Click “Next” to continue TitanSDR Receiver – Installation Manual...
  • Page 18 4. Confirm the proposed installation folder (for example, C:\ProgramFiles\TitanSDR if “C:” is your main drive) by clicking “Next”. 5. Confirm the default shortcuts folder by clicking “Next”. TitanSDR Receiver – Installation Manual...
  • Page 19 6. Check “Create a desktop icon” and click “Next”. 7. Click “Install” and wait for setup to complete. TitanSDR Receiver – Installation Manual...
  • Page 20 PC USB port by the provided USB cable. 12. Turn on the receiver by putting the power switch on ‘1’: the green led on the front panel will turn on. TitanSDR Receiver – Installation Manual...
  • Page 21 13. In the “Found New Hardware Wizard” select “No, not this time” (to prevent the connection to Windows Update) and click “Next” 14. Select “Install from a list or specific location (Advanced)” and click “Next” TitanSDR Receiver – Installation Manual...
  • Page 22 15. In the next dialog, tick the option “Search for the best driver in these location” and “Include this location in the search”. Click “Browse” and navigate to the folder containing the TitanSDR driver (C:\ProgramFiles\TitanSDR\Driver, assuming that “C:\ProgramFiles\TitanSDR” is the TitanSDR installation folder) and then click “Next”. TitanSDR Receiver – Installation Manual...
  • Page 23 16. Click “Continue Anyway” to bypass Windows Logo testing. 17. Allow the installation process to complete and click “Finish” 18. Run the TitanSDR software by double clicking the icon on your desktop and wait for the application to open. Configure software firewall (if present) to allow TitanSDR...
  • Page 24 (see Chapter 5 for further details). 19. On TitanSDR application, click the “UsbConnection” button (the rightmost button of the Panoramic Scope toolbar). 20. The message “Connecting to receiver” is displayed: wait for connection to complete.

  • Page 25: Notes On Receiver Connection And Use

    Do not allow any object to block the airflow through the cooling fan opening (Figure 3). Firewall TitanSDR application consists of four different running processes, communicating with each other over the loopback network interface: - TitanSDR_MMI.exe - TitanSDR_Server.exe...

  • Page 26: Usb Interface

    USB Interface Connect the TitanSDR receiver to a 480 Mbit/sec Hi-Speed USB 2.0 port of the host PC using the provided USB cable or, as an alternative, a shielded USB cable (maximum length of 1 meter) with the Hi-Speed USB certification label (Figure 5).

  • Page 27: License

    (assuming that “C:\PrograFiles\TitanSDR” TitanSDR installation folder). That license file is required to have TitanSDR application working with the receiver. If, after clicking the UsbConnection button (the rightmost button of the Panoramic Scope toolbar), the message “License file not found” pops up (Figure 6), please verify that license.bin file is in the above indicated folder.
  • Page 28 TitanSDR software in “Player Mode”, to replay previously recorded files, without connecting a receiver to the PC. Figure 7 Connect the USB Dongle to an USB port, run TitanSDR software and select Mode>Player (Figure 8). Figure 8 If the USB Dongle is correctly detected, the message “USB key found”...
  • Page 29 Dongle. In order to allow the user updating the license file for future upgrades, the dongle contains a writable storage memory: please don’t put any file on the USB Dongle. TitanSDR Receiver – Installation Manual...

  • Page 30: Ce Conformity

    7. CE Conformity Enablia S.r.l. declares that the TitanSDR receiver is in compliance with following European Community Directives:  Electromagnetic Compatibility Directive (2004/108/EC) - EN55022 - EN55024 - EN61000-3-2 - EN61000-3-3  Low Voltage Directive (2006/95/EC) - EN 60950 Documentation and test reports are available upon request.

  • Page 31: Technical Specifications

    2187.5 , 1875, 1562.5 and 1250 for station and user description 1, 2, 3 and 4 Wideband Channels, respectively A/D Conversion 16 bit, 80 Msps Image Rejection 90 dB typ. 8 (TitanSDR) or 40 (TitanSDR-Pro), Narrowband independently tunable within Channels Wideband Channels IIP3 >37 dBm...
  • Page 32 NABLIA Enablia S.r.l. Via Nicostene, 20 00124 – Rome (Italy) Tel. +39.06.7259.4065 E-Mail: enablia@enablia.com www.enablia.com...
