- Page 1 TitanSDR/TitanSDR-E/TitanSDR-AB Receiver Installation Manual v.4.0e...
- Page 2 Enablia S.r.l. (Italy) 2021 Before using the receiver, read carefully this Manual. Correct Disposal of This Product (Waste Electrical & Electronic Equipment) The symbol of the crossed out wheelie bin indicates that in the European Union this product, and all items marked with this...
-
Page 3: Table Of Contents
System Requirements ............... 5 Installation ................. 6 Notes on receiver connection and use ........9 Antenna....................... 9 Cooling fan ......................9 Firewall ........................ 9 USB Interface ....................10 License ..................11 License File ...................... 11 TitanSDR Receiver – Installation Manual... -
Page 4: Overview

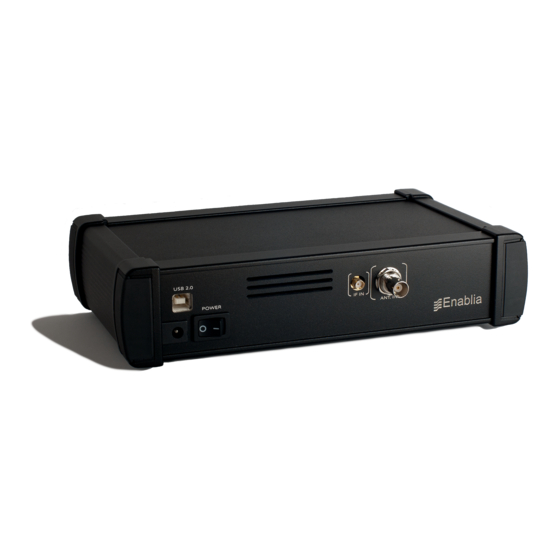

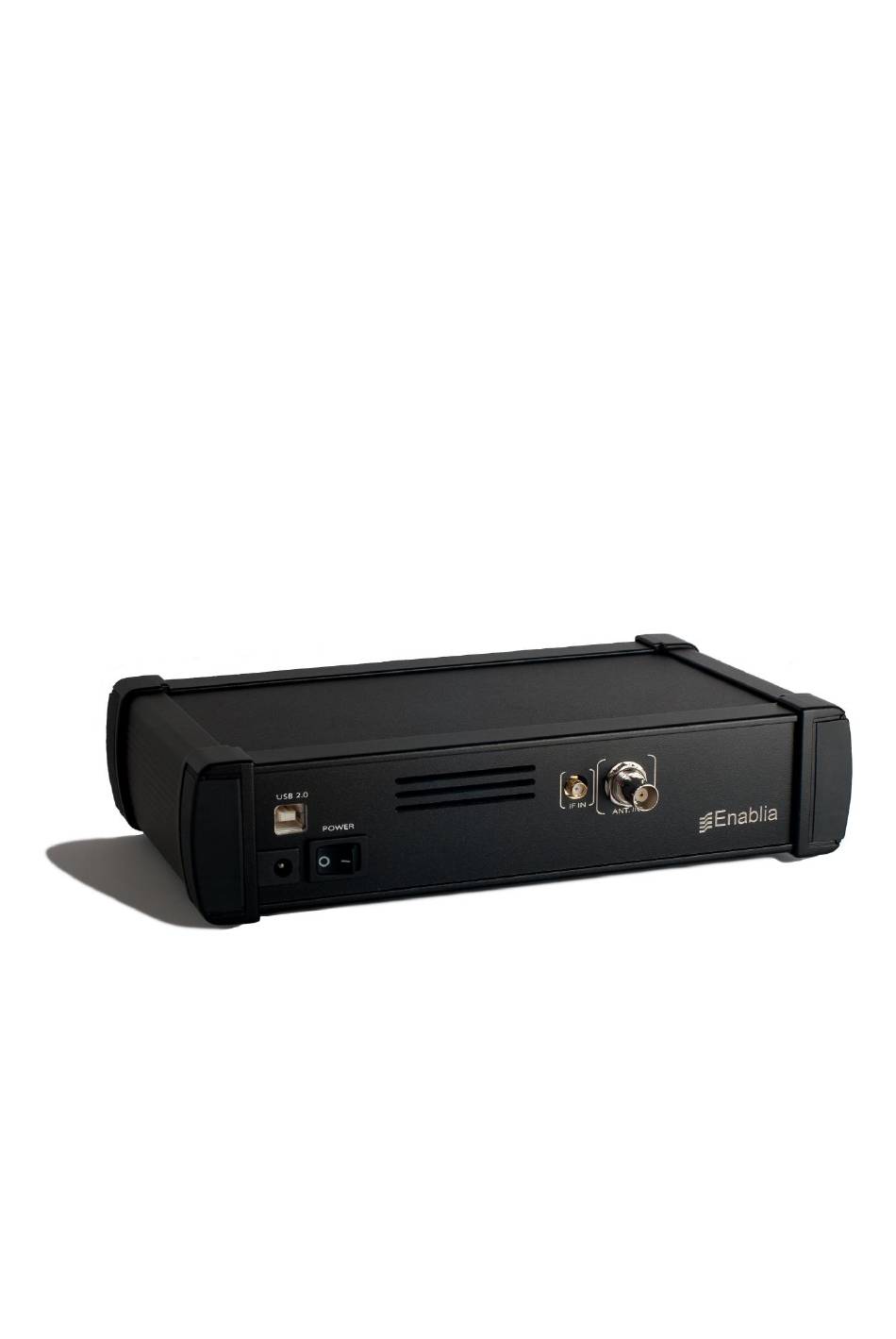

The front panel has an indicator green led: the led turns on when the receiver is switched on (Figure 2). Figure 2 The rear panel (Figure 3) includes : 1. USB 2.0 port 2. Power input socket 3. On/off switch TitanSDR Receiver – Installation Manual... -
Page 5: Ac/Dc Adapter
2. System Requirements Before installing the receiver, ensure that your system meets the following requirements. Intel Core i5 (TitanSDR) – Core i7 (TitanSDR-E/TitanSDR-AB) or equivalent 4 GB RAM (TitanSDR) – 16 GB RAM (TitanSDR-E/TitanSDR-AB) 150 MB of free hard disk space for software installation (extra... -
Page 6: Installation
3. Installation The following installation procedure applies to all versions of TitanSDR in Windows 7 and Windows 10. The default installation folder varies depending on the TitanSDR version. Please follow the steps below leaving the receiver disconnected from the PC, unless otherwise specified (connect it only when requested). - Page 7 (please refer to Chapter 4 for further details on receiver connections). 8. Run the TitanSDR software by double clicking the icon on your desktop and wait for application to open. Please note that TitanSDR desktop icon varies depending on the version of TitanSDR: if there are multiple versions, click on the currently version you just installed.
- Page 8 On TitanSDR application, click the “UsbConnection” button (the rightmost button of the Panoramic Scope toolbar) 10. The message “Connecting to receiver” is displayed: wait for connection to complete. 11. When receiver connection succeeds, spectrum is displayed in the Panoramic Scope.
-
Page 9: Notes On Receiver Connection And Use
Do not allow any object to block the airflow through the cooling fan opening on the bottom panel. Firewall TitanSDR application consists of four different running processes, communicating with each other over the loopback network interface: - TitanSDR_MMI.exe... -
Page 10: Usb Interface
USB Interface Connect the TitanSDR receiver to a 480 Mbit/sec Hi-Speed USB 2.0 port of the host PC using the provided USB cable or, as an alternative, a shielded USB cable (maximum length of 1 meter) with the Hi-Speed USB certification label (Figure 5). -
Page 11: License
E-mail after package delivery or included in the folder “License” of the provided USB pen drive. The license file is required to have TitanSDR application working with the receiver. Copy license.bin file to the TitanSDR installation folder C:\ProgramFiles(x86)\TitanSDR\License. - Page 12 NABLIA Enablia Sr.l. Via Arturo Viligiardi, 25 00125 – Rome (Italy) enablia@enablia.com E-Mail: www.enablia.com TitanSDR Receiver – Installation Manual...
