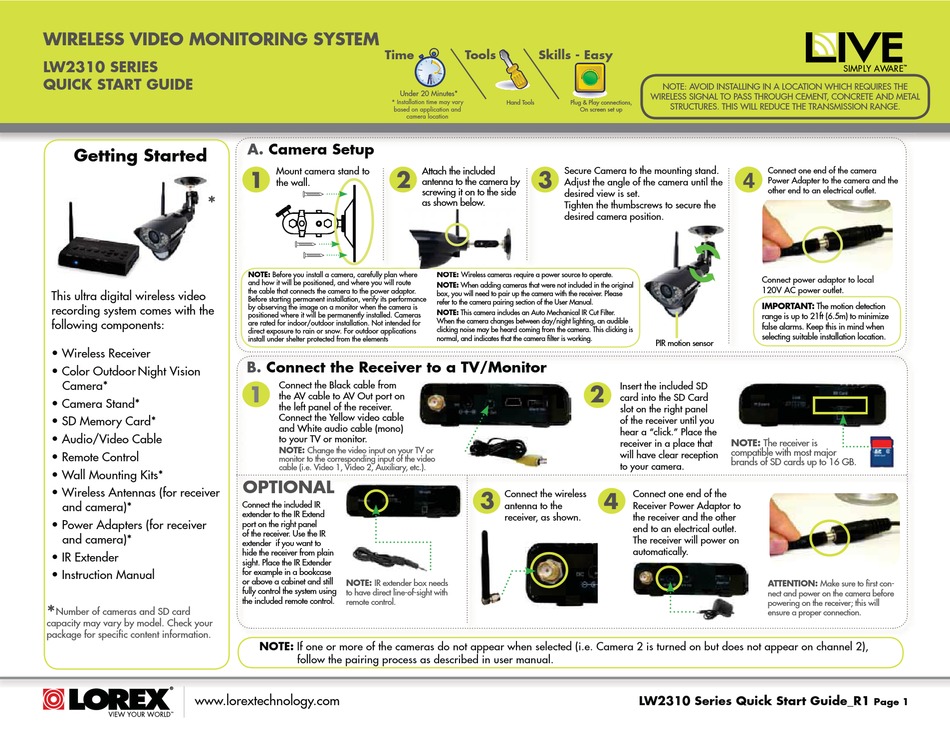

Lorex LIVE LW2310 Series Quick Start Manual

WIRELESS VIDEO MONITORING SYSTEM
LW2310 SERIES

QUICK START GUIDE

Getting Started

*
This ultra digital wireless video
recording system comes with the
following components:
• Wireless Receiver
• Color Outdoor Night Vision
Camera*
• Camera Stand*
• SD Memory Card*
• Audio/Video Cable
• Remote Control
• Wall Mounting Kits*
• Wireless Antennas (for receiver
and camera)*
• Power Adapters (for receiver
and camera)*
• IR Extender
• Instruction Manual
*
Number of cameras and SD card
capacity may vary by model. Check your
package for specific content information.
www.lorextechnology.com
Time
Under 20 Minutes*
* Installation time may vary
based on application and
camera location
A. Camera Setup
Mount camera stand to
1 2
the wall.
NOTE: Before you install a camera, carefully plan where where
and how it will be positioned, and where you will route
the cable that connects the camera to the power adaptor.
Before starting permanent installation, verify its performance
by observing the image on a monitor when the camera is
positioned where it will be permanently installed. Cameras
are rated for indoor/outdoor installation. Not intended for
direct exposure to rain or snow. For outdoor applications
install under shelter protected from the elements
B. Connect the Receiver to a TV/Monitor h
Connect the Black cable from
1
the AV cable to AV Out port on
the left panel of the receiver.
Connect the Yellow video cable
and White audio cable (mono)
to your TV or monitor.
NOTE: Change the video input on your TV or
monitor to the corresponding input of the video
cable (i.e. Video 1, Video 2, Auxiliary, etc.). ( , , y, )
OPTIONAL OPTIONAL
Connect the included IR
extender to the IR Extend
port on the right panel
of the receiver. Use the IR
extender if you want to
hide the receiver from plain
sight. Place the IR Extender
for example in a bookcase
or above a cabinet and still
NOTE: IR extender box needs
fully control the system using
to have direct line-of-sight with
the included remote control.
remote control.
NOTE: If one or more of the cameras do not appear when selected (i.e. Camera 2 is turned on but does not appear on channel 2),
follow the pairing process as described in user manual.
Tools Skills - Easy
Hand Tools Plug & Play connections,
On screen set up
Secure Camera to the mounting stand.
Attach the included
3
antenna to the camera by Adjust the angle of the camera until the
screwing it on to the side
desired view is set.
as shown below. as shown below.
Tighten the thumbscrews to secure the
desired camera position.
NOTE: Wireless cameras require a power source to operate. NOTE: Wireless cameras r
NOTE: When adding cameras that were not included in the original
box, you will need to pair up the camera with the receiver. Please
refer to the camera pairing section of the User Manual.
NOTE: This camera includes an Auto Mechanical IR Cut Filter.
When the camera changes between day/night lighting, an audible
clicking noise may be heard coming from the camera. This clicking is
normal, and indicates that the camera filter is working.
/
2
Connect the wireless
3
antenna to the
receiver, as shown.
NOTE: AVOID INSTALLING IN A LOCATION WHICH REQUIRES THE
WIRELESS SIGNAL TO PASS THROUGH CEMENT, CONCRETE AND METAL
STRUCTURES. THIS WILL REDUCE THE TRANSMISSION RANGE.
Connect one end of the camera
4
Power Adapter to the camera and the
other end to an electrical outlet.
osition.
Connect power adaptor to local
120V AC power outlet.
IMPORTANT: The motion detection
range is up to 21ft (6.5m) to minimize
false alarms. Keep this in mind when
selecting suitable installation location.
PIR motion sensor
Insert the included SD
card into the SD Card
slot on the right panel
of the receiver until you
hear a "click." Place the
NOTE: The receiver is
receiver in a place that
compatible with most major
will have clear reception
brands of SD cards up to 16 GB.
to your camera. y
Connect one end of the
4
Receiver Power Adaptor to
the receiver and the other
end to an electrical outlet.
The receiver will power on
automatically.
ATTENTION: Make sure to first con-
nect and power on the camera before
powering on the receiver; this will
ensure a proper connection.
LW2310 Series Quick Start Guide_R1
SIMPLY AWARE ™
Page 1
