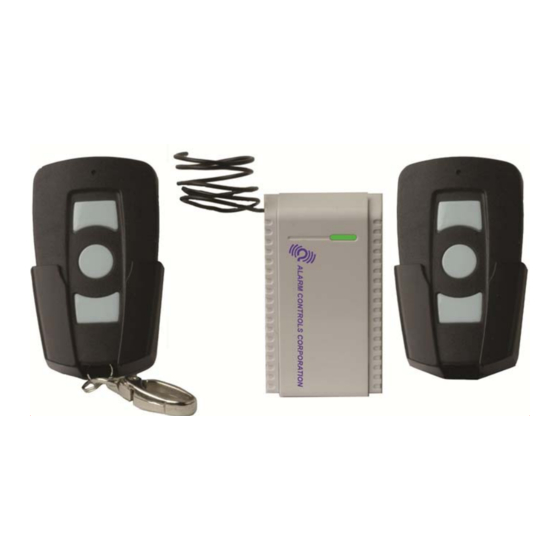

WIRELESS TRANSMITTER
RECEIVER OPERATES ON 12 OR 24 VOLTS AC OR DC. CURRENT DRAW IS 50 mA MAX.
S.P.D.T. RELAY WITH 1 AMPERE @ 30 VDC OR 120 VAC CONTACTS
RECEIVER HAS A BUILT-IN FIVE SECOND DELAY ON RELEASE
WORKING FREQUENCY IS 433.92 MHz
ROLLING CODE WITH ONE BILLION COMBINATIONS
RECEIVER OPERATING TEMPERATURE RANGE IS –20°C TO +60°C
RECEIVER WILL ACCEPT UP TO 30 TRANSMITTERS
RECEIVER HAS A SMALL SIZE (2.5"L x 1.25"W x 0.75"D)
RECIEVER IS IN AN ATTRACTIVE OFF-WHITE CASE
RECEIVER SCREW TERMINALS ARE HIDDEN BY COVER
BI-COLOR LED ON RECEIVER INDICATES RELAY STATUS
TRANSMITTER TO RECEIVER RANGE IS A MAXIMUM OF 300 FEET
TWO TRANSMITTERS ARE SUPPLIED. ONE HAS A KEY CHAIN
A UNIQUE TRANSMITTER HOLDER CAN BE MOUNTED UNDER A DESK OR ON THE WALL
ADDITIONAL TRANSMITTERS ARE AVAILABLE (PART NUMBER RT-1T).
MODEL RT-1
AND RECEIVER
Alarm Controls Corporation
19 Brandywine Drive
Deer Park, New York 11729
(800) 645-5538
www.alarmcontrols.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RT-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Alarm Controls Corporation RT-1

Summary of Contents for Alarm Controls Corporation RT-1

  • Page 1 MODEL RT-1 WIRELESS TRANSMITTER AND RECEIVER RECEIVER OPERATES ON 12 OR 24 VOLTS AC OR DC. CURRENT DRAW IS 50 mA MAX. S.P.D.T. RELAY WITH 1 AMPERE @ 30 VDC OR 120 VAC CONTACTS RECEIVER HAS A BUILT-IN FIVE SECOND DELAY ON RELEASE WORKING FREQUENCY IS 433.92 MHz...
  • Page 2 Green = Power On Red = Relay Activated (Unit shown with cover removed) (Unit shown with cover removed) The RT-1 Receiver is packaged with a set of paired Transmitters. To pair additional Transmitters with the Receiver - Learning Button 1. Press the Learning Button on the Receiver. The LED on the Receiver will turn from green to red.
  • Page 3 INSTRUCTIONS FOR CONVERTING MODEL RT-1 FROM MOMENTARY TO LATCHING OPERATION Open Receiver case. Pry open case where shown Using a knife blade. Locate the Jumper installed at J2 and use it to short together the two pins. Transmitter replacement battery type is CR2016. Each Transmitter requires 2 batteries.
  • Page 4 INSTRUCTIONS FOR CONVERTING MODEL RT-1 FROM MOMENTARY TO LATCHING OPERATION Open Receiver case. Pry open case where shown Using a knife blade. Locate the slide switch and move it into the “Latch” position Transmitter replacement battery type is CR2016. Each Transmitter requires 2 batteries.
