Alarm Controls Corporation RT-3 User Manual

The RT-3 is packaged with three Receivers and one Transmitter.
To pair a Transmitter with a Receiver -
1. Power the receiver. Press the Learning Button on the Receiver. The end of a ball point pin with the ball retracted works
as a good tool for this. The LED on the Receiver will turn from green to red.
2. Press the A, B or C button on the Transmitter two times. The LED on the Receiver will flash four times indicating that the
Transmitter has been paired to the Receiver. If the LED on the Receiver flashes once and changes to green, pairing has
failed. The Transmitter button must be pressed within 8 seconds or the Receiver will exit the learning mode. You can now
pair two other receivers to the remaining two buttons on your transmitter.
3. Any transmitter button can be paired with any receiver. A transmitter cannot have two buttons paired to one receiver. If
you attempt to program the same receiver to a second button on the transmitter it will program to the new button and be
automatically removed from the original button.
4. Up to thirty transmitters can operate any receiver. Just repeat step 1. above with each transmitter so that the receiver can
learn each new transmitter.
To remove all learned Transmitters from the Receiver -
1. Press and hold the Learning Button on the Receiver. The LED on the Receiver will turn from green to red and then back to
green.
2. Release the Learning Button as soon as the LED turns back to green and the LED will quickly flash red and turn green
again. All transmitters have now been removed and it is ready to learn a new transmitter.
Transmitter replacement battery type is CR2016. Each Transmitter requires 2 batteries.
MODEL RT-3
RECEIVER/TRANSMITTER
USER GUIDE

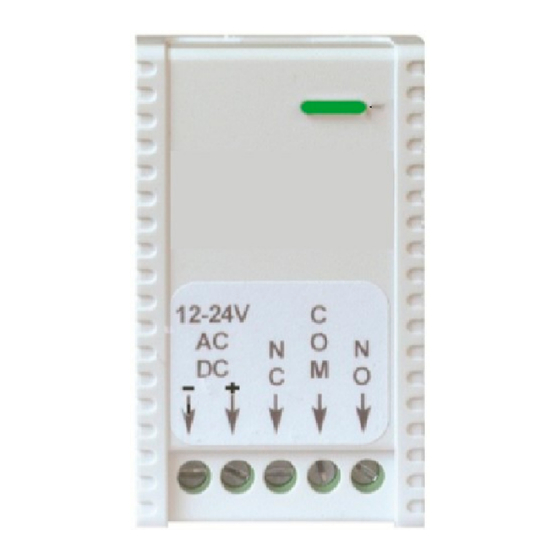

LED Indicator

Green = Power On
(Unit shown with cover removed)
Learning
Button
Alarm Controls
Phoenix, AZ 85044
(800) 645-5538
www.alarmcontrols.com
LED Indicator
Red = Relay Activated
(Unit shown with cover removed)
THREE BUTTON
TRANSMITTER
BUTTON A
BUTTON B
BUTTON C
