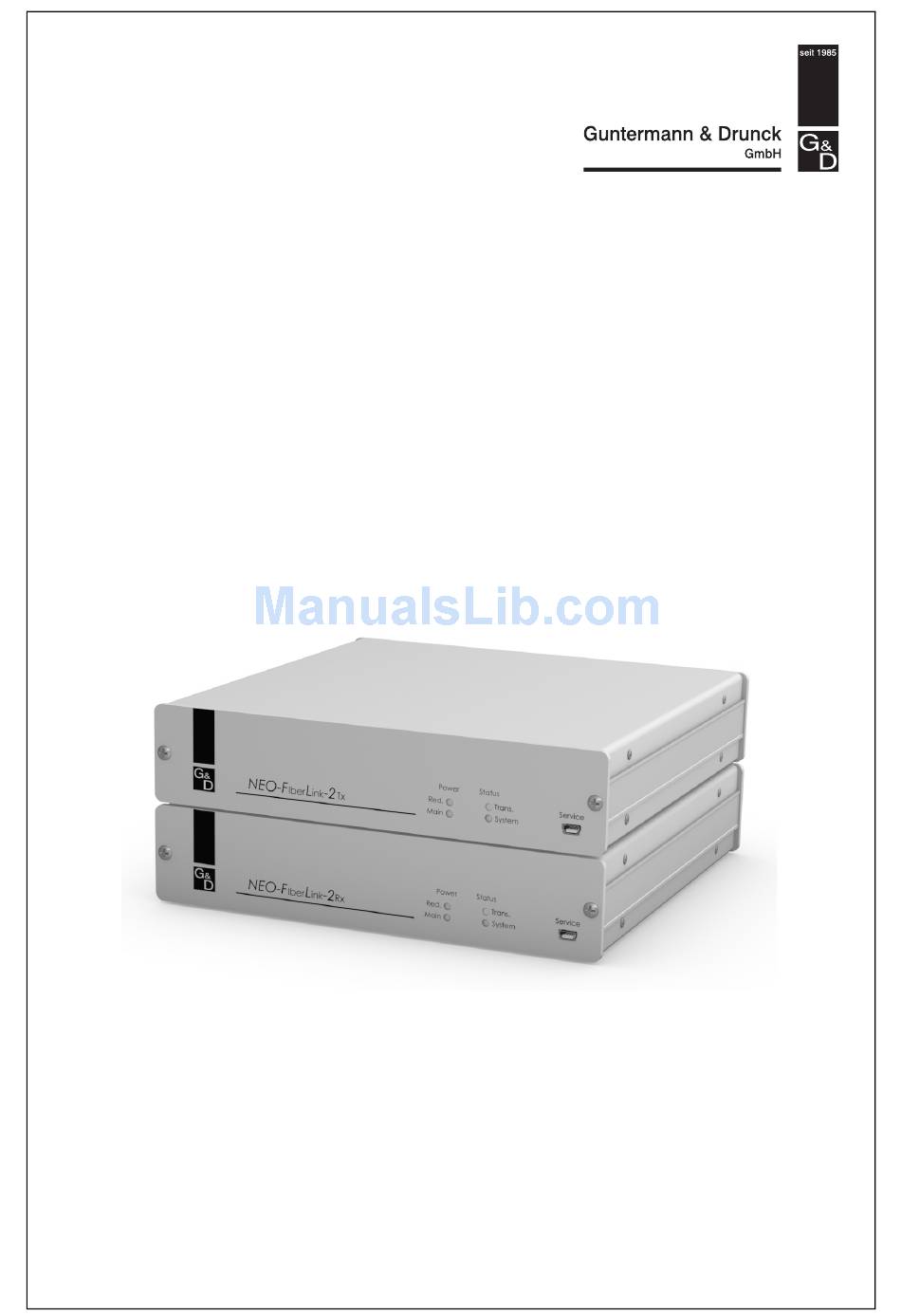

- Page 1 NEO-FiberLink-2 Installation Guide...
-
Page 2: About This Manual
© Guntermann & Drunck GmbH 2010. All rights reserved. Version 1.00 – 20/12/2010 Firmware: 1.0.000 (01893) Guntermann & Drunck GmbH Dortmunder Str. 4a 57234 Wilnsdorf Germany Phone +49 (0) 2739 8901-100 +49 (0) 2739 8901-120 http://www.GDsys.de sales@GDsys.de i · NEO-FiberLink-2... -
Page 3: Table Of Contents
Start-up ......................6 Status displays ....................7 Transmitter module (NEO-FiberLink-2Tx) ............7 Front panel ....................7 Back panel ....................8 Receiver module (NEO-FiberLink-2Rx) ............. 9 Front panel ....................9 Back panel ....................10 Technical data ....................11 NEO-FiberLink-2 · 1... -
Page 4: Safety Guidelines
Operate this device with the provided G&D power pack or with the power packs listed in the operating manual. ! Operate the device only in the intended area of application This device has been designed for indoor use. Do not expose it to extreme cold, heat or humidity. 1 · NEO-FiberLink-2... - Page 5 The guarantee of complying with all relevant instructions can only be given by applying original components. The devices must therefore ony be operated G&D certified transmission modules. NEO-FiberLink-2 · 2...
-
Page 6: Introduction
1 × receiver module (NEO-FiberLink-2Rx) 2 × power cable (PowerCable-2 Standard) 1 × service cable (USB-Service-2) 1 × manual NOTE: The package contents of device variants for rack mounting also contain a rack mount set. 3 · NEO-FiberLink-2... - Page 7 Package contents Master Slave NEO-FiberLink-2 · 4...
-
Page 8: Installation
If necessary, connect the connection cable of the optional power pack to Red. Power: this interface. Then connect a power cable to the power pack and a power outlet. Main Power: Insert the supplied power cable and connect it to a power outlet. 5 · NEO-FiberLink-2... -
Page 9: Connecting The Receiver Module (Neo-Fiberlink-2Rx)
Then connect a power cable to the power pack and a power outlet. Main Power: Insert the supplied power cable and connect it to a power outlet. Start-up Turn on the master and the slave matrix switch as well as the transceiver and receiver module of the NEO-FiberLink series. NEO-FiberLink-2 · 6... -
Page 10: Status Displays
Status Trans. Working data connection between transmitter and receiver module. Interrupted data connection between transmitter and receiver module System blinking The transceiver module is ready for operation. The transceiver module is turned off. 7 · NEO-FiberLink-2... -
Page 11: Back Panel
Master and slave matrix switch are connected. blinking Working data connection between transmitter and receiver module. Master or slave matrix switch are not connected. Working data connection between transmitter and receiver module. Neither a master nor a slave matrix switch is connected. NEO-FiberLink-2 · 8... -
Page 12: Receiver Module (Neo-Fiberlink-2Rx)
Status Trans. Working data connection between transmitter and receiver module. Interrupted data connection between transmitter and receiver module System blinking The transceiver module is ready for operation. The transceiver module is turned off. 9 · NEO-FiberLink-2... -
Page 13: Back Panel
Working data connection between transmitter and receiver module. There is only one master matrix switch connected or neither a master nor a slave matrix switch is connected. The data connection between transmitter and receiver module was interrupted. NEO-FiberLink-2 · 10... -
Page 14: Technical Data
2 × RJ45 interface matrix switch: Connection of the 1 × LC-Duplex socket transmitter module: Power consumption Main power supply: 100 - 240 VAC/60 - 50 Hz; 0,3 - 0,2 A Redundant power supply: 12 VDC; 1,1 A 11 · NEO-FiberLink-2... - Page 15 Notes NEO-FiberLink-2 · 12...
