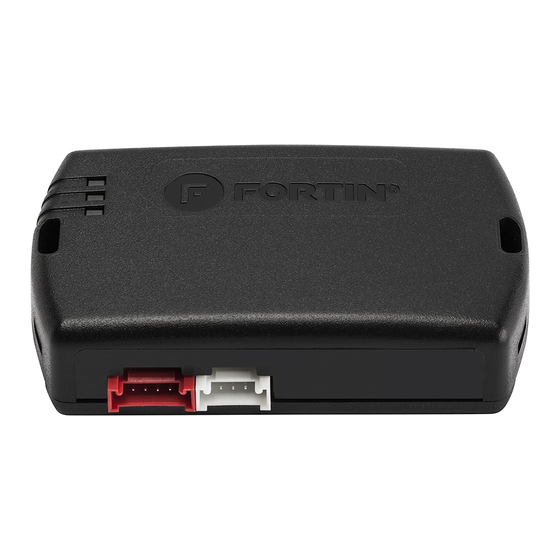

DATA KEY BYPASS MODULE
FOR REMOTE CAR STARTER
MODULE DE CONTOURNEMENT
DE CLÉ EN DATA
POUR DÉMARREUR À DISTANCE
HARDWARE VERSION
HARDWARE VERSION : 3
FIRMWARE VERSION : 4.0+
Date: xx-xx
EVO
INTERFACE MODULE
VERSION DU MATÉRIEL
PATENTS PENDING US: 2007-228827-A1
Made in Canada
www.fortinbypass.com
Service No :
000 102 04 2536
THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE
CE MANUEL PEUT FAIRE L'OBJET DE CHANGEMENTS SANS PRÉAVIS
HARDWARE VERSION
FIRMWARE VERSION
EVO-RIDE
INTERFACE MODULE
PATENTS PENDING US: 2007-228827-A1
Made in Canada
www.fortinbypass.com
Service No :
000 102 04 2536
Module label | Étiquette sur le module
Copyright © 2006-2012, FORTIN AUTO RADIO INC
TECH SUPPORT
Tél: 514-255-HELP (4357)
1-877-336-7797
INSTALLATION GUIDE
Rev. 20121204
REV.: 20150317
3
THIS MANUAL REQUIRES EVO-RIDE HARDWARE 3
Minimum
Notice:
Updated Firmware and
Updated firmware and installation guides are posted on our web
Date: xx-xx
site on a regular basis. We recommend that you update this module to
the latest firmware and download the latest installation guide(s) prior
to the installation of this product.
Des mises à jour du Firmware (microprogramme) et des
guides d'installation sont mis en ligne régulièrement. Vérifiez que
vous avez bien la dernière version logiciel et le dernier guide
d'installation avant l'installation de ce produit.
CE MANUEL REQUIÈRE EVO-RIDE HARDWARE 3
ALL RIGHTS RESERVED PATENT PENDING
www.fortinbypass.com
WEB UPDATE | MISE À JOUR INTERNET
Installation Guides
U.S. Patent No. 7,647,147
Canadian Patent No. 2,568,114
Brevet américain no. 7,647,147
Brevet canadien no. 2,568,114
Copyright © 2010,
FORTIN ELECTRONIC SYSTEMS
ALL RIGHTS RESERVED
Page 1 / 12
Advertisement
Related Manuals for Fortin Evo Ride
Summary of Contents for Fortin Evo Ride
- Page 1 Module label | Étiquette sur le module d'installation avant l'installation de ce produit. Copyright © 2006-2012, FORTIN AUTO RADIO INC ALL RIGHTS RESERVED PATENT PENDING U.S. Patent No. 7,647,147 Canadian Patent No.
- Page 2 ALL RIGHTS RESERVED THIS MANUAL IS SUBJECT TO CHANGE Blue | Bleu WITHOUT NOTICE Yellow | Jaune CE MANUEL PEUT FAIRE L'OBJET DE Red | Rouge CHANGEMENTS SANS PRÉAVIS Copyright © 2006-2012, FORTIN AUTO RADIO INC ALL RIGHTS RESERVED PATENT PENDING...
-
Page 3: Installation Procedure
à distance ou compatible with the Fortin Data-link following connections. d ' a l a r m e , e f f e c t u e z l e s protocol. - Page 4 Page 4 / 20 THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE RIDE VEHICLE FIT GUIDE | GUIDE DES VÉHICULES VEHICLE | YEARS | VEHICLE | YEARS | VEHICULES ANNÉES VEHICULES ANNÉES ACURA F250 / F350 / 40-bit 2007-2010 2A (P.7) 2 (P.16) F450 1998-2003...
- Page 5 Page 5 / 20 THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE RIDE VEHICLE FIT GUIDE | GUIDE DES VÉHICULES VEHICLE | YEARS | VEHICLE | YEARS | VEHICULES ANNÉES VEHICULES ANNÉES S2000 2000-2003 8 (P.10) 5A (P.18) LX 470 1998-2002 6 (P.9) 3 (P.17)
- Page 6 Page 6 / 20 THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE RIDE VEHICLE FIT GUIDE | GUIDE DES VÉHICULES VEHICLE | YEARS | VEHICLE | YEARS | VEHICULES ANNÉES VEHICULES ANNÉES Mariner 40-bit 2005-2007 2C (P.7) 2 (P.16) Corolla 2005-2010 1 (P.6) 3 (P.17)
- Page 7 Page 7 / 20 THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE RIDE CONNECTION CONNECTION 1 GO PROGRAM: 3 TOYOTA / LEXUS Purple/White RX (Data IN) Yellow/Black TX (Data OUT) Blue (-) While running Key Sense: Green Next to the Key Sense White/Black Yellow...
- Page 8 Page 8 / 20 THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE RIDE CONNECTION 4 GO PROGRAM: 4 SUGGESTED INSTALLATION : TOYOTA / LEXUS SMART KEY Firmware version 2.01+ required | Version logicielle 2.01+ requise Components required | Composantes requises: Remote Starter / Alarm 2x Diodes 1 Amp | Diodes 1Amp...
- Page 9 Page 9 / 20 THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE RIDE CONNECTION 5 GO PROGRAM: 5E CHEVROLET / OLDSMOBILE / PONTIAC Purple/White N.C. Yellow/Black Data Blue (-) While running Green N.C. Yellow Ignition White N.C. 6-pin Grey connector White/Red White/Blue Data Fuel...
- Page 10 Page 10 / 20 THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE RIDE CONNECTION 7 GO PROGRAM: 5A ACURA / HONDA Data Security Light Ignition Data Security Light Ignition Honda Acura Pin 2 Pin 5 Pin 6 Pin2 Pin 5 Pin 6 Black/Yellow Accord...
- Page 11 Page 11 / 20 THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE RIDE CONNECTION 10 GO PROGRAM: 5A ACURA / HONDA HONDA CRV 2014: Firmware version 0.16 required | Version logicielle 0.16 requise Purple/White Data Data Pin6 Light Green | Vert Pâle CRV : Yellow | Jaune Yellow/Black N.C.
-
Page 12: Pin Connector
Page 12 / 20 THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE RIDE CONNECTION 14 GO PROGRAM: 5B HYUNDAI TIBURON V6 Purple/White Data HYUNDAI Yellow/Black N.C. RELAY Blue (-) While running SECTION Blue/Orange | Bleu/Orange Conn Green Conn N.C. Yellow Ignition 9 10 Conn... - Page 13 Page 13 / 20 THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE RIDE CONNECTION 17 GO PROGRAM: 3 TOYOTA / SCION G STAMPED KEY Photos with each connectors location are Connector available in the vehicle specific installation Back view guides at www.fortinbypass.com. onnecteurs Photos des connecteurs et des locations vue de dos...
- Page 14 Page 14 / 20 THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE RIDE CONNECTION 19 GO PROGRAM: 5D MAZDA MIATA / MPV Ignition Pin 7 MAZDA Data Pin 5 MPV 2000-2003 Blue/White Black/White MPV 2004-2006 Blue/White Black/White Miata 2001-2004 Red/Black Black/Whie Immobilizer module: Purple/White...
- Page 15 Page 15 / 20 THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE RIDE PROGRAM. 1 FORD / JAGUAR / MAZDA / LINCOLN / MERCURY 1 key required 1 clé requise Remove all keys from Vehicle equipped Keep all cards at least 3 meters (10 feet) away 10’...
- Page 16 Page 16 / 20 THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE RIDE PROGRAM. 2 PROGRAM. 2 KEY COPY | COPIE DE LA CLÉ DU VÉHICULE PROGRAM. 2 FORD / JAGUAR / MAZDA / LINCOLN / MERCURY FORD / MAZDA / JAGUAR / LINCOLN / MERCURY Before programming the EVO-RIDE | Avant de programmer le EVO-RIDE The first key that is inserted during programming will be the key which is copied.
- Page 17 Page 17 / 20 THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE RIDE PROGRAM. 3 TOYOTA / LEXUS Press and hold Insert the 6 Insert the 4 Pin The RED Release the the programming Pin and 3 Pin (Data-Link) LED turns programming button: connector.
- Page 18 Page 18 / 20 THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE RIDE PROGRAM. 5 ACURA / HONDA / CHEVROLET / HYUNDAI / KIA / PONTIAC / SUZUKI / NISSAN / INFINITI / MAZDA Press and hold Insert the 6 Insert the 4 Pin The RED Release the...
- Page 19 Page 19 / 20 THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE RIDE PROGRAM. 6 SCAN TOOL REQUIRED | SCAN TOOL REQUIS F F ORD / MAZDA Or | Ou Vehicle equipped Mazda with SMART KEY Véhicule Mazda équipé d'une clé INTELLIGENTE 10’...
-
Page 20: Technical Support Information
DATA KEY BYPASS MODULE FOR REMOTE CAR STARTER MODULE DE CONTOURNEMENT DE CLÉ EN DATA POUR DÉMARREUR À DISTANCE HARDWARE VERSION VERSION DU MATÉRIEL THIS MANUAL REQUIRES EVO-RIDE HARDWARE 3 HARDWARE VERSION : 3 FIRMWARE VERSION : 4.0+ Date: xx-xx INTERFACE MODULE PATENTS PENDING US: 2007-228827-A1 CE MANUEL REQUIÈRE EVO-RIDE HARDWARE 3...
