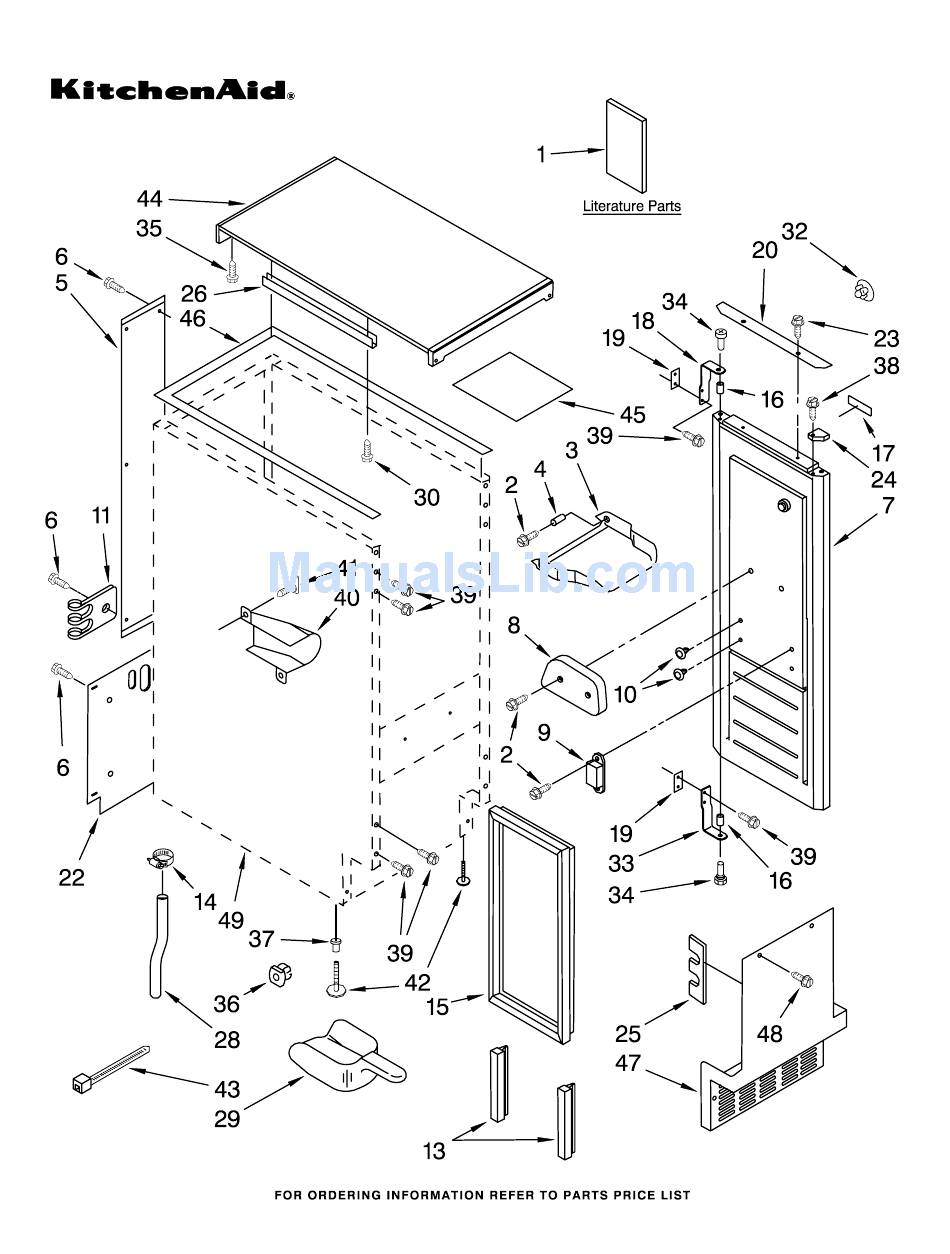

CABINET LINER AND DOOR PARTS
ICE CUBE
For Models: KUIS15NRTW0, KUIS15NRTT0, KUIS15NRTBO, KUIS15NRTS0
MAKER
(White)
(Biscuit)
(Black)
(Stainless Steel)
5−09 Litho In U.S.A. (rrm) (eeb)
Part No. W10128528 Rev.A
1
Previous page
Next page

Advertisement

Table of Contents

   Also See for KitchenAid KUIS15NRTS0

KitchenAid KUIC15PRTS1 Use & Care Manual
KitchenAid KUIC15PRTS1 Use & Care Manual 28 pages

   Related Manuals for KitchenAid KUIS15NRTS0

   Summary of Contents for KitchenAid KUIS15NRTS0

  • Page 1 CABINET LINER AND DOOR PARTS ICE CUBE For Models: KUIS15NRTW0, KUIS15NRTT0, KUIS15NRTBO, KUIS15NRTS0 MAKER (White) (Biscuit) (Black) (Stainless Steel) 5−09 Litho In U.S.A. (rrm) (eeb) Part No. W10128528 Rev.A...
  • Page 2 CABINET LINER AND DOOR PARTS For Models: KUIS15NRTW0, KUIS15NRTT0, KUIS15NRTBO, KUIS15NRTS0 Illus. Part DESCRIPTION Literature Parts 2313814 Use & Care Guide 2324311 Service & Wiring Sheet 3400886 Screw 2185742 Bin, Door 2185678 Spacer 2217394 Cover, Wiring 489442 Screw Door 2932803W White...
  • Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS15NRTW0, KUIS15NRTT0, KUIS15NRTBO, KUIS15NRTS0 (White) (Biscuit) (Black) (Stainless Steel) W10128528...
  • Page 4 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS15NRTW0, KUIS15NRTT0, KUIS15NRTBO, KUIS15NRTS0 (White) (Biscuit) (Black) Illus. Part DESCRIPTION 2313741 Valve, Complete Water 2217286 Tube, Plastic 488208 Screw 2185523 Dispenser, Water W10218037 Evaporator 2313705 Pump, Drain 2313851 Tube, Reservoir Pump...
  • Page 5 For Models: KUIS15NRTW0, KUIS15NRTT0, KUIS15NRTBO, KUIS15NRTS0 W10128528 PUMP PARTS (White) (Biscuit) (Black) Illus. Part DESCRIPTION 2313628 Pump−Recirculating 3400884 Screw 8−18 X 5/8 2185677 Cover, Pump 2313844 Bracket, Connector Assembly 2313627 Bracket−Pump 2313643 Sensor−Motor 2324307 Clip−Retainer (3) 2310092 Wiring Harness Main To Pump...

  • Page 6: Control Panel Parts

    CONTROL PANEL PARTS For Models: KUIS15NRTW0, KUIS15NRTT0, KUIS15NRTBO, KUIS15NRTS0 (White) (Biscuit) Illus. Part 2185738 Box, Control 2310139 Transformer 2304122 Assembly, Switch 2313693 Overlay 2321774 Control Board 2149705 Switch, Plunger 745362 Bulb 2313633 Thermostat, Bin 2185825 Clamp 3400884 Screw 3400850 Screw...

  • Page 7: Unit Parts

    UNIT PARTS For Models: KUIS15NRTW0, KUIS15NRTT0, KUIS15NRTBO, KUIS15NRTS0 (White) (Biscuit) (Black) (Stainless Steel) W10128528...
  • Page 8 For Models: KUIS15NRTW0, KUIS15NRTT0, KUIS15NRTBO, KUIS15NRTS0 Illus. Part DESCRIPTION 2185532 Bracket, Fan Mtg. 2185675 Pad, Foam 2188935 Blade, Fan 2315558 Motor & Mounting Plate Assembly 2310125 Wiring Harness, Complete Unit (Includes Power Cord) 304392 Screw 2313858 Compressor (Includes Illus. 11,18, 20,21 &...
  • Page 9 OPTIONAL PARTS (NOT INCLUDED) For Models: KUIS15NRTW0, KUIS15NRTT0, KUIS15NRTBO, KUIS15NRTS0 W10128528 (White) (Biscuit) (Black) Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 8171307 Cleaner, Icemaker 503695 Sealer, Cork (1/4 Pound) 797403 Cement, Insulation (1 Oz.) 505587 Sealer, Mastic (1 Qt.)

This manual is also suitable for:

Kuis15nrtboKuis15nrtt0Kuis15nrtw0Kuis15nrts - 15" 50 lb. icemaker
