Summary of Contents for Roto Brute MEGABRUTE RB65

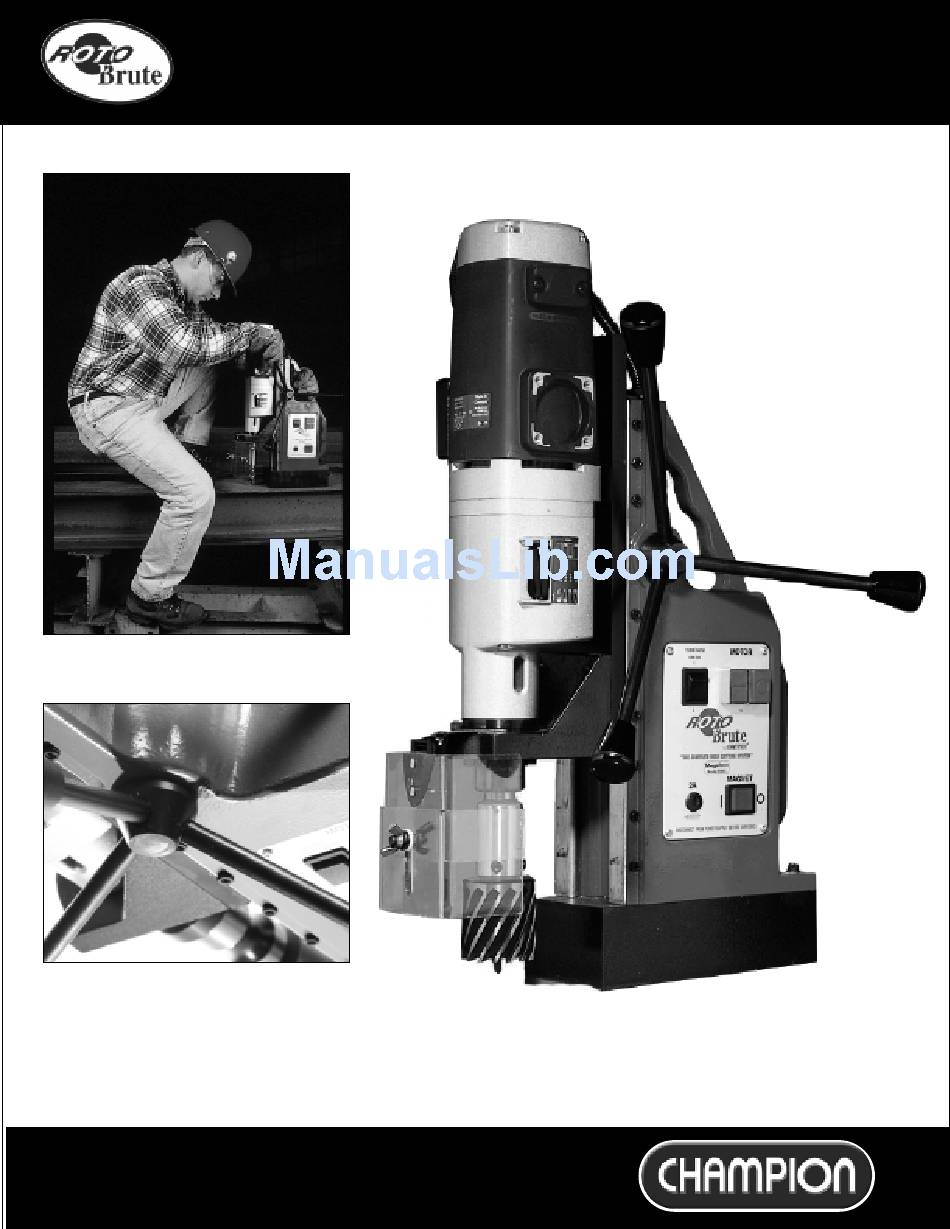

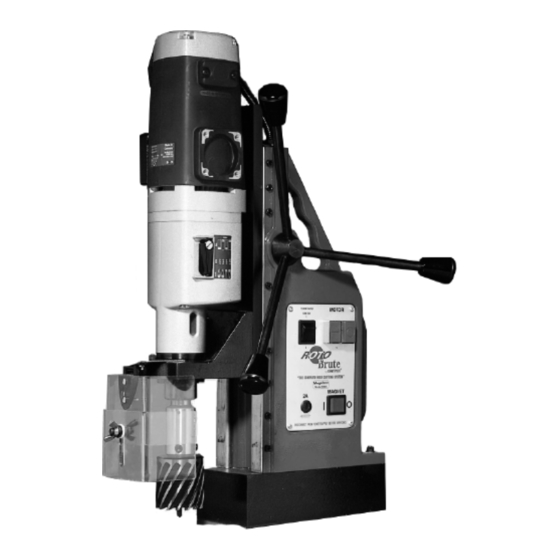

- Page 1 RB65 MEGABRUTE MAGNETIC DRILL PRESS SAFETY / USAGE GUIDELINES PARTS & SCHEMATICS...
- Page 2 Be sure to read and follow these important safety instructions: Use of unauthorized parts or failure to follow maintenance instructions may create a risk of When using your RB65 MegaBrute, be sure to follow these important safety precautions: electric shock or injury.
-
Page 3: Operating Instructions
• Loosen screw from underneath the arbor support (front/center). Align the bracket slot 2. To remove handles, turn counter-clockwise. with the screw, and tighten screw until safety guard locks into place. • To remove safety guard, loosen screw and remove safety guard. RB65 ELECTRICAL CONNECTION DIAGRAM... -
Page 4: Motor Parts
22 RB65-1717 Inner Gear Atlas Copco 5 RB65-2046 Front Inner Cover (1) 23 RB65-1722 Inner Gear Atlas Copco 6 RB65-3605 Internal Gear Change Piston (1) 24 RB65-3058 Spiral Gear for Armature 7 RB65-1799 Plastic Gear Change Switch (1) 25 RB65-5267 Ring... - Page 5 RB65 MEGABRUTE STAND SCHEMATIC Exploded diagram of the RB65 safety guard schematic and included RB634 3/4” arbor.. INCLUDED WITH EVERY RB65: Carrying case, safety strap, RB634 3/4” arbor, cutting fluid, drift key and hex keys, safety guard. List/Size Description (Qty per Machine)
- Page 6 PORTABLE METAL DRILLING SYSTEMS MAGNETIC DRILL PRESS RANGE RB32 MINIBRUTE RB45 MIGHTIBRUTE RB65 MEGABRUTE AC35 ANNULAR CUTTER RANGES CT SERIES XLSERIES CARBIDE TIPPED ANNULAR CUTTERS HIGH SPEED ANNULAR CUTTERS CT150 CT200 CT300 CT400 XLSTK CT150 HS ANNULAR 1-3/8” CUTTER Depth of cut XL100/XL200/XL300 1”...
