Summary of Contents for jWIN JX-M133

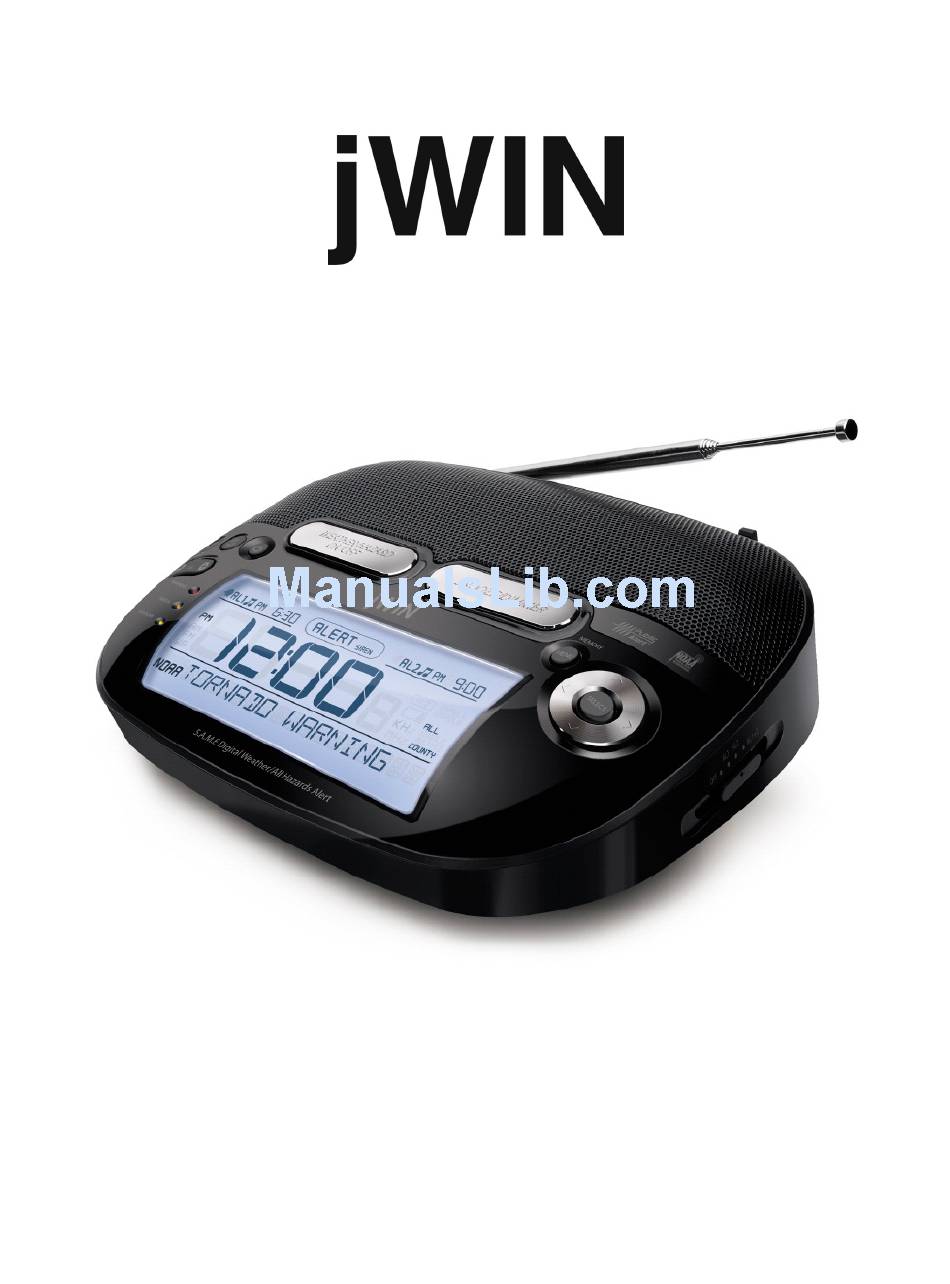

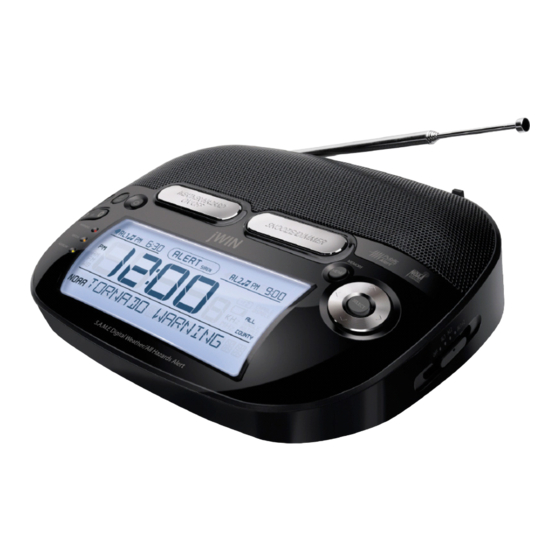

- Page 1 AM/FM/All Hazards Weather Alert Receiver with Dual Alarm Clock JX-M133 INSTRUCTION MANUAL Please read this manual carefully before operating and save it for future reference. Have a question? Please visit www.jWIN.com...
- Page 2 AM/FM/Weather band Radio w/ Dual Alarm Clock V10M10_IM_EN_06022009 www.jWIN.com...
- Page 3 (NOAA) which provides information about weather conditions, forecasts and hazard information 24 hours a day as a public service. JX-M133 receives all seven NOAA channels; it has an automatic alert system; in the event of a special warning broadcast, the receiver will automatically activate along with a loud tone;...
-
Page 4: Getting Started
7. RADIO AM/FM button 13. SNOOZE/DIMMER 3. DC jack 8. VOLUME -/+ button button 4. WEATHER/HAZZARD/ 9. OFF/AL1/AL2/AL1+2 14. MENU/MEMORY ON/OFF button Selector Switch button 10. HEADPHONE jack 15. SELECT button 5. POWER button 11. ANT. jack < > buttons www.jWIN.com... - Page 5 GETTING STARTED Location of Indications on the LCD Screen 9 10 1. PM/AM/FM indicator 6. Selectable alert indicator 2. ALARM 1 status indicator 7. NOAA indicator 3. CLOCK/FREQUENCY 8. Setting/Hazard/Info/Date display display 4. ALERT mode display 9. S.A.M.E. county indicator 5.
-
Page 6: Installing The Backup Batteries
• Remove spent batteries immediately and dispose of them. • Do not use old and new batteries together. Also never use an alkaline battery with a magnesium battery. • Backup battery time is 54 hours www.jWIN.com... -
Page 7: Operational Instructions
” arrow to adjust minutes and save your hour setting. DOWN Press the " " or " " buttons to adjust the minute setting. SELECT Press the button to store the time setting. MENU Press the button to return to the main menu. www.jWIN.com... - Page 8 Turn off the radio by pressing button on top of the radio. MENU Press the button. DOWN Press the " " or “ " button until “SET UP—ALARM 2” is displayed. Follow the instructions for “Setting the ALARM 1 Time” above. www.jWIN.com...
-
Page 9: Radio Operation
Note: Total 20 FM frequencies and 10 AM frequencies can be stored. Using Preset Stations RADIO AM/FM Turn on the radio and change the AM of FM band pressing the button. DOWN Press the " " or “ " button to select the preset stations. www.jWIN.com... - Page 10 OPERATIONAL INSTRUCTIONS Obtaining Weather Channel/County Codes from NOAA In order to receive alerts, JX-M133 must be set to the correct weather channel and county code(s) (FIPS code). To get this information for your area, call the NWS toll free number: 1-888-NWS-SAME (1-888-697-7263), or visit the website: www.nws.noaa.gov/nwr/indexnw.htm...
- Page 11 Once “SIREN” is chosen, alert tones will sound for 2 to 5 minutes or until the ALERT ON / OFF button is pressed. While alert tone is sounding, press the WEATHER/HAZARD ON/OFF button to listen the voice broadcasting. ALERT ON/OFF During voice or siren alert, press the button to stop the alert. www.jWIN.com...
-
Page 12: Setting The Alert Volume
To test the alert function to ensure it is working, press the button. DOWN Press the " " or " " buttons until “SIREN—TEST” is displayed on the screen. SELECT Press the button to sound the alert siren. SELECT Press the button again to silence the alarm. www.jWIN.com... -
Page 13: Reviewing Alerts
Note: The color-coded indicator will remain illuminated until the alert/event expires. Alert Out Socket The Alert Out socket is provided on the back of JX-M133. The socket’s output is compatible with home automation alert devices for loud siren. LCD Backlight Adjusting... -
Page 14: Low Battery Indication
United States. Currently, only a few areas are not covered. Typical broadcasts are within reception distance of 25-50 miles of the weather station. JX-M133 weather receiver can receive broadcasts from up to 50 miles from the weather station, depending on your location and conditions of weather, terrain, etc. - Page 15 Pull out the Telescopic Antenna and adjust its length and angle for optimum reception. This unit has a built-in AM antenna. For better AM reception, turn the unit for a clearer signal. EXT. ALERT Jack This unit features a 3.5mm EXT. ALERT Jack for an external trigger (on/off) out port. www.jWIN.com...
-
Page 16: Specifications
3.5mm stereo headphone jack 3.5mm external alert jack AC adapter jack RCA antenna jack • Power Requirement AC Adapter: ° Input: 120V, 60Hz (UL listed) ° Output: 12V 250mA (center negative) Battery: 6V, (4 x “AA” size batteries, not included) www.jWIN.com... - Page 17 AM/FM/Weather band Radio w/ Dual Alarm Clock V10M10_IM_EN_06022009 www.jWIN.com...
-
Page 18: User Safety Guide
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. www.jWIN.com... - Page 19 This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to. 17) The MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. www.jWIN.com...
- Page 20 Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. www.jWIN.com...
-
Page 21: Fcc Rules
Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio / TV technician for help. www.jWIN.com... - Page 22 No naked flame sources such as lighted candles should be placed on the apparatus. • Dispose of used batteries properly. Follow the local regulation for the battery disposal. • Use this apparatus in the moderate climates. It is recommended not to use this apparatus such in a lightning storm. www.jWIN.com...
- Page 23 AM/FM/Weather band Radio w/ Dual Alarm Clock V10M10_IM_EN_06022009 www.jWIN.com...
- Page 24 FAX: 516-626-7105 Website: www.jwin.com © 2009 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape and graphics, may be reproduced or transmitted in any form without the expressed written consent of jWIN Electronics Corp.
