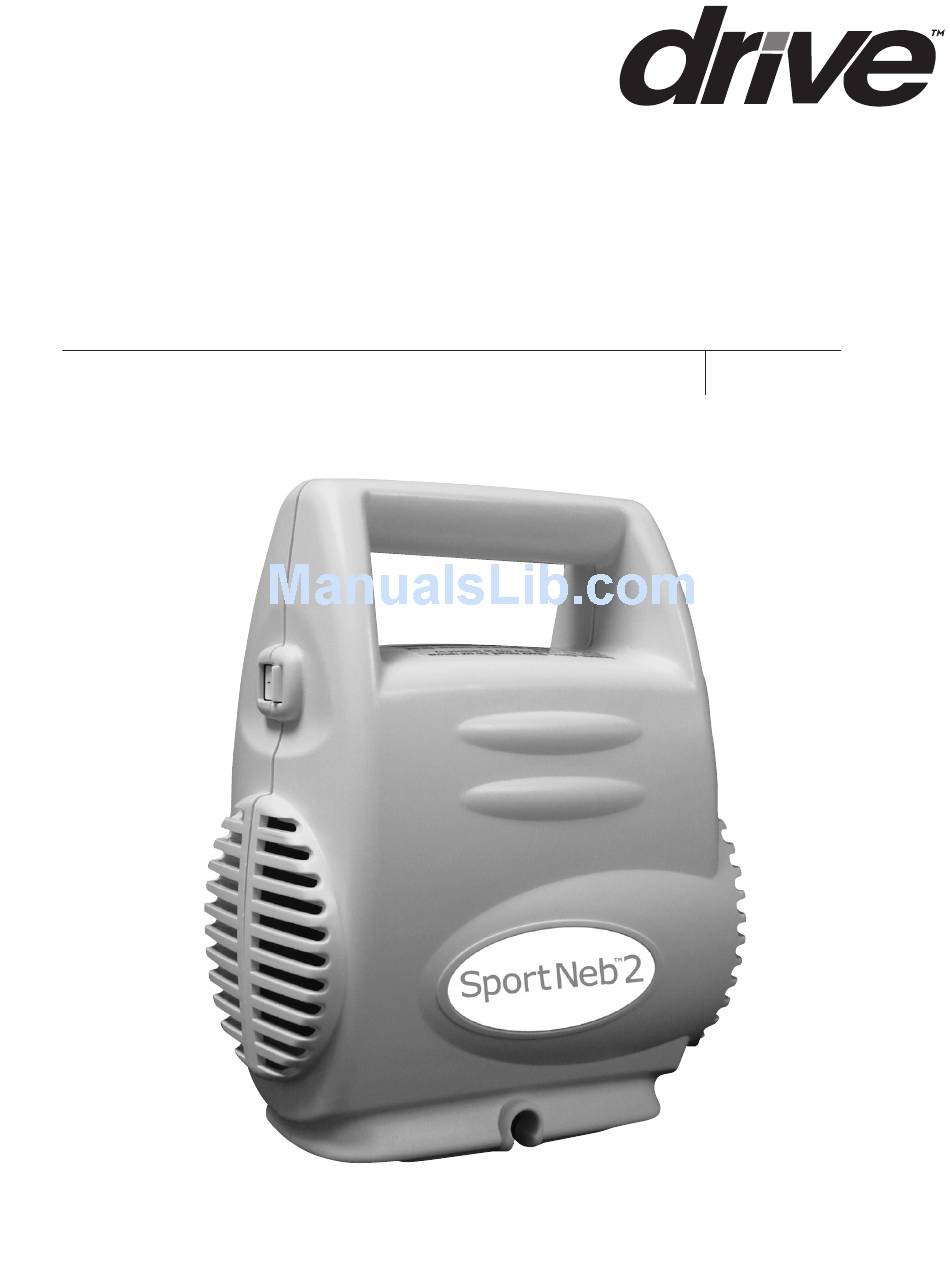

- Page 1 SportNeb ™ Compressor Nebulizer 3050-2...
- Page 2 Table of Contents IEC Symbols…………………..………..…………………… 3 Important Safeguards………………………………………. 4 Introduction……………………..…………………………….4 Specifications…………………….…………………………. 5 Description……………………..……………………………. 6 Operation Instructions……………..……………………… 7 Cleaning…………………………………..…………………. 7 Maintenance…………………………….……………………7 Warranty………………………………..……………………. 8...
- Page 3 IEC Symbols Caution, Attention or Consult accompanying documents Alternating Current Type BF Equipment Double Insulation Single Use Equipment Important Safeguards Caution: Federal Law (USA) restricts this device for sale or use on the order of a physician. Follow the instructions or you physician to operate this unit. Danger: To reduce the risk of electrocution: 1.
- Page 4 Important Safeguards Warning: To reduce the risk of burns, electrocution, fire or injury: 4. Do not use oil or grease on or near this device. Turn the unit off when it is not in use. 6. Keep the cord away from HEATED or HOT surfaces. 7.
- Page 5 Specification Electrical Requirements 115VAC/60Hz Power Consumption Dimensions 4.1” (105mm) High ×5.7” (145mm) Wide × 7.9” (200mm) Deep Weight 1.6kg (3.53lbs) Sound Pressure Level 58dB(A) Max. Comp. Pressure 30 Psig or greater Neb. Operating Pressure 10~14 Psig Liter Flow Range 4 - 8 LPM Particle Size Less Than 5 microns Operating Temperature...
- Page 6 Description 1. Air Outlet Connector 6. Mouthpiece 11. Tubing 2. Filter Cap 7. Nebulizer Cap 3. Power Switch 8. Baffle 4. Power Cord 9. Nebulizer Chamber 5. Nebulizer T-Piece 10. Air Inlet Connector...
- Page 7 Operation Instructions 1. Place compressor on a stable, sturdy and flat surface such that the unit can be easily reached when you’re seated. 2. Pull out the power cord from the base of the unit, and make sure that the unit is in the “off “(0) position by pressing on the left side of switch.
- Page 8 Check with your dealer for more details. This warranty is limited to the original purchaser of the compressor. Any defective part(s) will be replaced, at the sole discretion and determination of Drive Medical, if the unit has not been misused or tampered with during the warranty period. Normal maintenance items, as outlined in this manual, and disposable components are not covered by this warranty.
