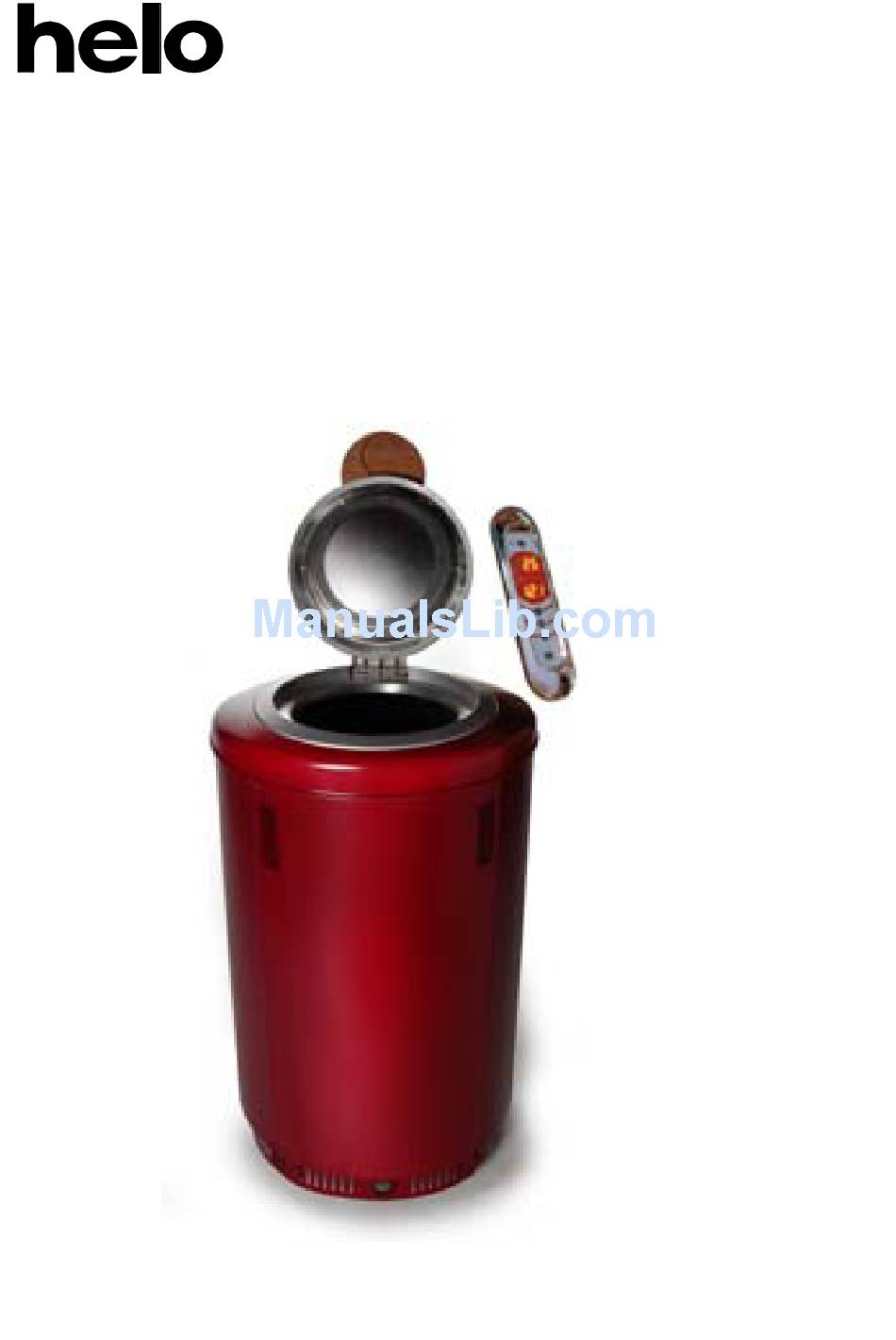

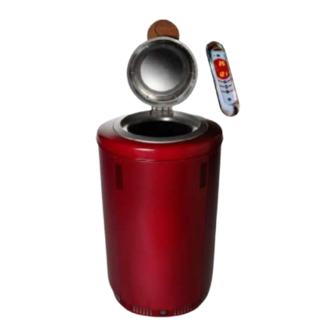

- Page 1 GENUINE SAUNA & STEAM User Manual RONDO Type information Power 1108-961-1705 9.6kW 1108-651-1705 6.5kW 1108-451-1705 4.5kW Voltage: 400 V 3N~ 7014056 314 SKLH 30 D...
- Page 2 NOTE! All the capacity measurements have been calculated for fully heat-insulated saunas. All reserving heaters, such as Rondo, require a fully heat-insulated sauna. The insulation has a critical effect on the functioning of the sauna and therefore it is recommended that the heat insulation is undertaken carefully.
- Page 3 INSTALLATION OF HEATER STONES AND INSULATION RINGS Before the installation of heater stones and insulation rings the heater has to be installed into its location and its electrical connections secured. Moving of the heater while it is full of heater stones may damage the heater / floor. - Remove the insulation rings before the loading of the heater stones.
- Page 4 RA 19 – CONTROL Sauna light control on / off Stone space temperature display Operational time display (full power) Sauna room temperature display (requires installation of a sensor as an accessory) Simmering mode on Addition of the setting rate Saving the setting rates Connection of full power Selection of the operational mode Reduction of the setting rate...
- Page 5 Sauna's temperature display: Detector OLEA 9-2 obtainable as an accessory can be installed to a (free) wall, for example 300 - 500mm from the ceiling. This sensor is only for the temperature display of the sauna room and therefore its location has no particularly significant meaning. The temperature is shown in the lower display of the control panel alternating with the timing once the full power has been connected on.
-
Page 6: Heater Operation
Heater operation The Rondo heater is a reserving heater as regards its function. This means that the heater has a thermo-insulated stone space which maintains a certain basic heat with simmering mode which is smaller than the heater power. This enables using sauna without long heating times thus differing from the normal heaters which are heated for one-off use. - Page 7 Setting of the heater on full power When the heater is set on full power, the heater lid must always be opened! Transfer from the simmering mode to full power is undertaken by holding down the control panel OK button for about 3 seconds. Then the controller moves to the full power setting mode and the flashing upper display shows the latest set stone space maximum temperature.
- Page 8 Then the heater is transferred to full power for the desired period. If a sensor element (OLET 9-2) obtainable as an accessory has been installed in the sauna space, the remaining sauna use time and the sauna room temperature are alternatively shown in the lower display. The upper display shows the temperature of the stone space.
- Page 9 5 x 2,5 3 x 16 *) NOTE! All the capacity measurements have been calculated for fully heat-insulated saunas. All reserving heaters, such as Rondo, require a fully heat-insulated sauna. The insulation has a critical effect on the functioning of the sauna.
-
Page 10: Recommended Sauna Room Ventilation
Recommended sauna room ventilation 1000 mm 500 mm 1. Sauna room 3. Electric sauna heater 5. Exhaust flue or channel 2. Washroom 4. Exhaust valve 6. Door to the sauna room 7. A ventilation valve can be installed here to be kept closed while the sauna is heated and during bathing. Inlet vent can be positioned in the A zone. - Page 11 Heater controller fixing instructions 1. First fix the wooden controller base to the wall using the screws provided together with the controller. Check before fixing that the base is on the allocated installation area (more accurate description is found in the Heater installation measurements). If necessary, you can use a spirit level to ensure that the base remains straight during the installation.
- Page 12 4. Before the final tightening ensure that the winding cable is not squeezed between the controller and the wooden base as it has to be in the recess meant for it. 5. Locate the controller frame into its place. The frame is located in its place by pressing with the hands.
- Page 13 Ympäristönsuojeluun liittyviä ohjeita Anvisningar för miljöskydd Tämän tuotteen käyttöiän päätyttyä sitä ei Denna produkt får inte kastas med saa hävittää normaalin talousjätteen vanliga hushållssopor när den mukana, vaan se on toimitettava inte längre används. Istället ska den sähkö- ja elektroniikkalaitteiden kierrätykseen levereras till en återvinningsplats tarkoitettuun keräyspisteeseen.
