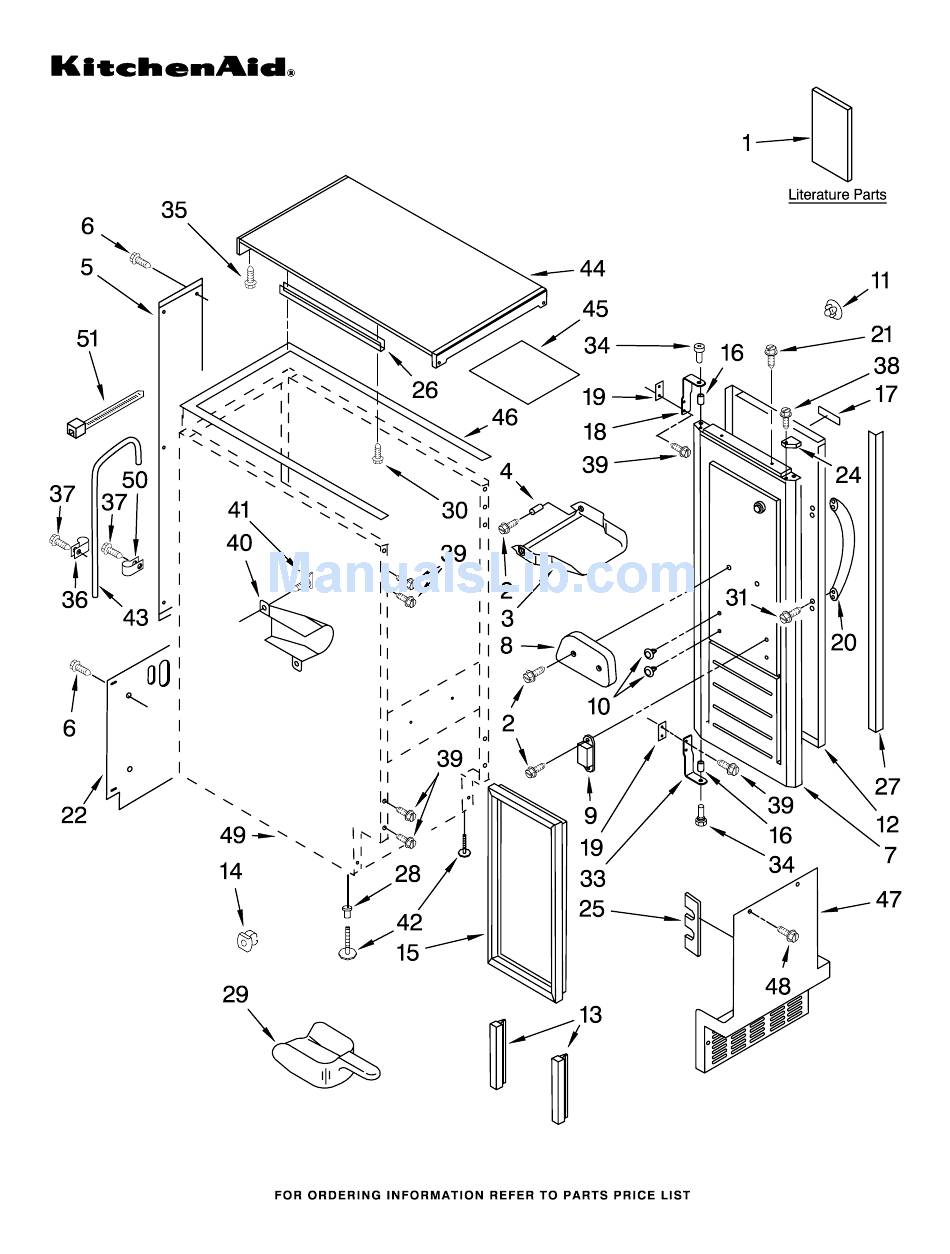

- Page 1 CABINET LINER AND DOOR PARTS ICE CUBE MAKER For Models: KUIC15PRTS1 (Stainless−Pump Model) 5−09 Litho In U.S.A. (rrm) (eeb) Part No. W10165862 Rev.A...
- Page 2 941839 Plug, Hole 2189000 Hole Plug, Handle 2313815 Wrap, Door 2217367 Gasket, Bottom 692400 Nut, Push−In 2217294 Gasket, Door 2185640 Sleeve, Hinge For Models: KUIC15PRTS1 (Stainless−Pump Model) Illus. Part DESCRIPTION 17 W10046610 Nameplate 2185710 Hinge, Top 2185709 Shim, Hinge 9872207S Handle, Door...
- Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIC15PRTS1 (Stainless−Pump Model) W10165862...
- Page 4 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIC15PRTS1 (Stainless−Pump Model) Illus. Part DESCRIPTION 1 W10159841 Valve, Complete Water 2217286 Tube, Plastic 488208 Screw 2185523 Dispenser, Water W10218037 Evaporator 2313705 Pump Reservoir Drain 2313851 Tube, Reservoir Pump 2172593 Tube, Water Fill...
-
Page 5: Pump Parts
W10165862 PUMP PARTS For Models: KUIC15PRTS1 (Stainless−Pump Model) Illus. Part DESCRIPTION 2313628 Pump Recirculating 3400884 Screw 8−18 x 5/8 2185677 Cover, Pump 2313844 Bracket, Connector Assembly 2313627 Bracket−Pump 2313643 Sensor−Water Level 2310092 Wiring Harness Main To Pump 2313702 Pump Assembly... -
Page 6: Control Panel Parts
CONTROL PANEL PARTS For Models: KUIC15PRTS1 (Stainless−Pump Model) Illus. Part DESCRIPTION 1 W10139127 Box, Control 2310139 Transformer 2304122 Assembly, Switch (ALSO ORDER #4) 2313693 Overlay 5 W10122069 Control Board 2149705 Switch, Plunger Grid/Light 2187585 Wire Assy−Active Overlay Jumper 745362 Bulb... -
Page 7: Unit Parts
UNIT PARTS For Models: KUIC15PRTS1 (Stainless−Pump Model) W10165862... - Page 8 Illus. 11 & 23) A201435 Clip, Mounting A201441 Shim (4) 2185960 Clamp (Power Cord) Grommet (4) 2217318 Production 4387558 Service UNIT PARTS For Models: KUIC15PRTS1 (Stainless−Pump Model) Illus. Part DESCRIPTION 2208415 Tube, Process 489423 Screw 489472 Screw 759112 Coil, Solenoid...
- Page 9 OPTIONAL PARTS (NOT INCLUDED) W10165862 For Models: KUIC15PRTS1 (Stainless−Pump Model) Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 503695 Sealer, Cork (1/4 Pound) 797403 Cement, Insulation (1 Oz.) 505587 Sealer, Mastic (1 Qt.) 212643 Sealer, Gum (22 Pcs. 3/16" x 7") 479976 Kit, Insulation (5 Pcs.
