SunTech Power Photovoltaic Module Installation Manual page 6

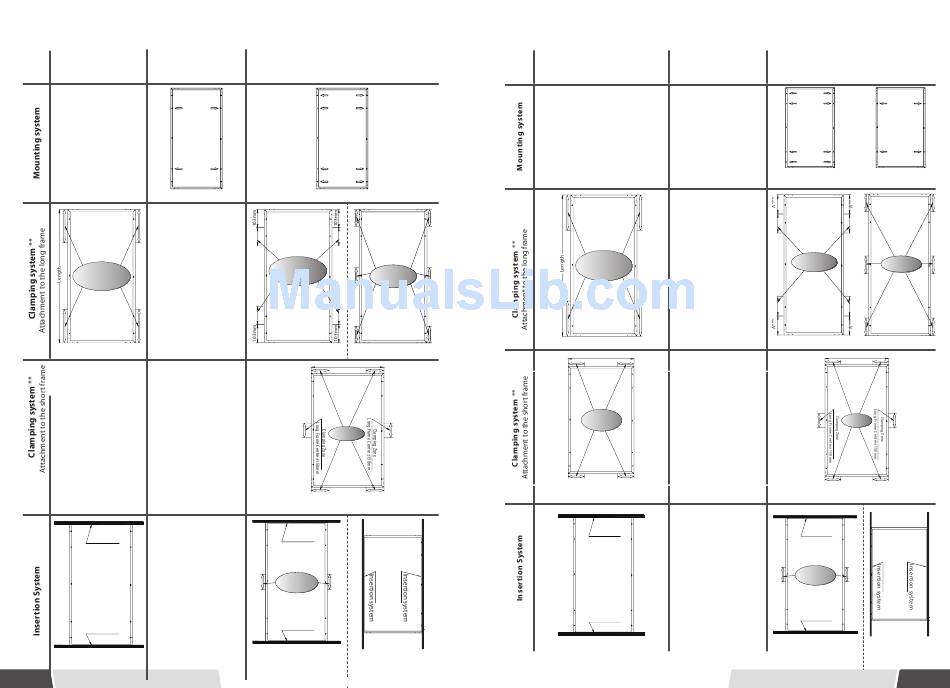

Suntech A series module
2400 Pa Load * 3800 Pa Load *
2400 Pa Wind Load 3800 Pa Wind Load
2400 Pa Snow Load 3800 Pa Snow Load
Use four mounting holes
Clamping Zone
From Module Edge to
1/4 Length±50mm
Use four clamps
Insertion system
Insertion system
Use insertion system on
short frame
No.8
Version 20130301
5400 Pa Load *
5400 Pa Snow Load
3800 Pa Wind Load
Use eight mounting holes
Clamping Zone
Clamping Zone
(300mm)
(100mm)
Use four clamps Use six clamps
Width
Clamping Zone
From Module Edge to
1/4 Width±50mm
Use four clamps on the short frame and two
clamps at the center of each long frame
Insertion system
Clamping Zone
(100mm)
Insertion system
Use insertion system on a short
Use an insertion system
frame and two
on a long frame
clamps at the center of
each long frame
Suntech W series, V series, Vdx (V landscape series) module
2400 Pa Load *
2400 Pa Wind Load
2400 Pa Snow Load
Clamping Zone
From Module Edge to
1/4 Length ± 50mm
Use four clamps
Width
Clamping Zone
From Module Edge to
1/4 Width ± 50mm
Use four clamps on short frame
Insertion system
Insertion system
Use insertion system on short frame
3800 Pa Load * 5400 Pa Load *
3800 Pa Wind Load 5400 Pa Snow Load
3800 Pa Snow Load 3800 Pa Wind Load
Use eight mounting holes
Use four mounting holes
(Exclude Ve)
Clamping Zone
(300mm)
Use four clamps
Width
Clamping Zone
From Module Edge to
1/4 Width ± 50mm
Use four clamps on the short frame and
two clamps at the center of each long frame
Insertion system
Clamping Zone
(100mm)
Insertion system
Use insertion system on a
short frame and two
clamps at the center of
each long frame
Version 20130301
Clamping Zone
(100mm)
Use six clamps
Use an insertion
system on a long
frame
No.9
