Bigben Gamephone controller PRO User Manual

Hide thumbs Also See for Gamephone controller PRO:

Advertisement

Quick Links

Download this manual See also: User Manual
BB5026
Gamephone controller pro
User's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Gamephone controller PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Bigben Gamephone controller PRO

Summary of Contents for Bigben Gamephone controller PRO

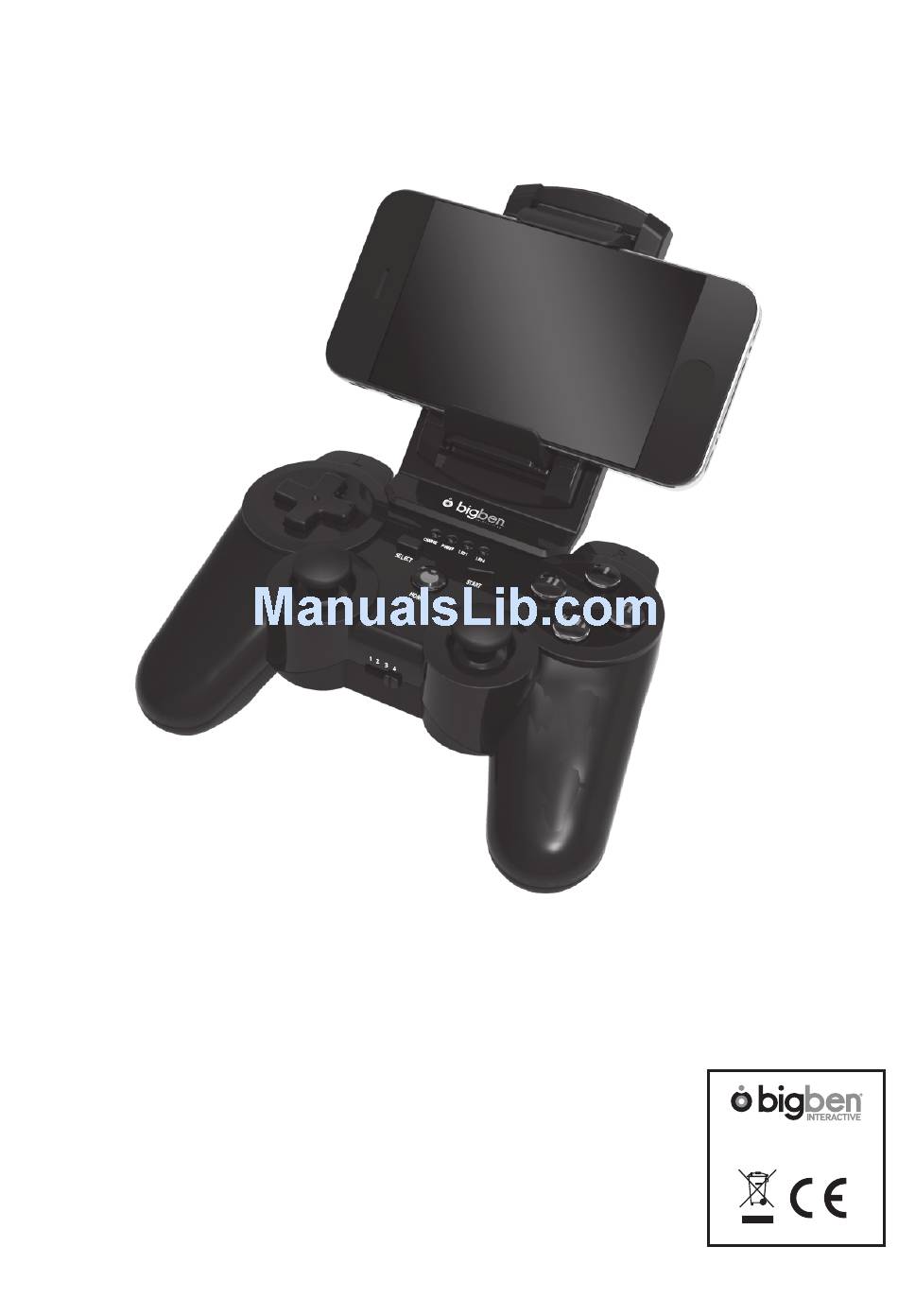

  • Page 1 BB5026 Gamephone controller pro User’s Manual...

  • Page 2: Product Features

    • USB charging cable • Stand for table controller Set-Up anD USe Before using the Gamephone Controller Pro, please ensure that the internal battery is fully charged. 01. Connect the supplied USB cable to the micro USB connection on the front of the controller.
  • Page 3 FIttInG the phone holDer Your Gamephone is supplied with a removable phone holder to conveniently hold your phone during play. To attach or remove it from the controller, follow these steps. 01. Slide the holder into the slot in the top of the controller. When it is fully inserted, it will click into place.
  • Page 4 02. Set the mode switch on the front edge of the Gamephone Controller Pro to position 1. 03. Switch the controller on by pressing and holding the ‘Home’ button for 5 seconds. LED 1, 2 and Power will all light up to indicate that it is on and in the IOS icade mode. The...
  • Page 5 The power LED will now start to flash rapidly to indicate that it is in search mode. 05. Check the Bluetooth® list on your device and you will see the name Bigben Gamephone –G listed. It will say that it is not paired.
  • Page 6 Before switching on the controller you will need to download and install the driver program. 02. Using your PC, go to www.bigben.eu /support and select the Multi support section. 03. Then select the Gamephone from the product selection to download the driver file. The file is called Gamephone driver –G.
  • Page 7 06. Select the internal storage and find the Gamephone driver. 07. Select the driver and it will ask you if you want to install. Select OK or Yes. The driver will now install on your system.
  • Page 8 Setting up the android driver. Once the driver is installed you now need to set it upon your device so it can communicate with the controller. Please ensure that you follow these steps exactly in sequence or it may not function correctly. 01.
  • Page 9 03. Go to the apps page on your Android device and select the Gamephone driver icon. 04. Set the mode switch on the Gamephone to position 2. 05. Switch the controller on by pressing and holding the ‘Home’ button for 5 seconds. LED 1 and power will light up to indicate that it is on and in the Android mode.
  • Page 10 06. Now press and hold the Home button again and quickly press and release the start button. The power LED will now start to flash rapidly to indicate that it is in search mode. 07. Choose the ‘Select device’ option and then select the Scan option.
  • Page 11 08. After a few seconds your device should find the Bigben Gamephone-G. Select this. 09. Then choose the ‘Select IME’ option and select the Gamephone-G Driver.
  • Page 12 10. Chose the ‘Connect to’ option. It will ask if you want to pair with the Gamephone. Select Pair.
  • Page 13 11. The controller will now be paired with your phone \ tablet. Key mapping configuration 01. To increase compatibility, the driver has been designed with a set of key mappings. The default setting will work with the majority of games. If you find that some of the controls are not working on some games, choose the Configure key mapping option within the Gamephone driver.
  • Page 14 03. Select any of the profiles to change the mapping for your game. Please check the games compatibility listing on our website to see what profile works with your selected game. 04. You can also rename the profile to this game name if you wish, to make it easy for your selection.
  • Page 15 05. Choose the ‘Connect to’ option. 06. The controller will now connect and will be ready for play. check the Bigben Website for game suggestions that work in this mode. Key swapping If you are not happy with some of the button layouts used in either IOS or Android modes you can simply swap button functions between 2 buttons.
  • Page 16 02. Press the 2 buttons you wish to swap between. i.e. Button L and Button R. The LED will now stop flashing. 03. Your 2 buttons have now swapped functions. Button L will work as button R and vice versa. To swap back, simply repeat the above operation. Press L button...
  • Page 17 Using the controller in hID mode The Gamephone Controller Pro can be used on an Android device or Windows in HID mode. For Android devices follow these instructions. 01. Set the mode switch on the Gamephone to position 4 02.
  • Page 18 07. When it asks you to Pair, select Pair. 08. The controller will now connect and will be ready for play. check the Bigben Website for game suggestions that work in this mode. For Windows, follow these instructions. 01. Set the mode switch on the Gamephone to position 4.
  • Page 19 08. Select the ‘Add a Bluetooth® device’ option. 09. The Bigben Gamephone G will now be found. Select it and then click the ‘Next’ box.
  • Page 20 12. Your controller is now ready for use. To test it is working, return to the Control Panel and select ‘Devices and Printers’ option. 13. You will now see an icon that shows the Bigben Gamephone-G. Right click on the icon and select the Game controller settings from the menu.

  • Page 21: Troubleshooting

    14. Select the ‘Properties’ box and then select the ‘Test’ option. You can can now check that the buttons and control sticks work OK. Game compatibility will be dependant in the game. troUBleShootInG If for any reason, your controller stops working, please try to reset it. There is a small reset switch located in a hole on the rear of the controller.
  • Page 22 • Ensure the controller is set to IOS mode. The switch should be in position 1. • The controller will only function with games from the compatible list. Please check our list on www.bigben.eu I cannot get the controller to work with my android games •...

  • Page 23: Disposal Of Old Electrical & Electronic Equipment

    Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. To download the full statement, please visit our website: http://www.bigben.eu/support and the section `declaration of conformity’. NOTE: In case of malfunction or Bluetooth® connection failure, due to electrostatic discharge by touching the USB connector, you may press the reset button of controller then repeat the synchronization procedure to resume normal operation.
  • Page 24 technIcal helplIne InFormatIon The Technical Helpline is a live one-to-one service UK: 0905 710 0015 hours: 10:00am till 5:00pm, monday to Friday (All calls are charged at 30 pence per minute. All callers must be over 16 years of age. Permission must be obtained from the person paying the bill.
  • Page 25 www.bigben.eu...
