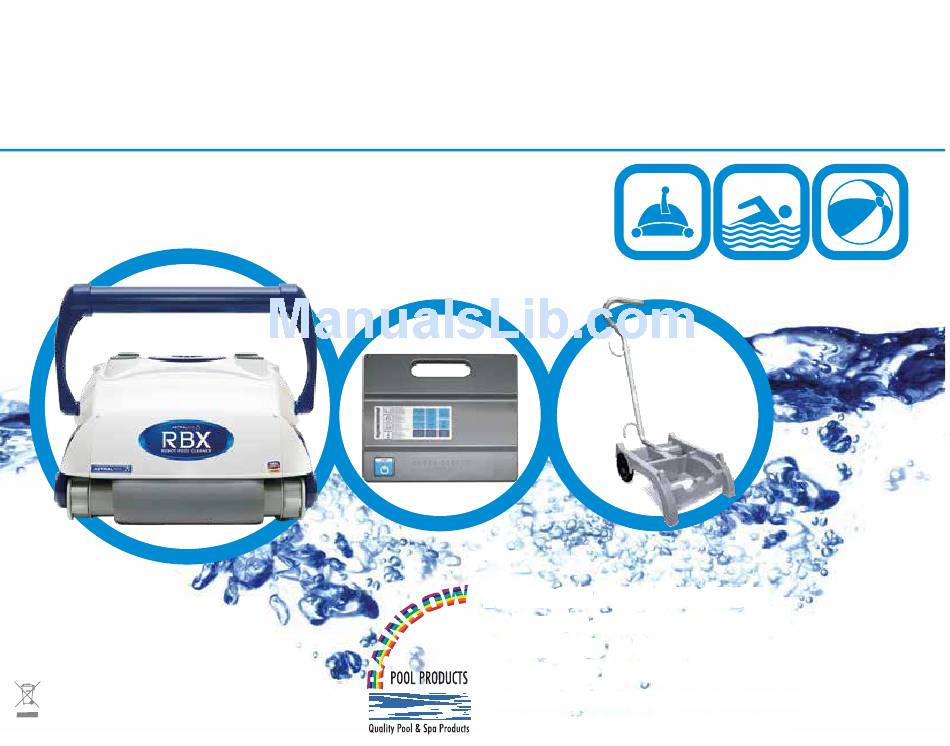

RBX Robotic Pool Cleaner
Installation and Operating Instructions
Rainbow Pool Products
Rainbow Pool Products
PO Box 2388, Mansfield Qld 4122
PO Box 2388, Mansfield Qld 4122
Telephone STD 61-7-3849 5385
Telephone STD 61-7-3849 5385
Facsimile STD 61-7-3849 5384
Facsimile STD 61-7-3849 5384
Product 11713
Email: info@rainbowpoolproducts.com.au
Email: info@rainbowpoolproducts.com.au
Product Inst 322
Web: www.rainbowpoolproducts.com.au
Web: www.rainbowpoolproducts.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RBX and is the answer not in the manual?

Questions and answers

Related Manuals for Rainbow Pool Products RBX

Summary of Contents for Rainbow Pool Products RBX

  • Page 1 RBX Robotic Pool Cleaner Installation and Operating Instructions Rainbow Pool Products Rainbow Pool Products PO Box 2388, Mansfield Qld 4122 PO Box 2388, Mansfield Qld 4122 Telephone STD 61-7-3849 5385 Telephone STD 61-7-3849 5385 Facsimile STD 61-7-3849 5384 Facsimile STD 61-7-3849 5384 Product 11713 Email: info@rainbowpoolproducts.com.au...

  • Page 2: Important Safety Instructions

    Dear Customer, IMPORTANT SAFETY INSTRUCTIONS Thank you for choosing our product to clean your pool. We hope that you will enjoy using your new robot to maintain your swimming pool for years to come. READ AND FOLLOW ALL THE INSTRUCTIONS Before you begin to use your robot, please take a few minutes to carefully read these operating instructions.
  • Page 3 Operating the pool cleaner 1. Place the power supply (transformer) at least 3.6 meters / 11.8 feet from the pool and at 4. Place the unit in the water. Turn the unit least 12 cm / 4 Inch above the surface (fig.1). The transformer will supply low voltage to side to side in the water to allow air to the cleaner.
  • Page 5 Operating the pool cleaner and power supply a. Power LED The blue LED flashes when the power supply is in standby mode and lights continuously when the pool cleaner is operating.The power button switches between ON and STANDBY b. "POWER" button The button switches between "ON"...
  • Page 6 Model 200 - Aquacontrol Smart Premium Cleaning program PROGRAM PROGRAM Internal timer PROGRAM Check filter External timer 1. Cleaning program selection: Program 01 – 1 hour floor cleaning. Program 02 – 1.5 hour floor and wall cleaning. Program 03 – 2 hour floor and wall cleaning. 2.

  • Page 7: Maintenance And Adjustment

    Aquacontrol Power Supply Specifications Physical Dimensions (W * D * H) 273mm * 242mm * 90mm Weight 1.9 Kg Electrical Input rating 100-240V~, 50/60Hz, 210W Output rating 29V ,6.3A. Storage temperature -10° C - 60° C Operating temperature 0° C - 45 ° C Ingress protection IP54 Maintenance and adjustment...
  • Page 8 Maintenance and adjustment CLEAN THE FILTER BAG AFTER EVERY CLEANING CYCLE a. Unplug the power supply. (Please keep the plug away from contact with water) b. If the unit is in the pool, gently pull the cleaner toward you using the cable until the handle is within reach. Use the handle (not the cable) to pull the cleaner out of the pool smooth smooth...

  • Page 9: Important Tips

    Maintenance and adjustment Screws Filter bag 30°C / 85°F outlet top propeller label (continued from the previous page) d. Remove the filter bag from the support bars, turn it inside out and wash off all the dirt Cleaning the pump propeller: with a garden hose or in a sink.

  • Page 10: Installation Instructions

    Caddy Installation Parts 1. Caddy handle 2. Handle screws 3. Body screws 4. Caddy body Installation Instructions 1. INSTALL THE ENTIRE CADDY HANDLE using the two handle screws (2) as is shown in the picture. 2. INSERT THE CADDY HANDLE into the caddy body special place and fix it with three body screws (3) as is shown in the picture.

  • Page 11: Troubleshooting Guide

    Troubleshooting Guide PLEASE CHECK THE FOLLOWING BEFORE CALLING YOUR SERVICE CENTER Before troubleshooting, the pool cleaner must be disconnected from the power supply and the power supply must be unplugged from the electrical outlet to prevent damage to the unit and possible personal injury. For reference numbers, consult the parts list diagram located on the last page of the instructions.

  • Page 13: Warranty Terms And Conditions

    WARRANTY TERMS AND CONDITIONS Astral Pool Australia Pty Ltd (ABN 97 007 284 504) ("Astral Pool") provides the following warranty in relation to its Robotic Pool Cleaners. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.

  • Page 14: Warranty Claims

    WARRANTY CLAIMS 1.If a fault covered by warranty occurs, the customer must first contact AstralPool at the contact address listed below, or an Authorised AstralPool Service Agent. 2. Any warranty claim must be accompanied by: (a) proof of purchase; (b) full details of the alleged defect; and (c) appropriate documentation (such as historical and maintenance records).

  • Page 15: Exclusions And Limitations

    EXCLUSIONS AND LIMITATIONS EXCLUSIONS The warranty will not apply where: the customer is in breach of the Terms and Conditions of Sale; the Product was used for a purpose other than one it was intended for; the Product was repaired, modified or altered by any person other than AstralPool; the Product has not been installed, maintained and/or operated in complete compliance with the installation and operating instructions and any instructions by AstralPool;...
