Summary of Contents for Rainbow Pool Products W5420005

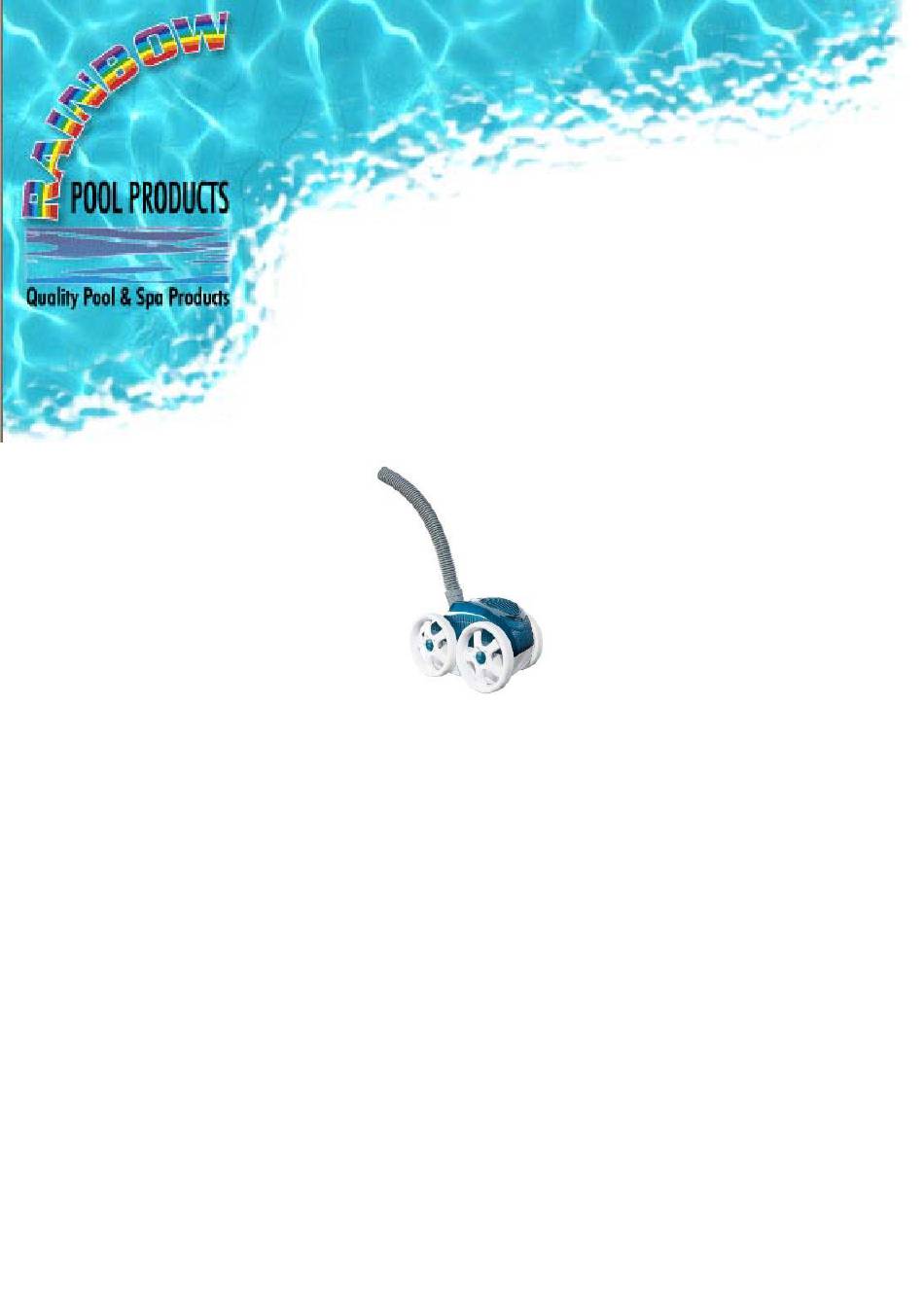

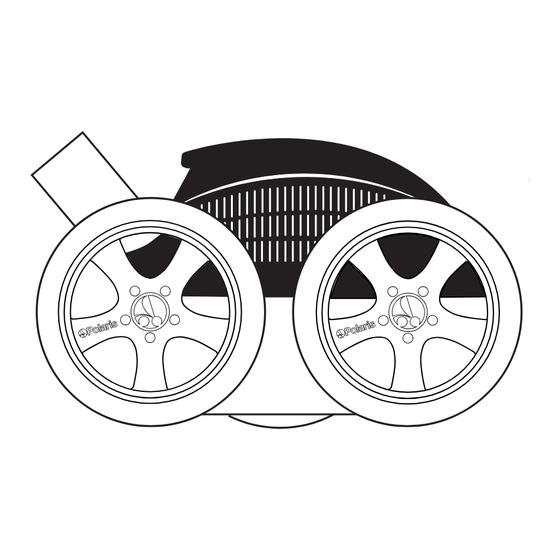

- Page 1 POLARIS ATV Code Description 1 Year Warranty W5420005 Polaris ATV...
- Page 2 IMPORTANT INFORMATION • Always disconnect the Polaris from the pool wall when cleaning or backwashing the pool filter. • After cleaning or backwashing, let the filtration system run for at least five minutes before re-connecting the Polaris. • New plumbing lines should be flushed out before installing the Polaris. •...
- Page 3 WARNING: USE OF POLARIS ATV IN A VINYL LINER POOL Certain vinyl liner patterns are particularly susceptible to rapid surface wear or pattern removal caused by objects coming into contact with the vinyl surface, including pool brushes, pool toys, floats, fountains, chlorine dispensers, and automatic pool cleaners. Some vinyl liner patterns can be seriously scratched or abraded simply by rubbing the surface with a pool brush.
-
Page 4: Quick Installation Instructions
QUICK INSTALLATION INSTRUCTIONS Four quick steps to install and get maximum performance from the Polaris ATV: • Identify type of pool connection and connect hose • Adjust suction hose to fit pool length • Test and adjust water flow • Check for proper wheel RPM (revolutions per minute) 1. -
Page 5: Skimmer Connection
Skimmer Connection Hose Push universal adapter into the suction line in the bottom of the skimmer. Flow Regulator Insert flow regulator into the universal adapter. Universal Adapter Feed any hose section without weights through the skimmer opening and attach it to the flow regulator. Suction Line Deep Skimmer... - Page 6 2. Adjust Suction Hose to Fit Pool Length With the hose attached to the pool, extend the hose to the farthest point of the pool. The hose end should reach 2 to 3 hose sections past the farthest point. Hose too long? Remove excess hose sections from the middle of the hose. Hose too short? Buy additional standard hose sections.
- Page 7 • For skimmer installations, turn knob on flow regulator clockwise until indicator is within the target area. If too much flow: • For dedicated suction line installations, adjust valve in equipment area that controls water flow to suction line until the indicator is within the target area. •...
-
Page 8: Emptying The Pump Basket
QUICK INSTALLATION INSTRUCTIONS The Polaris ATV cycles on/off with the pool filtration pump, vacuuming and cleaning all surfaces randomly throughout the pool. The climbing ability of the Polaris is dependent on the pool’s shape and available water flow. It will climb better in pools without sharp angles or curves in the transition from the pool floor to the pool wall. -
Page 9: Troubleshooting
TROUBLESHOOTING If the Polaris cleaner displays the following actions, adjustments may be necessary to restore performance. Refer to the exploded parts diagram for part references. Action: Polaris hangs up on steps or other obstacles longer than 5 minutes. Solution: 1. Check the wheel RPM. 2. - Page 10 Action: Polaris is not moving. Solution: 1. Remove bottom plate and Troubleshooting Worksheet verify that the intake area is free of debris. If these solutions do not result in 2. Remove top housing and improved performance, contact the make sure propeller is free of Polaris dealer who sold you the cleaner debris.
