Vermason TB-7510 Installation, Operation And Maintenance

Vacuum Cleaner and Blower
Installation, Operation and Maintenance

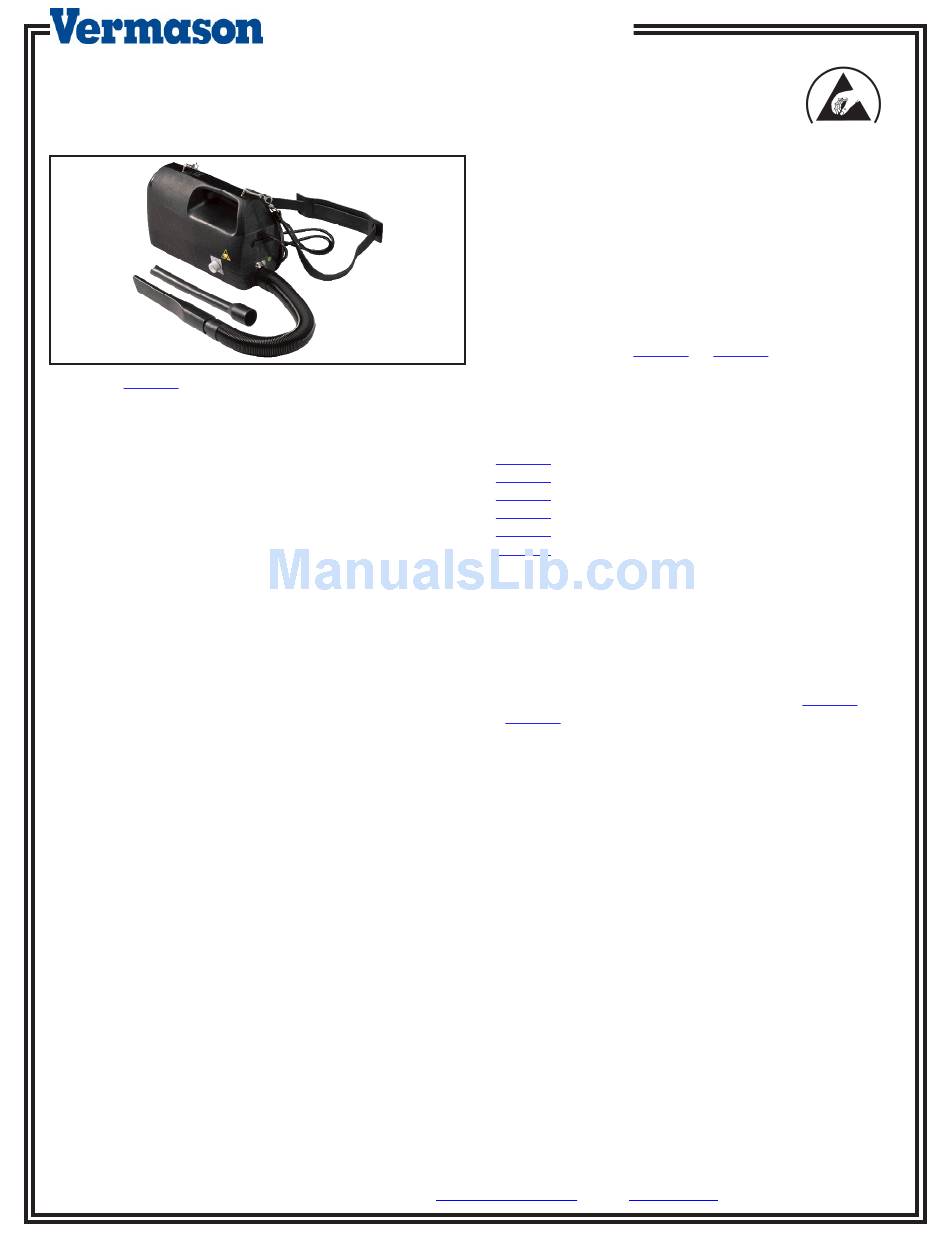

Figure 1. 231700 Vacuum Cleaner
Description
Compact lightweight blower / vacuum cleaner designed
for precise removal and collection of dry dust particles
and debris from electrostatic static sensitive devices
(ESDS). The conductive nozzles drain-off any static
build-up to earth.
In order to comply with EN61340-5 recommendations
for working in an ESD protected area (EPA), the
appliance housing, nozzles, hose, shoulder strap, cable
and accessories are fully conductive. The vacuum
cleaner can retain dust and fine dry particles as small
as 0,3 micron, the vacuum cleaner is fitted with a
double-layer paper filter bag and an electro-static
charged micro-motor filter.
"Tools intended for use within the EPA [ESD protected
area] shall, as far as is practicable, be so constructed
that they do not generate or hold an electrostatic charge
....All tools and machinery, for example electrical,
mechanical or pneumatic, shall be so constructed that
any non-insulating part of the tool or machine which
may touch an ESDS [ESD sensitive items] shall be at
EPA ground potential." [EN 61340-5-1 clause 5.2.10
Tools, machinery, dispensers and test equipment]
The appliance can also be converted in seconds into
a powerful blower for dust removal in area's otherwise
not accessible - the blower's air-current is cfc-free and
contains no oil or water residue.
The appliance is constructed to safety class II: Double
insulated design in compliance with CE standards.
- Durable and compact design
- Motor has thermal protection with RFI/EMC filter
- Hose assembly extends to 130cm
- Includes hard crevice and soft rubber nozzle
- 1.2 l filter bag
- Advanced 5 stage filtration system
TB-7510 Page 1 of 2 March 2014
TECHNICAL BULLETIN TB-7510
UNIT C, 4TH DIMENSION, FOURTH AVENUE, LETCHWORTH, HERTS, SG6 2TD UK
Phone: 0044 (0) 1462 672005 • E-mail: Service@Vermason.co.uk, Internet:
- 3m long power cord
- Conductive carry strap
- Input power supply voltage: 220-240 volts
- Made in the Netherlands
Inspection
Remove the vacuum cleaner from the carton and
inspect for shipping damages.
Each unit should include the following:
1 Vacuum Cleaner (231700
1 1.3m Hose
2 Nozzles
1 Carrying Strap
Optional Accessories:
- 231725: Replacement Bags, Pack of 10
- 231705: Carry Bag
- 231726: Long soft rubber nozzle with mini crevice tool
- 231727: Long soft rubber nozzle
- 231728: Long soft rubber nozzle with brush head
- 231729: Replacement micromotorfilter
Operating instructions
1. Push hose end into suction opening
2. Press the suction nozzle onto the free suction
hose-end
3. Place rocker switch in off position
4. Set electronic control to medium power (231700,
231710)
5. Insert the plug into the electrical supply and start
appliance, pressing on-off switch to "on" position.
If there is substantial loss of vacuum or blow-pressure,
take the following steps:
6. Remove appliance from the EPA
7. Check whether nozzle or suction-hose have become
blocked
8. Switch off appliance and disconnect plug from
electrical supply
9. Lift metal bottom lock and remove housing's front
cover
10. Remove and replace the spent paper filter bag
11. Replace electrostatic micro-motor filter.
Note: This appliance is equipped with a thermal
protection device. To protect the motor from
overheating, it will switch off automatically if there is an
