Summary of Contents for Bellman BE1341

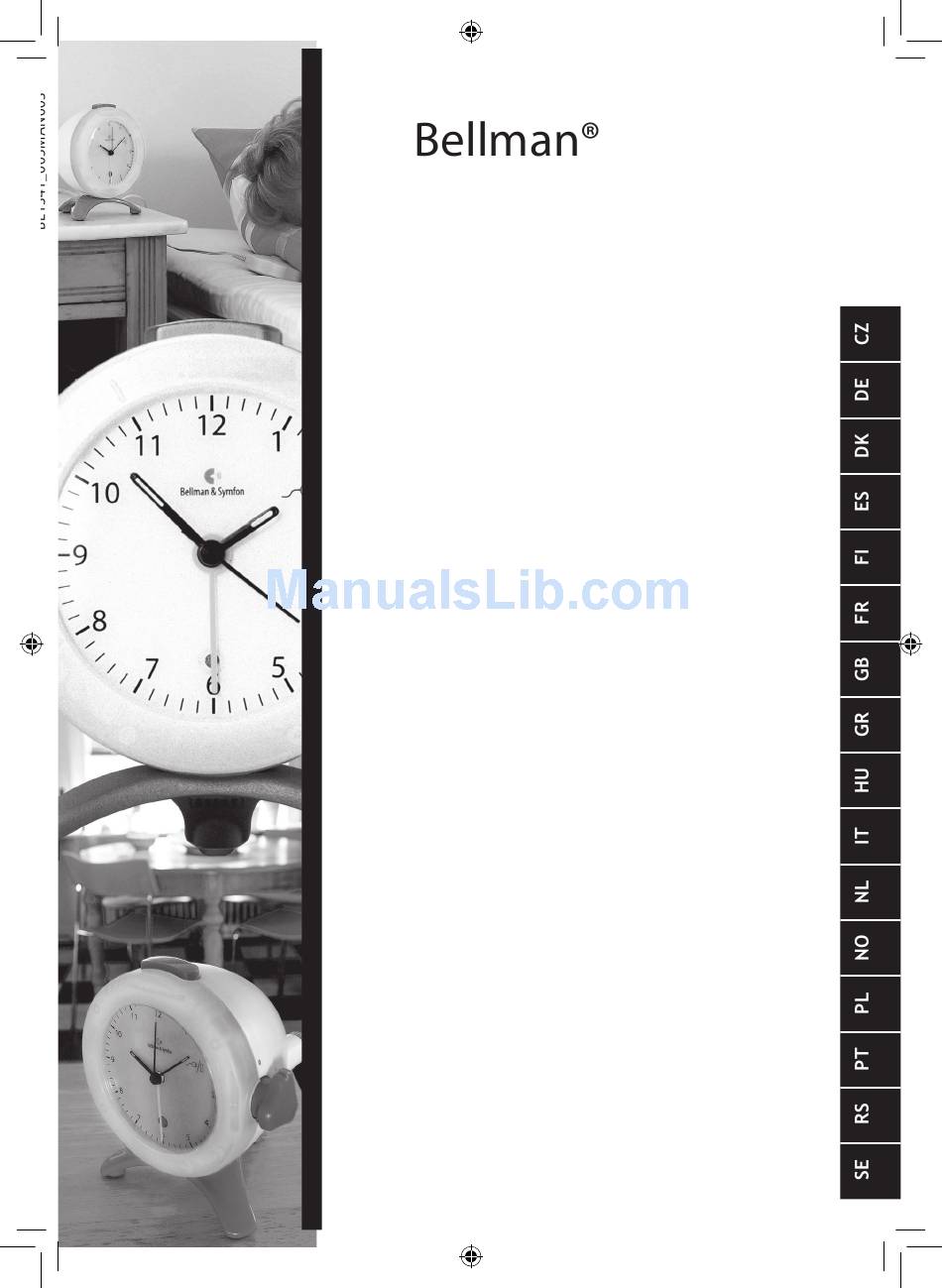

- Page 1 Alarm Clock Model BE1341 Pokyny Bedienungsanleitung Brugsvejledning Instrucciones Käyttöohje Mode d’emploi Instructions Οδηγίες Használati utasítás Manuale d’Uso Gebruiksaanwijzing Bruksanvisning Instrukcja obslugi Instruções Uputstvo za upotrebu Bruksanvisning...
- Page 2 BE1270 BE1270...
-
Page 4: Getting Started
Bellman & Symfon AB have both separate products and also complete systems geared to helping people with impaired hearing. An example of this is the Bellman Visit 868 System, which consists of a number of radio transmitters and receivers. The transmitters detect different events in the surrounding area and transmit a radio signal to the receivers. -
Page 5: Telephone Connection
Setting an alarm call Turn the Alarm Pointer anticlockwise to the desired call time using the Alarm Call Knob (10). Activate the alarm by turning the Alarm Dial (5) to position 1. If the power supply unit is connected, the LEDs in the Snooze Button (4) will light up. Snooze function The snooze button lights when the alarm is activated and blinks when the snooze function is activated. To conserve the built-in back-up battery, the snooze button will not light or blink when the external power supply is disconnected, e.g. during a power failure. The snooze function on the alarm delays the alarm call for approximately 3.5 minutes by pressing the Snooze Button (4). During this time the LEDs in the Snooze Button (4) will blink. Switching off the alarm call The alarm is switched off completely by switching the Alarm Dial (5) to position 0. Illumination of the clock face The clock face’s background light will come on when the alarm clock sounds or the snooze button (4) is pressed. Telephone connection The telephone is connected via the Telephone Input (15). Use the BE9105 Telephone Flex (accessory) and an adapter plug (accessory). During activation via the telephone connection (15), further activations can be ignored for 45 seconds if the Snooze Button (4) is pressed. External trigger It is possible to connect the vibrator output on several of Bellman & Symfon AB’s products or other equipment that produces a contact or voltage to an external trigger (13) for activation. In this way the Bellman Alarm Clock can be made to work as alarm equipment, e.g. for an existing fire alarm. During activation via the External Trigger (13), further activations can be disregarded for 45 seconds if the Snooze Button (4) is pressed. - Page 6 Indicators and Signals Sound The Bellman Alarm Clock sounds an alarm. The sound volume is 80 dBA maximum at 1 metre. The main frequency range is 500 - 1000 Hz. The sound can be switched off via the Sound Switch (7). Flashing light When the Bellman Alarm Clock is activated, 4 built-in flashing lights (17) flash with a bright white light. The flashing light can be switched off via the Flash Switch (9). Vibration The Bellman Alarm Clock can power two BE1270 Bellman Bed-shakers (accessory) which are placed under the pillow to wake the user up when the Bellman Alarm Clock is activated The Bed-shaker is connected to the sockets (14). Power supply The LED (1) is constantly green when the power supply unit is connected correctly. When the LED (1) blinks green, the internal back-up battery is charged, but the Alarm Clock has no external power supply, either because of a power failure or because the power supply unit is not connected. When the LED (1) blinks yellow, the back-up battery is nearly flat and the Alarm Clock has no external power supply, either because of a power failure or because the power supply unit is not connected. The battery must be charged by connecting the power supply unit and allowing the Alarm Clock to charge for at least 24 hours. Troubleshooting in brief Symptom Solution Nothing happens. • Check that the power supply unit is connected correctly and that the LED (1) is constantly green. The LED (1) blinks. • Check that the power supply unit is connected correctly.
- Page 7 Power supply LED Alarm pointer Illuminated clock face Illuminated snooze button Alarm dial Base Sound switch Signal switches for external trigger Flash switch 10. Alarm call knob 11. Time setting knob 12. Input for power supply unit 13. External trigger input. 14. Vibrator output 15. Analogue telephone input 16. Programming switch 17. Flashing lights...
-
Page 8: Further Information
Appendix - Further information Further information Adjustments No adjustments apart from setting the time and selecting the call time are required for normal use. The relevant descriptions are provided below, if you wish to change a setting for some reason. Signal pattern on external trigger The signal type set during external activation and indicators and signals activated by an external trigger can be altered using the switches (8), see figure below. DIP switch LED pattern Sound Vibration Flash settings Green is constantly 1 x ding dong, low- Separate frequency tone Green blinks 2 x ding dong, high- Separate constantly frequency tone Yellow is constantly 1 x ring, low- Short frequency tone Yellow blinks 2 x ring ring, high- Short constantly frequency tone Orange blinks... - Page 9 Testing It is easy to test the Bellman Alarm Clock, BE1341. If the Alarm Clock does not work as described below, you can check further under Troubleshooting guide. How to test The BE1341 Bellman Alarm Clock should always be connected to the electric socket with the enclosed power supply unit. To test the flashing light, sound and vibration with the BE1270 Bellman Bed-shaker (accessory): • Switch on the alarm with the Alarm Dial (5) by turning it to position 1 • Turn the Alarm Pointer anticlockwise using the Alarm Call Knob (10) until the alarm on the clock is activated. • The Bellman Alarm Clock will give the following indications: Switching on clock face background illumination (3). Flashing with the flashing lights (17) on the front, provided that the Flash Switch (9) is in the ON position. Emitting a sound signal, provided that the sound switch (7) is in the ON position. A BE1270 Bellman Bed-shaker (accessory) will vibrate if connected Two tests are required to carry out a full test of the external trigger; one to test contact and another to test voltage. For further information see Activation. Please note that when the Snooze Button (4) is pressed during an alarm from an external trigger, any further alarm via the external trigger will be ignored for 45 seconds. • Connect the alarm unit to the external trigger input (13). • Activate the alarm. • The Bellman Alarm Clock will give the following indications: Flashing with the flashing lights (17) on the front, provided that the Flash Switch (9) is in the ON position. Emitting the sound signal selected via the external trigger signal switch (8), provided that the Sound Switch (7) is in the ON position. If the BE1270 Bellman Bed Shaker (accessory) is connected, it will vibrate in the way selected via the external trigger signal switch (13). To test the built-in telephone connection: •...
-
Page 10: Troubleshooting Guide
Trouble shooting You can carry out a number of checks yourself before sending a product for repair. Troubleshooting guide Symptom Solution Nothing happens. • Check that the power supply unit is connected correctly. The LED (1) blinks. • Check that the power supply unit is connected correctly. The LEDs in the Snooze Button (4) do not come on • Check that the power supply unit is when the alarm clock is switched on. connected correctly. The Alarm Clock does not emit any sound signals. • Check that the Sound Switch (7) is in the ON position. The Alarm Clock does not emit any flash signals. • Check that the Flash Switch (9) is in the ON position. Technical information Power supply Mains power: 7.5 V DC / 1500 mA with power supply unit BE9216 (Europe) and BE9217 (United Kingdom). Battery power: Internal NiMh type back-up battery. The internal back-up battery must be changed at a service workshop. Charging: Via the power supply unit. The discharged back-up battery will take at least 24 hours to charge. -
Page 11: Additional Information
Output signals Built-in sound signal: 80 dBA maximum at 1 metre with a main frequency range of 500 - 1000 Hz. Built-in flash light signal Approx. 10 Candela. Warning! Flashes can cause epileptic attacks. Vibrator power 2.0 - 4.0 V DC Additional information For indoor use only Size B x H x D: 110 x 130 x 92 mm Weight: 460 g Colour: White with red base and red buttons/dials Flex length: Power supply unit 1.8 m Accessories Bellman Bed Vibrator BE1270 Bellman External Trigger Cable BE9086 Bellman Telephone Flex BE9105 Adapter plug for the appropriate country...
