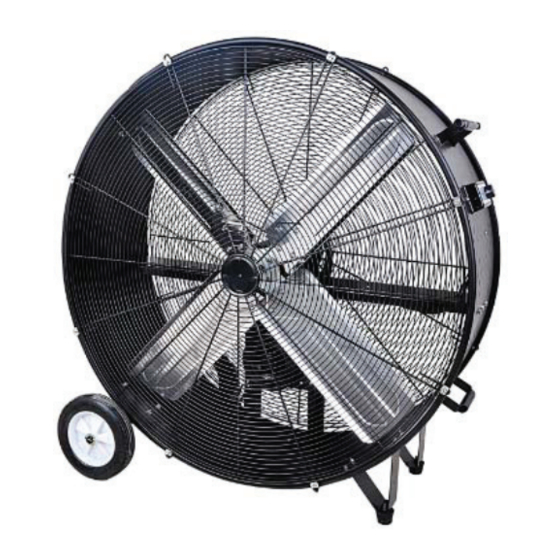

- Page 1 ATD-30342 42” BELT DRIVE DRUM FAN INSTRUCTIONS Item No. Blade Diameter Voltage / Hz Current (A) ATD-30342 42”/1066.8 mm 120V /60Hz READ AND SAVE THESE INSTRUCTIONS Failure to properly follow these instructions may lead to injury or bodily harm.
-
Page 2: California Prop 65 Warning
California Prop 65 WARNING: This product contains chemicals including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. Wash hands after handling. General Safety Warnings: WARNING: The instructions and warnings contained in this manual should be read and understood before using or operating this fan. -
Page 3: Care And Maintenance
WARNING: Never use the cord for carrying, pulling or unplugging the fan. Grasp plug and pull to disconnect from outlet. Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately. WARNING: Ensure the switch is in the off position before plugging the fan into the power outlet. In the event of a power failure while the fan is being used, turn the switch off to prevent surprise starting when the power is restored. -
Page 4: Operating Instructions
Wheels Assembly Instructions: 1. Slide the two wheels (1) with wheel shaft (2) into the wheel shaft on the support (3). 2. Tighten the screws (4) to firm the wheel shaft (2). Operating Instructions: 1. Place the fan on a safe, flat surface where it cannot fall or be pulled by the cord. 2. - Page 5 SWITCH BOX PRT30342-08 T BRACKET PRT30342-09 BLADE PULLEY PRT30342-10 BELT PRT30342-11 REAR GUARD PRT30342-12 MOTOR PULLEY PRT30342-13 BRACKET PRT30342-14 BRACKET PRT30342-15 WHEEL Please contact jay@supertestusa.com for parts and service issues Made in China to ATD Tools, Visit us at www.atdtools.com...
