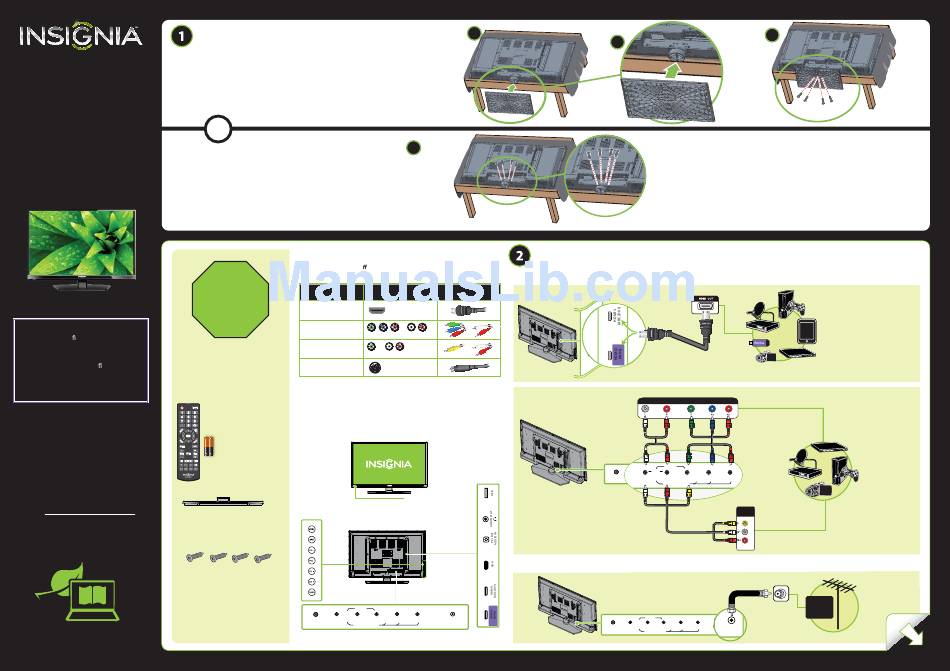

QUICK
SETUP GUIDE
29" LED TV
NS-29D310NA15
Thank you
for purchasing this state-of-the-art
Insignia television. We hope you enjoy
the quality and reliability of this
television for years to come.
Roku Ready®
Your TV is certi ed to work with the
Roku Streaming Stick™.
Instantly stream 1000+ entertainment
channels, including Net ix, Hulu Plus,
Included accessories
Pandora, and more. Connect the
Streaming Stick (not included) to the
purple MHL port on your TV and enjoy.
FIND YOUR
USER GUIDE ONLINE!
We are going green so a copy of your
User Guide is not provided in the box
but is available online.
Go to www.insigniaproducts.com,
then click Support & Service. Enter your
model number in the box under Manual,
Firmware, Drivers & Product Information,
then click .
START HERE
How do I attach the stand to my TV?
(not for wall mounting)
You'll need: Phillips screwdriver and a soft surface to lay the TV on.
A Carefully place your TV face-down on a cushioned, clean surface.
B Find the front of the stand. Attach the TV stand to the stand column by hooking
the tab on the column into the slot on the stand.
C Secure the TV stand to the stand column with the four provided screws.
- OR -
How do I prepare my TV for wall mounting
(not for use with a TV stand)
A Carefully place your TV face-down on a cushioned, clean surface.
B Remove the four screws that secure the stand column to your TV.
Which cables do you have?
Your TV has several di erent jacks for connecting devices. For the
best video quality, use the best available connection.
STOP!
VIDEO QUALITY
Do not plug your
power cord in until all
other devices have BEST
been connected.
BETTER
Component video and analog audio
GOOD
Composite video and analog audio (AV)
GOOD
Note: You can also connect a DVI device to your TV. See your online User Guide for
connection instructions.
Remote control
and two AAA batteries Features
Front view
Back view
TV stand
M4 screws
(12 mm length) (4 pcs.)
AV IN
DIGITAL L AUDIO R VIDEO / Y
- -
OUTPUT
COMPONENT IN
(COAXIAL)
Note: Images do not necessarily represent the exact design of your television.
A
Front
A
MAKING CONNECTIONS
How do I watch TV (cable or satellite box) and/or connect a device such as a DVD or Blu-ray disc
player, game console, Roku Streaming Stick™, MHL-enabled device, or camcorder?
JACK TYPE CABLE CONNECTOR Using an HDMI cable (BEST)
HDMI video/audio
Coaxial video/audio
Using component cables (BETTER)
- OR -
Using an AV cable (GOOD)
Remote control sensor
Power indicator
How do I connect my TV to an antenna or cable wall jack?
P P
B R ANT/CABLE
IN
OPTICAL
B
AUDIO/VIDEO OUT
AV IN
AV IN
L AUDIO R
DIGITAL - - VIDEO / Y P B P R ANT/CABLE
L - AUDIO - R VIDEO / Y P P
OUTPUT B IN R
COMPONENT IN
(COAXIAL)
COMPONENT IN
AUDIO/VIDEO
OUT
Note: Connect the yellow video cable
to the green VIDEO/Y jack on the back of your TV.
L IN R CVBS/Y PB PR
AV IN
DIGITAL L AUDIO R VIDEO / Y P P ANT/CABLE ANT/CABLE
- - B R
OUTPUT IN
COMPONENT IN
IN
(COAXIAL)
C
M4 (12 mm) screws
Multi-purpose jacks: You can plug any
device that uses HDMI into either
HDMI jack. However, certain devices
must be connected to the ARC/DVI
or MHL jacks. See the instructions
that came with your ARC, DVI, Roku
Streaming Stick™, or MHL-enabled
device for more information.
Note: The HDMI1 (ARC/DVI) jack is a
shared jack. This means you can only
connect one DVI or ARC device at a
time.
Note: The component and AV jacks
are shared. This means you can
Component cable option
connect only one component or AV
device at a time. We suggest upgrading
to HDMI if your device supports it.
ANT/CABLE
IN
AV cable option
CABLE
OVER
