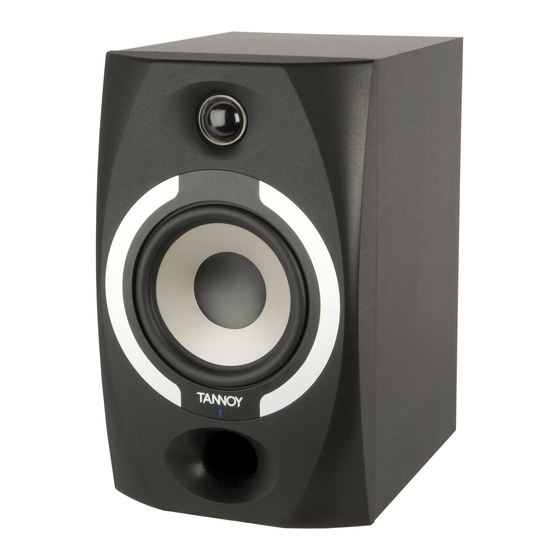

Summary of Contents for Tannoy Reveal 501a
- Page 1 owner’s manual...
-
Page 2: Table Of Contents
ConTenTs IMPORTANT SAFETY INSTRUCTIONS FUSE PROTECTION CONNETCTING THE PLUG AND CORD (UK) ELECTROMAGNETIC COMPATIBILITY wARRANTY UNPACKING CAUTION SELF ADHESIvE FEET POSITIONING SURROUND MONITORING CONNECTING YOUR SPEAKERS USER CONTROLS CABINET CARE AMP PANELS SPECIFICATIONS DECLARATION OF CONFORMITY... -
Page 3: Important Safety Instructions
1 IMPORTANT SAFETY INSTRUCTIONS read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Caution, do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 4: Fuse Protection
If you suspect a problem with your loudspeaker, please contact your local Tannoy dealer who will be able to advise on appropriate action. If you require further assistance, then we ask you to deal directly with your local Tannoy distributor. -
Page 5: Unpacking
6 UNPACKING Check carefully for any sign of transit damage. In this unlikely event, notify your shipping company and/or dealer as soon as possible for advice. It is recommended you store all the packaging to allow protected transport in future. ensure that the following accessories are present: •... -
Page 6: Surround Monitoring
If the lateral speakers are positioned close to walls then the constitution of the wall surfaces should be identical. when using either reveal 501a or 601a as the main effects speaker for the front soundstage, placement is a critical factor for good performance. -
Page 7: Connecting Your Speakers
For a bright environment, set to the -1.5dB position, and for a dull one, use the +1.5dB setting. 13 CABINET CARE The cabinet may be cleaned with a soft lint free cloth. The use of solvents or abrasive cleaners should be avoided. 14 AMP PANELS Reveal 501a Reveal 601a BACKGORUND COLOR: Black PRINTING COLOR: WHITE 6”... -
Page 8: Specifications
Shipping Dimensions (HxwxD) 418 x 266 x 321mm 468 x 302 x 366mm (16.5 x 10.5 x 12.6”) (18.4 x 11.9 x 14.4”) Shipping weight 7.1kg (15.7lbs) 9.7kg (21.4lbs) NOTES (1) +/- 3dB measured at 1m in an anechoic chamber. (2) Peak SPL at mix position for 1 pair driven. Tannoy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the published specifications, which Tannoy reserve the right to alter without prior notice. Please verify the latest specifications with critical applications. -
Page 9: Declaration Of Conformity
DECLARATION OF CONFORMITY The following apparatus is/are manufactured in China by Tannoy ltd of rosehall Industrial estate, Coatbridge, scotland, ML5 4TF. The following equipment is marked with the CE label and conform(s) to the protection requirements of the European electromagnetic Compatibility standards and Directives. The apparatus is designed and constructed such that electromagnetic disturbances generated do not exceed levels allowing radio and telecommunications equipment and other apparatus to operate as intended, and, the apparatus has an adequate level of intrinsic immunity to electromagnetic disturbance to enable operation as specified and intended. - Page 10 NOTES...
- Page 11 NOTES...
- Page 12 T: 00 49 (180) 1111 881 E: anfragen@tannoy.com Tannoy France T: 00 33 (0)1 7036 7473 E: ventes@tannoy.com TC|Group Americas T: 00 1 (519) 745 1158 E: info@tcgroup-americas.com Tannoy adopts a policy of continuous improvement and product specification is subject to change.
