Summary of Contents for KIAM aquarius Pro Valet
-

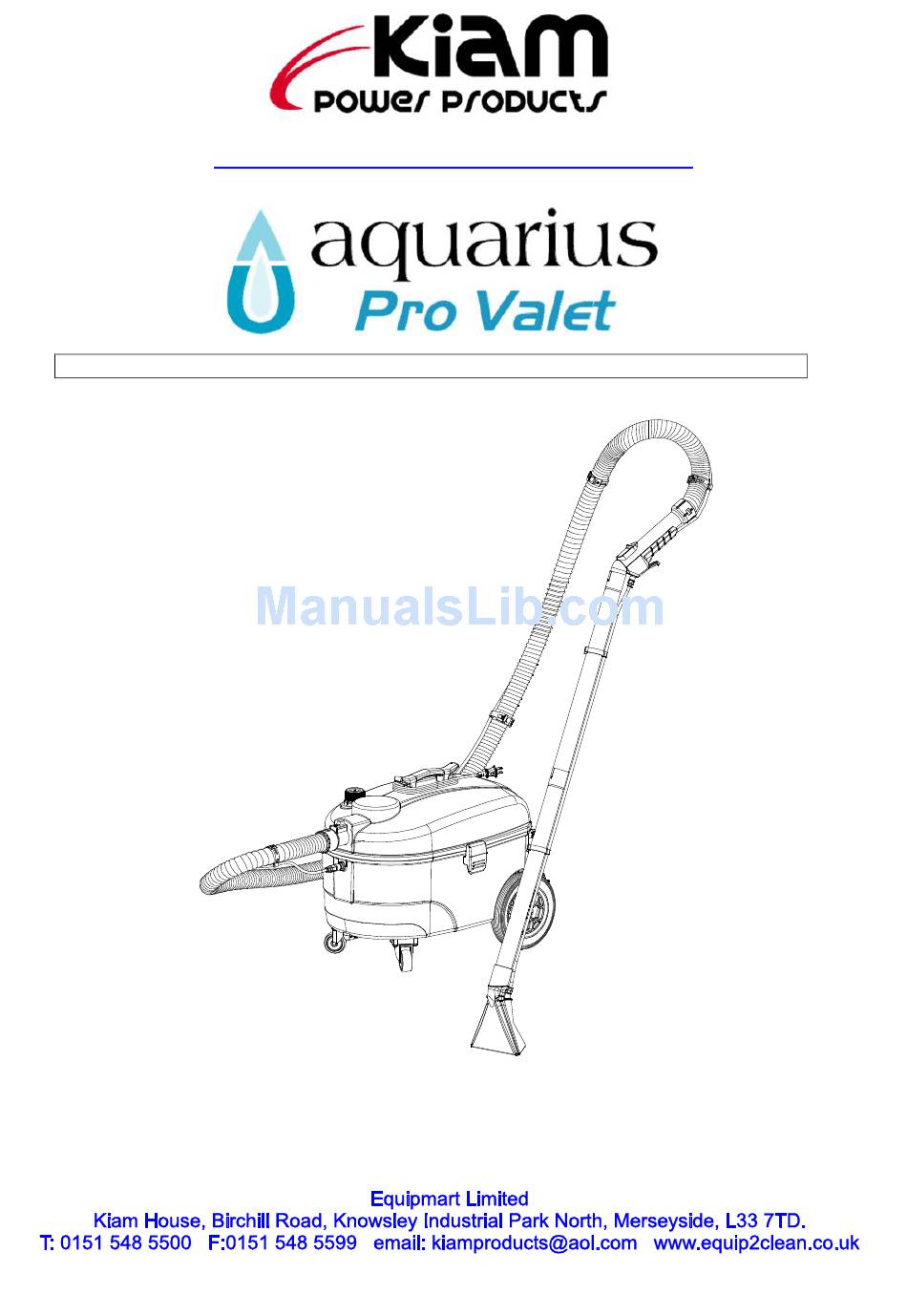

Page 1: Instruction Manual

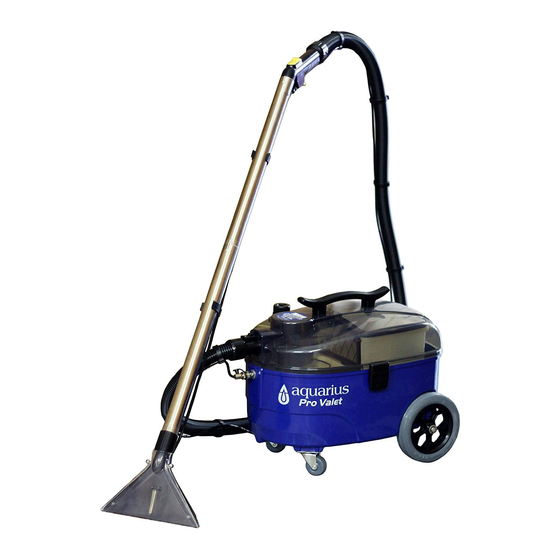

INSTRUCTION MANUAL Please read the operation instructions and precautions in this Manual before using the Cleaner. - Page 2 IMPORTANT - READ THIS INFORMATION BEFORE OPERATING THE MACHINE The Kiam Aquarius Pro Valet is designed for the spray / extraction cleaning of soiled carpets & upholstery. Widely used by professional cleaners, valeting companies and around the home, the Aquarius gives reliable performance & long life.
- Page 3 CARRYING THE MACHINE Detach the hose and wand from machine before carrying. Please ensure that all components, tanks and removable parts are securely fastened, and that the supply cable and plug are coiled up, and not trailing. All liquid should be removed from the machine before lifting. ...
- Page 4 Parts Name Handle Defoamer Hose inlet Quick joint Waste water tank Filter (female) Front wheel Body tank Rear wheel Power cable Clip Clean water tank Body cover...
- Page 5 Accessories &Tools Extension wand Floor Tool Quick joint (male) Connector Bend connector water tube Hose Upholstery tool...
- Page 6 Assembly Suction force adjustment valve Insert the vacuum hose & solution Hose release tube catch...
-
Page 7: Operating Controls
Fill the clean water tank with the low-foaming Kiam detergent and warm water up to 50 C. (NOT BOILING WATER - as boiling water will damage the internal pipework.)Take care to use correct dilution rate for the detergent. - Page 8 NEVER overfill the waste tank – as it may overflow, and damage the motor. ( This can only occur, if you refill the solution tank WITHOUT emptying the waste tank.) CLEANING UPHOLSTERY & CARPETS Firstly… Vacuum carpet thoroughly to remove any residual dust or debris. ...
- Page 9 IMPORTANT – All other servicing & repairs should only be performed by a Kiam engineer or Authorised Kiam Service centre. Tel: 0151 548 5500. CLEANING SOLUTION / DETERGENTS Only use Kiam recommended detergents to ensure the best cleaning results. AQ12 TABLETS – concentrated detergent tablets, easily dissolved for one solution tank measure AQ9 DETERGENT POWDER –...
- Page 10 The vacuum power falls. The recovery tank may be Empty recovery tank. full. Specifications Model: Aquarius Pro Valet Rated voltage: 230V solution tank capacity: 6.5L waste water tank: Rated current: 5.5A Motor power: 1100W Airflow: 46.1 l/sec Pump power:...
