QUICK
SETUP GUIDE
65" LED TV
NS-65D550NA15
Thank you
for purchasing this state-of-the-art
Insignia television. We hope you enjoy
the quality and reliability of this
television for years to come.
Roku Ready®
Your TV is certi ed to work with the

Included accessories

Roku Streaming Stick™.
Instantly stream 1000+ entertainment
channels, including Net ix, Hulu Plus,
Pandora, and more. Connect the
Streaming Stick (not included) to the
purple MHL port on your TV and enjoy.
FIND YOUR
USER GUIDE ONLINE!
We are going green so a copy of your
User Guide is not provided in the box
but is available online.
Go to www.insigniaproducts.com,
then click Support & Service. Enter your
model number in the box under Manual,
Firmware, Drivers & Product Information,
then click .

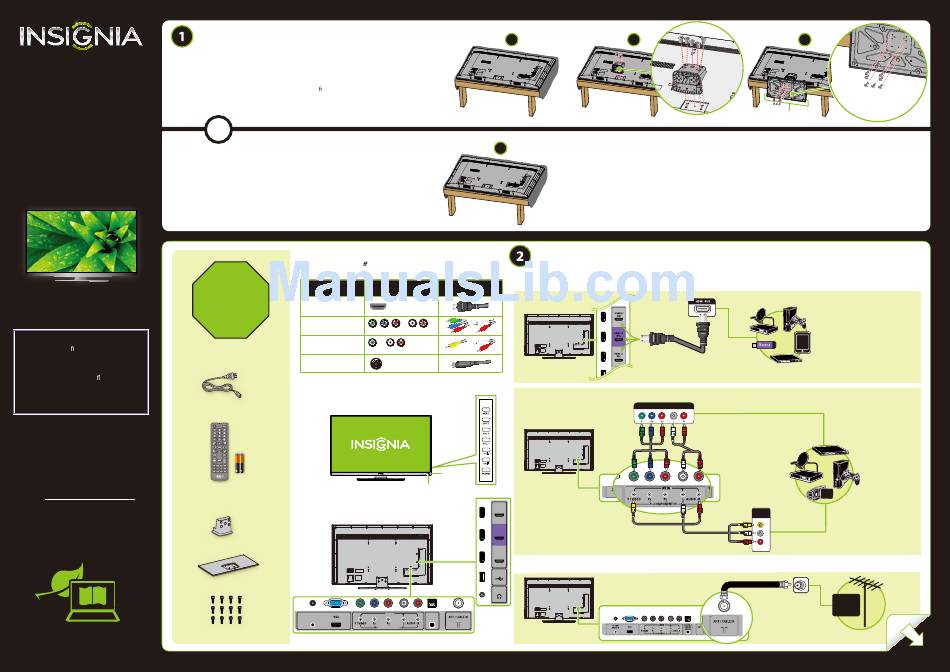

START HERE

How do I attach the stand to my TV?

(not for wall mounting)
You'll need: Phillips screwdriver and a soft surface to lay the TV on.
A Carefully place your TV face-down on a cushioned, clean surface to protect
the screen.
B Secure the stand column to the TV with ve of the provided screws.
C Find the front of the TV stand. Secure the TV stand with seven of the provided
screws.
- OR -

How do I prepare my TV for wall mounting

(not for use with a TV stand)
A Carefully place your TV face-down on a cushioned, clean surface to
protect the screen.
B See the instructions that came with your wall mount for more
information about how to correctly mount your TV.

Which cables do you have?

Your TV has several di erent jacks for connecting devices. For the
best video quality, use the best available connection.
STOP!

VIDEO QUALITY

Do not plug your
power cord in until all
BEST
other devices have
been connected.
BETTER
Component video and analog audio
GOOD
Composite video and analog audio (AV)
GOOD
Note: You can also connect a DVI device to your TV. See your online User Guide for
connection instructions.
Features
Power cord
Front view
Remote control and
two AAA batteries
Back view
Stand column
TV stand base
PC/DVI
M6 screws
(18 mm length) (12 pcs.)
Note: Images do not necessarily represent the exact design of your television.
Before using your new product, please read these instructions to prevent any damage.
A
A

MAKING CONNECTIONS

How do I watch TV (cable or satellite box) and/or connect a device such as a DVD or
Blu-ray disc player, game console, Roku Streaming Stick™, or MHL-enabled device?
JACK TYPE
CABLE CONNECTOR
Using an HDMI cable (BEST)
HDMI video/audio
Coaxial video/audio
Using component cables (BETTER)
- OR -
Using an AV cable (GOOD)
Power
indicator
Remote control sensor
HDMI 3 /
DVI
Note: Connect the yellow video cable to the
HDMI 2 /
MHL
green Y/Video jack on the back of your TV.
HDMI 1 /
ARC

How do I connect my TV to an antenna or cable wall jack?

USB
AUDIO OUT/
AV IN
DIGITAL
OUTPUT
(Optical)
COMPONENT IN
B
C
M6 screws
(18 mm )
Front
AUDIO/VIDEO OUT
Component cable option
AUDIO/VIDEO
OUT
AV cable option
M6 screws
(18 mm )
Multi-purpose jacks: You can plug any
device that uses HDMI into any HDMI
jack. However, certain devices must be
connected to the ARC, MHL, or DVI jacks.
See the instructions that came with your
ARC, MHL, or DVI device.
Note: The component and AV jacks
are shared. This means you can
connect only one component or AV
device at a time. We suggest
upgrading to HDMI if your device
supports it.
CABLE
OVER
