Summary of Contents for Albarry Music M608

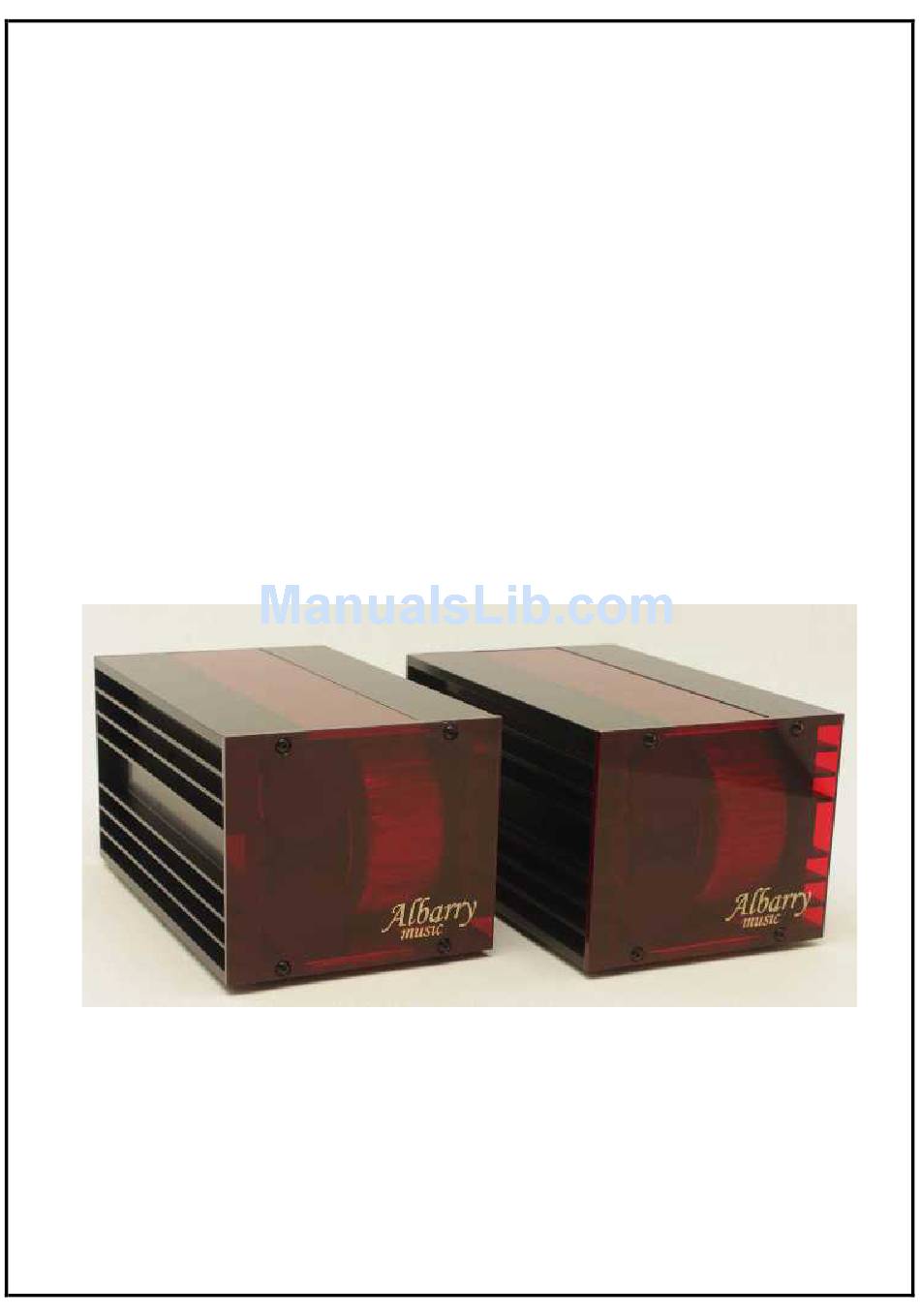

- Page 1 Albarry Music M608 User Manual...
- Page 2 Coil based speaker units. If you require them to operate with Electrostatic speakers, please contact us for information about special output filter kits. To realise the full potential of your M608's, follow this guide and consult your Albarry dealer for any additional assistance or information...
- Page 3 Installation Mains power supply Your new M608 amplifiers will normally be supplied with the IEC mains supply lead fitted with a power plug suitable to use in your area/region. Where the IEC leads are supplied with bare wire soldered ends, they must be connected using the following colour code.
- Page 4 6.3 Amp for 110-115V units (Anti-surge type) Earthing System Each M608 has an audio ground which is 'floated' 100 Ohms away from the case earth. The system audio ground should be connected to the supply earth at the pre-amplifier only. The 100 Ohm resistors...
- Page 5 Trip light position Trip reset button * Important * In order to maintain the sonic integrity of the M608, we do not include a fuse in the speaker output line. It is therefore most important to observe the normal practice of switching off the amplifier(s) or disconnection at the amplifier before changing or making speaker connections.
-
Page 6: Specifications
Remember - Always switch off the unit whilst changing or removing any speaker connections. Case Care To care for the M608 metal case and perspex, use a good quality silicon based polish applied directly to a soft cloth. Do not spray polish directly onto the amplifier. - Page 7 Production and Test certificate M608 Serial No's Build week Final test Q current P Out Burn-in and audio test Start Finish Final inspection Packed by...
