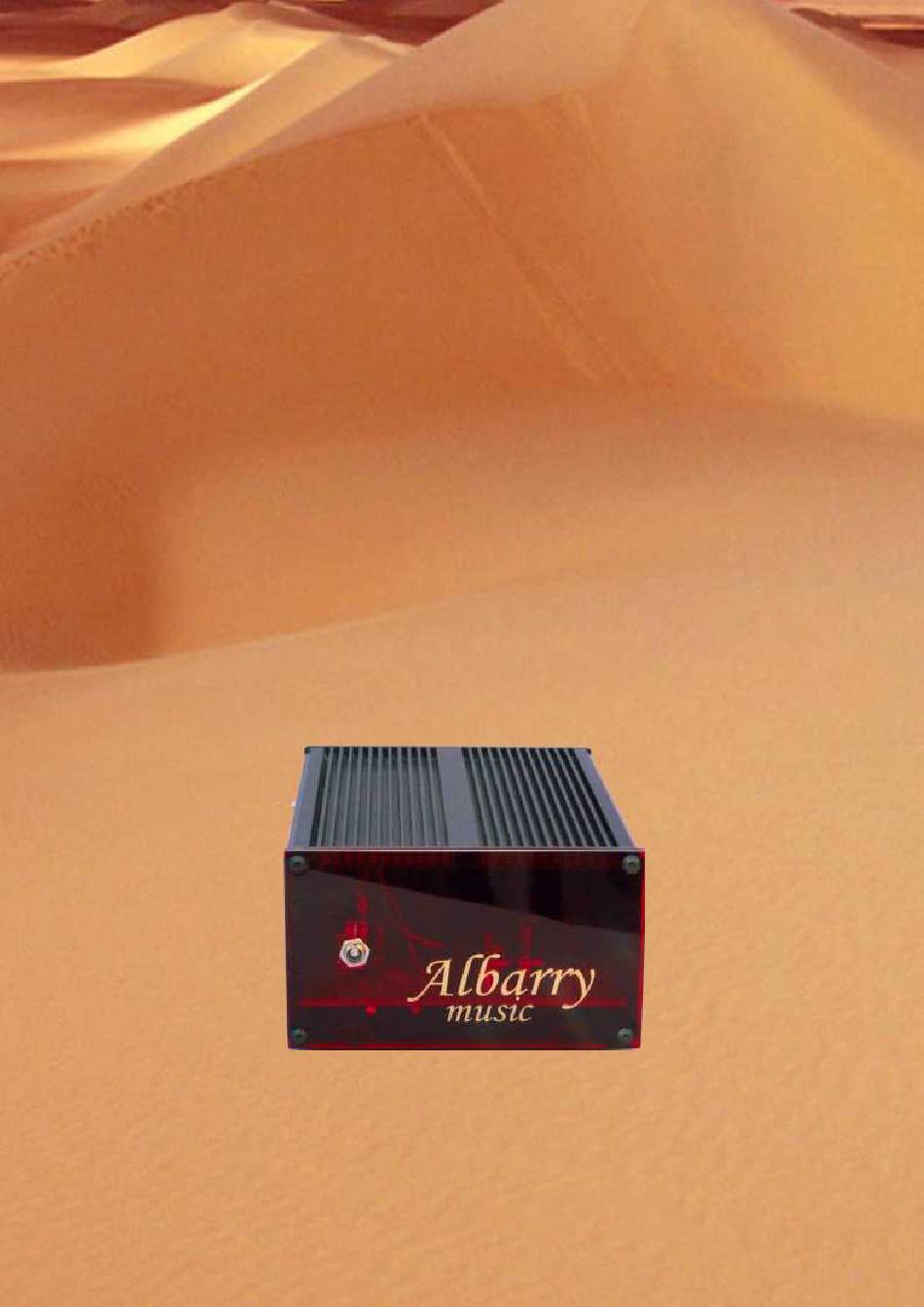

- Page 1 Albarry Music MCA11 User Manual...
- Page 2 The following guide will allow you to fully enjoy all the benefits of your new MCA11. Your new MCA11 moving coil amplifier operates using a 9-volt battery fitted into the battery holder at the back of the unit. When installing the battery, use the small lip at the bottom of the battery holder draw.
- Page 3 Audio tested Final Test and Inspection Packed by Designed and hand built in the UK Albarry Engineering Staffordshire. England 01782 507253 IEC 60065 All Albarry Music products comply with the directives laid out in Copyright Albarry Engineering 2010 - 2012...
- Page 4 User Notes Albarry Engineering Staffordshire. England 01782 507253 IEC 60065 All Albarry Music products comply with the directives laid out in Copyright Albarry Engineering 2010 - 2012...
- Page 5 This is to prevent pops or clicks in your speakers . When the MCA11 is switched on, the power on LED will be illuminated. A battery condition LED will be illuminated when the battery is in the correct useable voltage range.
- Page 6 Case Care To care for the MCA11 metal case and perspex, use a good quality silicon based polish applied directly to a soft cloth. Do not spray polish directly onto the amplifier.
- Page 7 Specifications Battery……………………………….9 volt PP3/6LF22 or equivalent. NiMH 8.4v re-chargeable recommended Battery life………………………… Dependant on type and usage cycle Monitoring LED's ……………….Less than 100 micro amps Gain …………………………………….30dB's Frequency response ……………2Hz - 170KHz Output impedance ………………500 Ohms. Input loading ………………………Internally switchable 100 Ohms - 50 Ohms - 25 Ohms (set at factory to 100 Ohms) Dimensions ………………………….L 175mm W 105mm H 65mm...
