BELLSYSTEM PRACTICES SECTION C38.670.00
Station Operations Manual Issue 1, October, 1960
Station Sets AT&TCo Standard
TELEPHONE SETS
701 AND 711 TYPES
IDENTIFICATION AND ASSEMBLY OF PARTS
1.00 INTRODUCTION 2.02

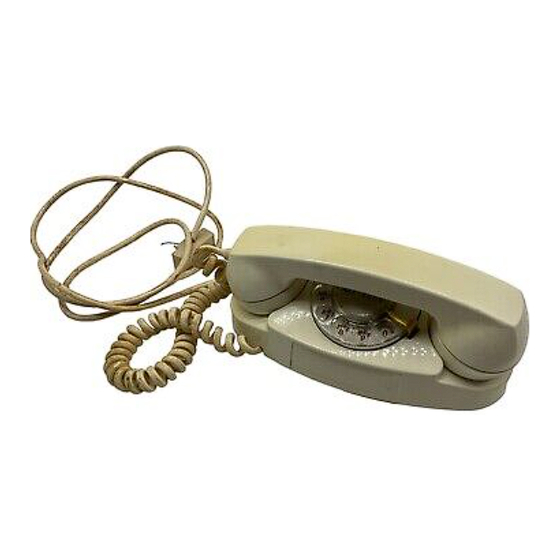

The 701B telephone set (Fig. 1) is fur-
nished wired for individual and 2-party
This section covers the 701B, 701D, and flat-rate service. Changes may be made for other
711B telephone sets (see Fig. 1 through 9). These services as follows:
telephone sets are referred to as Princess sets.
• Tip-party, message rate, flat rate with
automatic ticketing, zone registration, and
2.00 GENERAL automatic message accounting (a cord con-
ductor is moved to a different terminal as
2.01 These common battery desk-type telephone shown in the section on connections. When
sets are equipped with a lamp to illuminate no ringer is used, a coil for tip-party
the dial when the handset is removed. In addition, identification is installed in the base of the
this lamp acts as a night light under the control of telephone set. The 1610A inductor is
a switch. The 701B telephone set may be rewired expected to be available about October,
for use with 1A1 key telephone systems with 1960.
A lead control. This requires wiring changes
within the set.
Fig. 1 - 701B Telephone Set
O American Telephone and Telegraph Company, 1960
Printed in U. S.A. Page I
