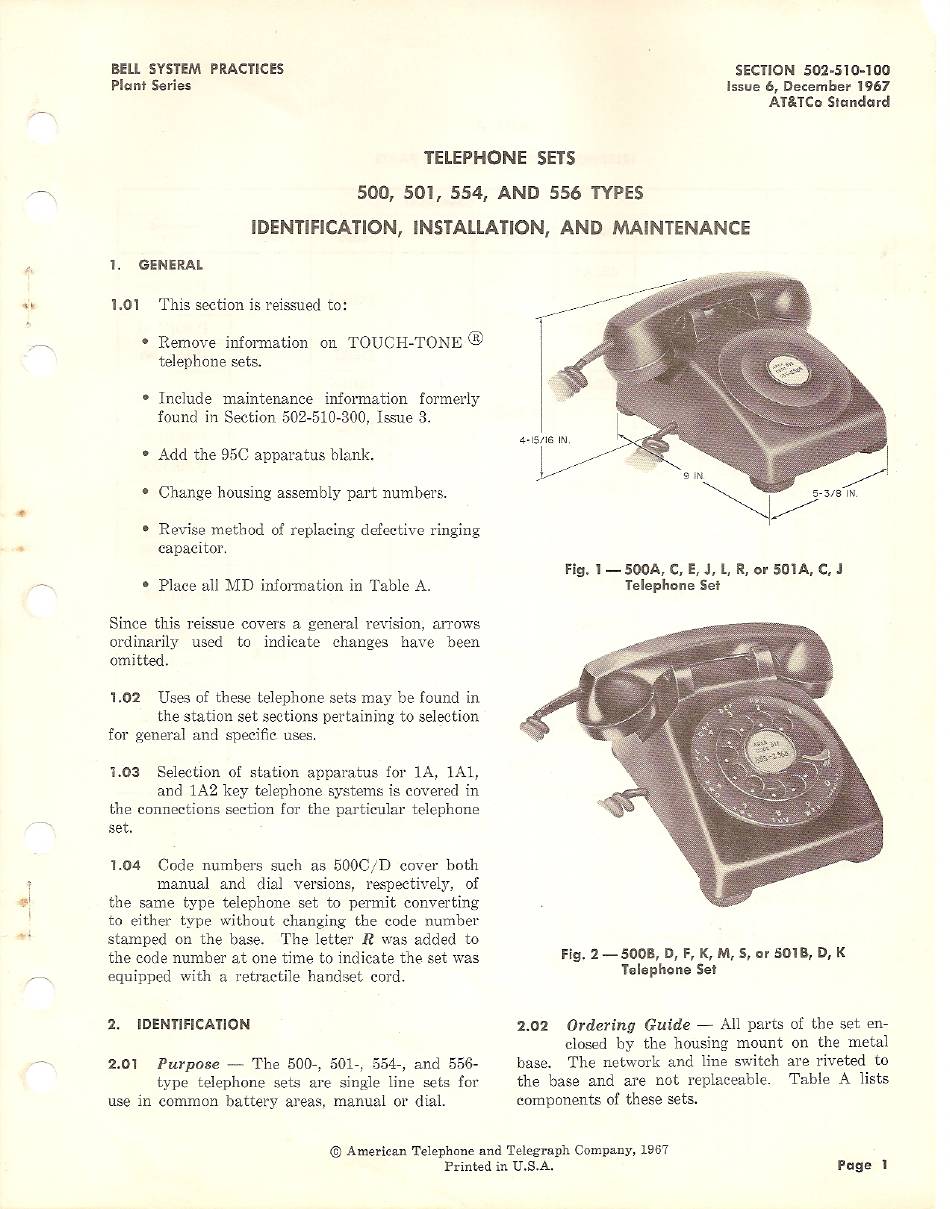

1
(!,I
i
BELL
SYSTEM
PRACTICES
Plant
Series
SECTION
502-5
1
0-1 00
Issue 6,
December 1967
AT&TCo
Standard
TELEPHONE SETS
500,
501, 554,
AND
556
TYPES
IDENTIFICATION,
INSTALLATION,
AND MAINTENANCE
1.
GENERAL
1.01
This section is reissued to:
Remove information on TOUCH-TONE®
telephone
sets.
Include maintenance
information
formerly
found
in Section 502-510-300, Issue 3.
Add the 95C apparatus
blank.
Change
housing
assembly
part
numbers.
Revise
method
of
replacing
defective ringing
capacitor.
Place all MD information in
Table A.
Since this
reissue
covers a general revision, arrows
ordinarily used to
indicate
changes
have
been
omitted.
1.02
Uses of these
telephone
sets may be found
in
·
the station set sections pertaining to selection
for general
and
specific uses.
·
"1.03
Selec~ion
of station apparatus for
1A,
lAl,
and
1A2
key telephone systems is covered
in
the connections section for the particular telephone
set.
1.04
Code
numbers
such as
500C/
D cover both
manual
and
d
ial versions,
respectively,
of
the
same type telephone set to permit converting
to either type
without
changing the code
number
stamped on
the
base.
The
let
ter
R
was added to
the code number at one time to indicate the set was
equipped with a retractile
handset
cord.
2.
IDENTIFICATION
2.0
1
Purpose
-
The
500-, 501-, 554-, and 556-
type
telephone sets are
single
line sets
for
use
in
common
battery areas,
manual or dial.
Fig.
1
-
500A,
C,
E,
J, L, R, or
501A,
C,
J
Telephone
Set
Fig.
2
-
5008, D,
F, K,
M,
S,
or 5018, D,
K
Telephone
Set
2.02
Ordering Guide
-
All
parts of
the
set en-
closed
by
the housing mount on
the
metal
base.
The network
and
line
switch
are
riveted to
the base and are not
replaceable.
Table A lists
components of
these
sets.
©
American Telephone and Telegraph Company, 1967
Printed in
U.S.A.
Page
1
