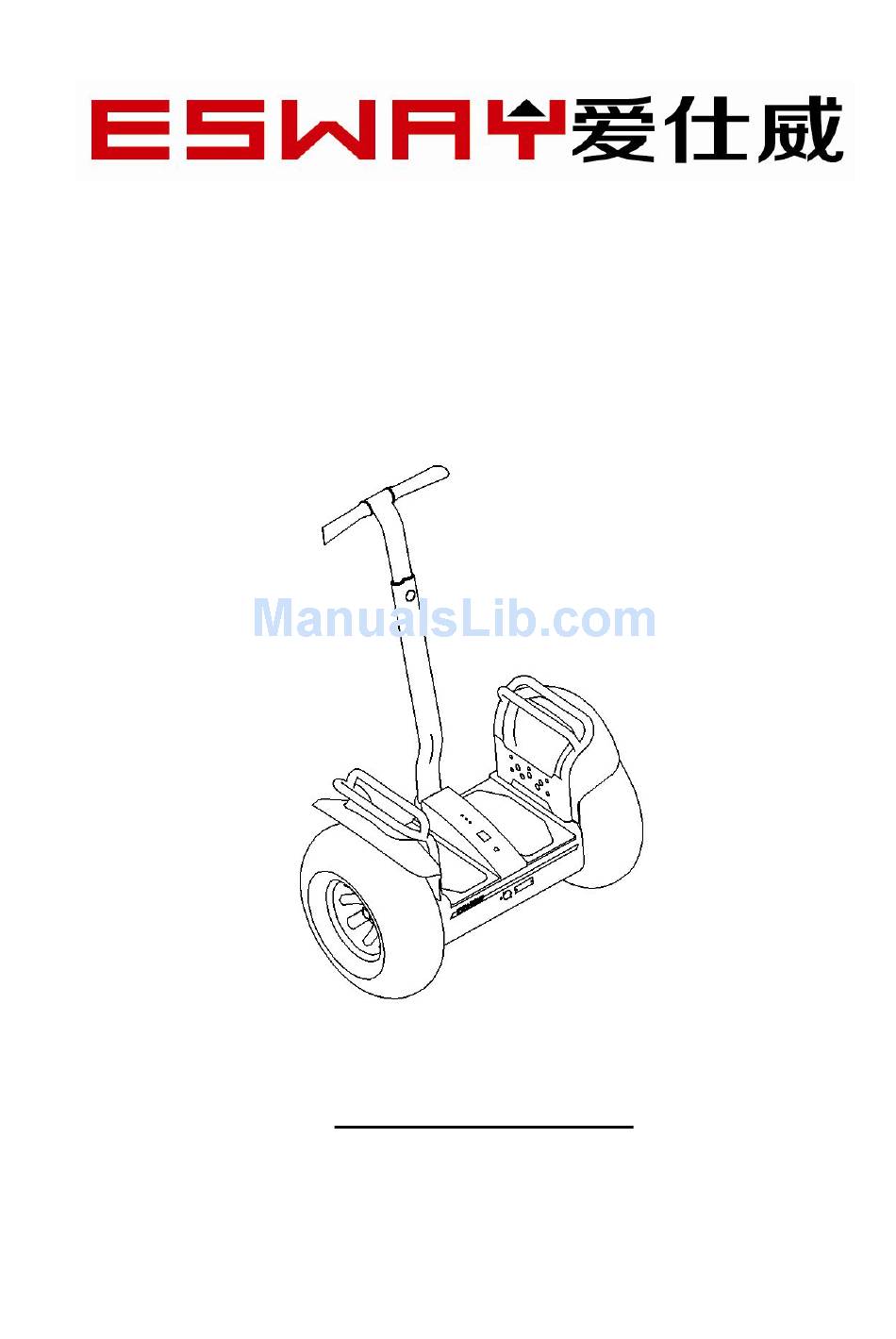

- Page 1 User Manual for ESWAY Off-road ES1350: with Lead acid battery ES1350X: with Lithium ion battery Shenzhen Ocam electronic technology co., LTD www.eswaychina.com...
-
Page 2: Safety Instructions
To ensure our Esway brings you the best driving experience, the best way is to read the user manual carefully, you will learn how to drive the future transporter. After reading, please keep the user manual well so that you can refer to it any time when you need. -
Page 3: Table Of Contents
Contents Chapter I Introduction of Esway ........... Chapter II Parts Explanation ..........Chapter III Instruction of remote control of Esway ...... Chapter IV Getting Started ..........Chapter V Esway Driving ..........Chapter VI Charging ............Chapter VII Maintenance ..........Chapter VIII Notice ............ -
Page 4: Chapter I Introduction Of Esway
When the driver leans his body forward, Esway will run forward, when the body is upright, it will stop. It uses the dynamic balance principle, as the body moves to change the center of gravity so as to keep balance. -
Page 5: Chapter Ii Parts Explanation
Picture 1 Handle Bar/Turning Pipe (1)Used to control and make the Esway turn left or right, turn around, rotate 360 degrees. It also has support function and can play a subsidiary role in keeping body balance. (2) The height is adjustable. The driver can adjust it according to his or her own height to make the handle bar comfortable. - Page 6 (2) It is dangerous to stand on Esway without turning on the power. 3. Pedal Switch (SAFE switch) (1)The pedal can be active up or down, it has a built in safety switch. Esway can check whether someone on scooter by pedal switch.
-
Page 7: Chapter Iii Instruction Of Remote Control Of Esway
Button 3 and Button 4 at the same time, after two beep sounds, Esway will remember it as default position level. Attention: (1)Keep Esway horizontal and power on it, press pedal switch, you can drive Esway without remote control. (2)Default mode is Normal Mode (12KM speed limited, turning sensitive is mid). -
Page 8: Chapter Iv Getting Started
(refer to picture 3,4,5). Then hold the handlebar firmly with two hands (refer to picture 6). Make sure the pedal is on horizontal level when power on, because Esway cannot power on if it is not on horizontal level. - Page 9 2. Wrong Starting Operation (refer to picture 7 and 8 ) Esway cannot power on if it is not on horizontal level, so we must make sure the pedal is on horizontal level, then power on it. Picture 7 Picture 8...
-
Page 10: Chapter V Esway Driving
Esway is very addictive once you enjoy the fun of driving, you could not stop driving whenever you get the chance. The following instructions will be beneficial for your enjoyment. - Page 11 - left foot - right foot - left hand. By this time you will have stood on the balance scooter. Stand upright without any movement, just relax and keep your body balance, then Esway will stay stably (refer to picture 15).
- Page 12 (refer to picture 16). The driving speed is controlled by the leaning angle of your body. Lean forward more, Esway will go faster and vice versa. For a stable driving, we suggest you lean slowly forward little by little. It is very dangerous if lean forward suddenly, since it likes a sudden acceleration when driving a car.
- Page 13 4. Turning in Original Place, Turn Around and Rotate 360° It is easy to turn the Esway when driving. Keep the turning pipe/handle bar left-forward or right-forward to the end, at the same time keep your body correspondingly left-forwarded or right-forwarded as the trend of Esway (refer to picture 18 and 19).Thus...
- Page 14 To turn left, the turning pipe should be swung smoothly to the left at the same time as your body leans left. The angle of Esway's turn is decided by the swinging angle of the turning pipe and the leaning of your body.
-
Page 15: Chapter Vi Charging
Firstly, turn off the power switch and use the specialized 36V battery charger. Insert the plug into Esway's charge jack. Then turn on the power. When charger is connected, the Red light will glow continuously, showing Esway is in charge mode (refer to picture22). -
Page 16: Chapter Vii Maintenance
Please turn off the power switch and lock the key in case of accidental starting. 3. Replacing Fuse The fuse of Esway is 50A car type, the fuse may be burned when overload or hit sharply. When you find there is no reaction, and the indicator is off after switching on, check the fuse if it burnt out, then you need to replace one. -
Page 17: Chapter Viii Notice
Turn the power off immediately if Esway poured into water accidentally. Do not drive it again if you are not sure of the default. The Esway weighs 55kg, you can take it home easily without help; and please contact us for after-service guide. -
Page 18: Chapter Ix Indicator And Sound Alarm
(the pedal switch is pressed down). Then try to test it by powering on Esway again, if alarm sound and lights blinking are still there, please contact the technicians. -
Page 19: Chapter X Technical Data
Always keep battery charged before it is fully run out (red light is continually on). It is harmful to battery and will reduce battery’s life. Chapter X Technical Data Model ES1350 / ES1350X Dimension 83 *47 *60 cm Net Weight 55 kg / 46.5 kg...
