Related Manuals for ESWAY ES-1401 Cross Country
Summary of Contents for ESWAY ES-1401 Cross Country

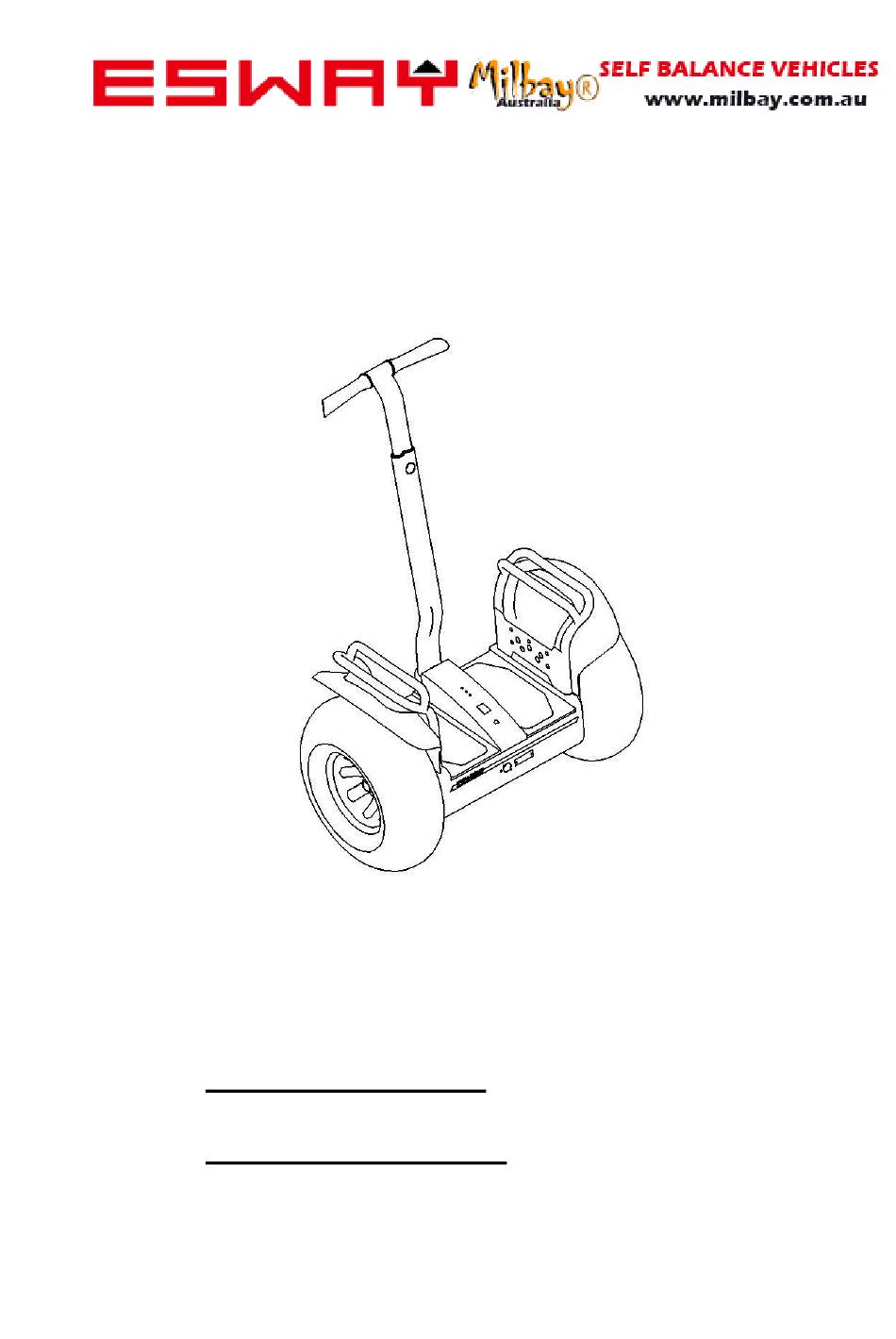

- Page 1 User Manual for ESWAY ES-1401 Cross Country Shenzhen Ocam electronic technology co., LTD Imported by Milbay Australia www.milbay.com.au www.eswaychina.com...
- Page 2 To ensure our Esway brings you the best driving experience, the best way is to read the user manual carefully, you will learn how to drive the future transporter. After reading, please keep the user manual well so that you can refer to it any time when you need.
-
Page 3: Table Of Contents
Contents Chapter I Introduction of Esway..........3 Chapter II Parts Explanation ............ 4 Chapter III Instruction of remote control of Esway ....... 5 Chapter IV Getting Started ............6 Chapter V Driving ............... 8 Chapter VI Charging ............12 Chapter VII Maintenance ............13 Chapter VIII Notice ............ -
Page 4: Chapter I Introduction Of Esway
When the driver leans his body forward, Esway will run forward, when the body is upright, it will stop. It uses the dynamic balance principle, as the body moves to change the center of gravity so as to keep balance. -
Page 5: Chapter Ii Parts Explanation
Picture 1 Handle Bar/Turning Pipe (1)Used to control and make the Esway turn left or right, turn around, rotate 360 degrees. It also has support function and can play a subsidiary role in keeping body balance. (2) The height is adjustable. The driver can adjust it according to his or her own height to make the handle bar comfortable. -
Page 6: Chapter Iii Instruction Of Remote Control Of Esway
(2) It is dangerous to stand on Esway without turning on the power. 3. Pedal Switch (SAFE switch) (1)The pedal can be active up or down, it has a built in safety switch. Esway can check whether someone on scooter by pedal switch. -
Page 7: Chapter Iv Getting Started
(refer to picture 3,4,5). Then hold the handlebar firmly with two hands (refer to picture 6). Make sure the pedal is on horizontal level when power on, because Esway cannot power on if it is not on horizontal level. - Page 8 Picture 6 2. Wrong Starting Operation (refer to picture 7 and 8 ) Esway cannot power on if it is not on horizontal level, so we must make sure the pedal is on horizontal level, then power on it. Picture 7...
-
Page 9: Chapter V Driving
Driving the Esway 2 wheel self-balance vehicle is totally different from anything you may have driven before, Esway does not have a brake, accelerator or gear system. Please read the user manual or get instruction from an experienced person for your first driving. Esway... - Page 10 The following instructions will be beneficial for your enjoyment. Below description will be helpful to your driving. Tip: We suggest you use Beginner Mode if you did not driver our Esway before. We are offering you Esway Off-road balance scooters driving detail as below:...
- Page 11 (refer to picture 16). The driving speed is controlled by the leaning angle of your body. Lean forward more, Esway will go faster and vice versa. For a stable driving, we suggest you lean slowly forward little by little. It is very dangerous if lean forward suddenly, since it likes a sudden acceleration when driving a car.
- Page 12 3. Braking, Driving Backward Driving backward is not recommended for the driver's safety, because it is hard for you to see behind when driving. Turning radius of Esway is zero, which you can easily achieve in a continuous spin around 360 at one spot.
-
Page 13: Chapter Vi Charging
To turn left, the turning pipe should be swung smoothly to the left at the same time as your body leans left. The angle of Esway's turn is decided by the swinging angle of the turning pipe and the leaning of your body. -
Page 14: Chapter Vii Maintenance
1. The Maintenance of Battery Esway use BTM free maintenance battery. When you find the orange light and red light are continuously on, please do charging in soon. Keep the charge time no more than 15 hours. -
Page 15: Chapter Viii Notice
3. Replacing Fuse The fuse of Esway is 50A car type, the fuse may be burned when overload or hit sharply. When you find there is no reaction, and the indicator is off after switching on, check the fuse if it burnt out, then you need to replace one. Open the fuse cover at the back of body with screwdriver, take out the burnt fuse and replace with a new one. -
Page 16: Chapter Ix Indicator And Sound Alarm
Turn the power off immediately if Esway poured into water accidentally. Do not drive it again if you are not sure of the default. The Esway weighs 55kg, you can take it home easily without help; and please contact us for after-service guide. -
Page 17: Chapter X Technical Data
(the pedal switch is pressed down). Then try to test it by powering on Esway again, if alarm sound and lights blinking are still there, please contact the technicians. - Page 18 Height of footplate/pedal 27 cm Max height Of off-ground/chassis 16 cm ≤30° Max climbing degree Standard Tire Pressure 250 kpa Battery Indicator 3 states show Fully Charging time 6~8 H /3~6 H Packing Size 85 * 49 * 65 cm...
