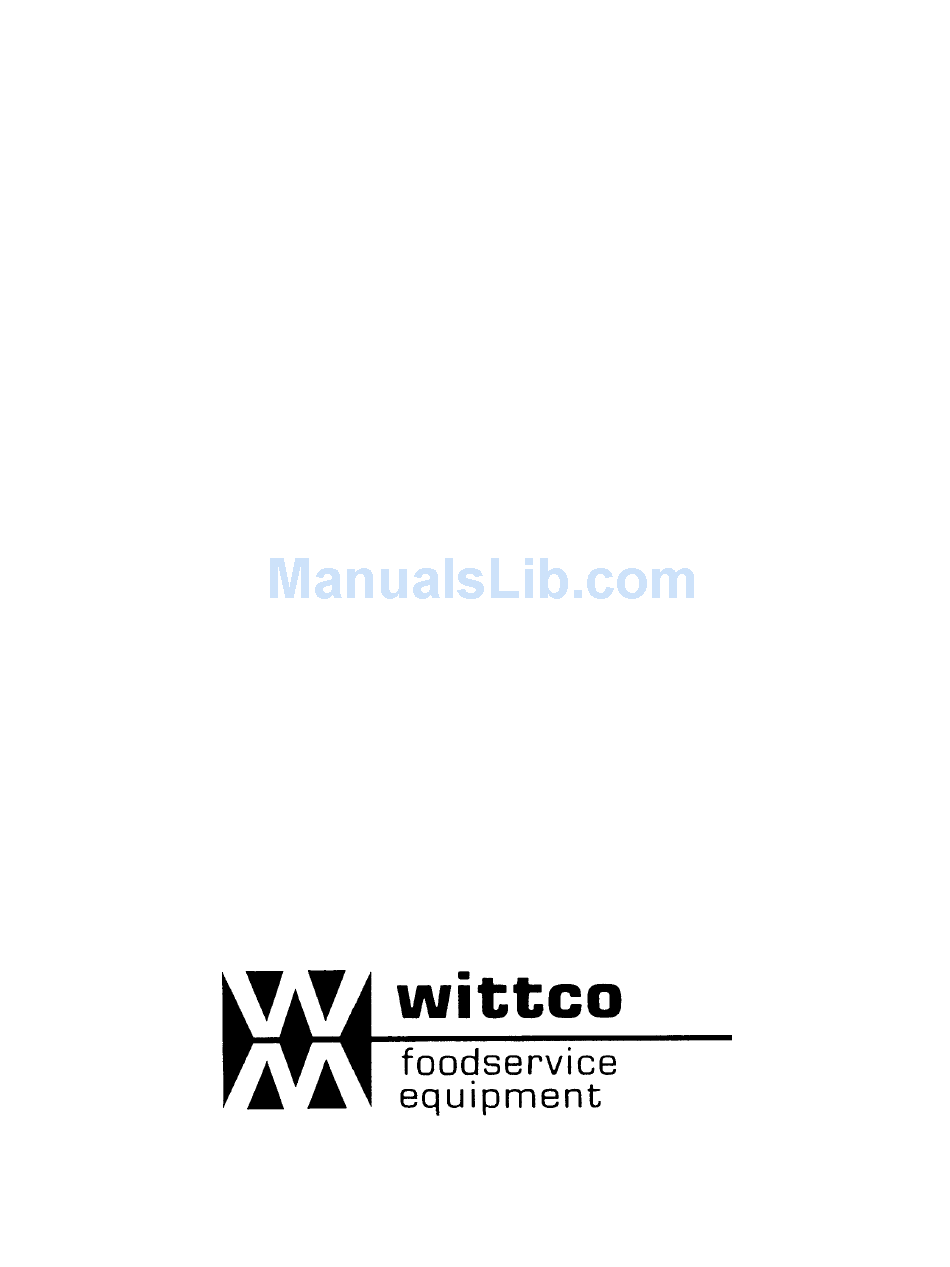

- Page 1 O P E R A T I O N S MAINTENANCE MANUAL FOOD HOLDING & TRANSPORT CABINETS WITTCO MODEL NUMBERS 1826-7-DBL 1826-7-DBL-IS...
-
Page 2: Limited Warranty
Products, as defined by Wittco, shall be delivered by Buyer, at its sole expense, to the nearest Wittco authorized service agency for replacement or repair. Wittco reserves the right to accept or reject any such claim in whole or in part. Wittco will not accept the return of any Product without prior written approval from Wittco, and all such approved returns shall be made at Buyer's sole expense. - Page 3 Wittco model number indicated on the equipment serial data plate located at the electrical connection. Wittco serial number indicated on the equipment serial data plate. The equipment serial number will also have two (2) alpha characters immediately following the serial number. These alpha characters are part of the serial...
- Page 4 It is our sincere desire that you obtain the maximum benefit from your Wittco heated holding and transport cabinet. If at any time questions arise or additional information is required, contact Wittco at 800 367-8413.
-
Page 5: Unpacking The Cabinet
Each Wittco Foodservice Equipment cabinet is packed in a cardboard carton which, in turn, is banded to a wooden pallet. When the cabinet is received by the operator, the carton should immediately be inspected for any sign of visible exterior damage. If carton is punctured or dented, it may be an indication that the cabinet has sustained concealed freight damage. -
Page 6: Replacement Of Electrical Components
The tray slides should be removed and cleaned in a sink if necessary. Never use harsh chemicals or abrasive pads to clean the cabinet. REPLACEMENT OF ELECTRICAL COMPONENTS It is highly recommended that only Wittco Foodservice Equipment replacement parts be used to insure compatibility of component parts in the operation of holding and transport cabinet. - Page 7 THERMOSTAT REPLACEMENT (CON'T) Disconnect the wire leads connected to the thermostat. Loosen the screws holding the temperature sensing bulb and remove it from the interior of the cabinet. The temperature sensing bulb must be replaced whenever the thermostat is replaced. Remove the two screws on the front of the control panel that hold the thermostat in place and remove it.
- Page 8 HEATING ELEMENT REPLACEMENT 1. DISCONNECT THE CABINET FROM ITS POWER SOURCE. 2. Open the door to the cabinet. 3. Remove the bottom mounted element cover. Remove the retaining screws securing the element to the interior rear of the cabinet. Gently pull the element from is housing until the electrical lead wire connectors are exposed. Disconnect the defective element at the electrical lead wire connectors.
-
Page 9: Wiring Diagram
DRAWING TITLE 1826-7-DBL WIRING DIAGRAM 120V. 1PH. 60 HZ... -
Page 10: Replacement Parts List
WITTCO FOODSERVICE EQUIPMENT INC. REPLACEMENT PARTS LIST WTTTCO SERIES - HOLDING/TRANSPORT CABINETS 6/18/98 MODEL NUMBER AND QUANTITY REQUIRED WITTCO PART DESCRIPTION PART NO. 1826-7-DBL WP-113-E BUMPER, ALUMINUM EXTRUSION ONLY (NO VINYL) WP-113-V BUMPER, BLACK VINYL ONLY (NO EXTRUSION) WP-079 CARD HOLDER 3"x 5"... -
Page 11: Part Description
MODEL NUMBER AND QUANTITY REQUIRED WITTCO PART DESCRIPTION PART NO. 1826-7-DBL WP-174 INSPECTION CAP, CHROME WP-106-1 LIGHT, INDICATOR DUAL 125 VOLT (AMBER/RED) WP-106-2 LIGHT, INDICATOR DUAL 250 VOLT (AMBER/RED) WP-302-7L RACKS, INT. SIDE UPRIGHT (LEFT) WP-302-7R RACKS, INT. SIDR UPRIGHT (RIGHT) - Page 12 MODEL NUMBER AND QUANTITY REQUIRED WITTCO PART DESCRIPTION PART NO. 1826-7-DBL-IS WP-113-EI BUMPER, ALUMINUM EXTRUSION ONLY (NO VINYL) WP-113-VI BUMPER, BLACK VINYL ONLY (NO EXTRUSION) WP-079 CARD HOLDER 3" x 5" WP-114-4R CASTER 4" HEAVY DUTY RIGID WP-114-4S CASTER 4" HEAVY DUTY SWIVEL W/BRAKE WP-114-5R CASTER 5"...
- Page 13 MODEL NUMBER AND QUANTITY REQUIRED WITTCO PART DESCRIPTION PART NO. 1826-7-DBL-IS WP-174 INSPECTION CAP, CHROME WP-106-1 LIGHT, INDICATOR DUAL 125 VOLT (AMBER/RED) WP-106-2 LIGHT, INDICATOR DUAL 250 VOLT (AMBER/RED) WP-316-L RACKS, INT. SIDE UPRIGHT (LEFT) WP-316-R RACKS, INT. SIDE UPRIGHT (RIGHT)
