Summary of Contents for Eco Range Range cooker

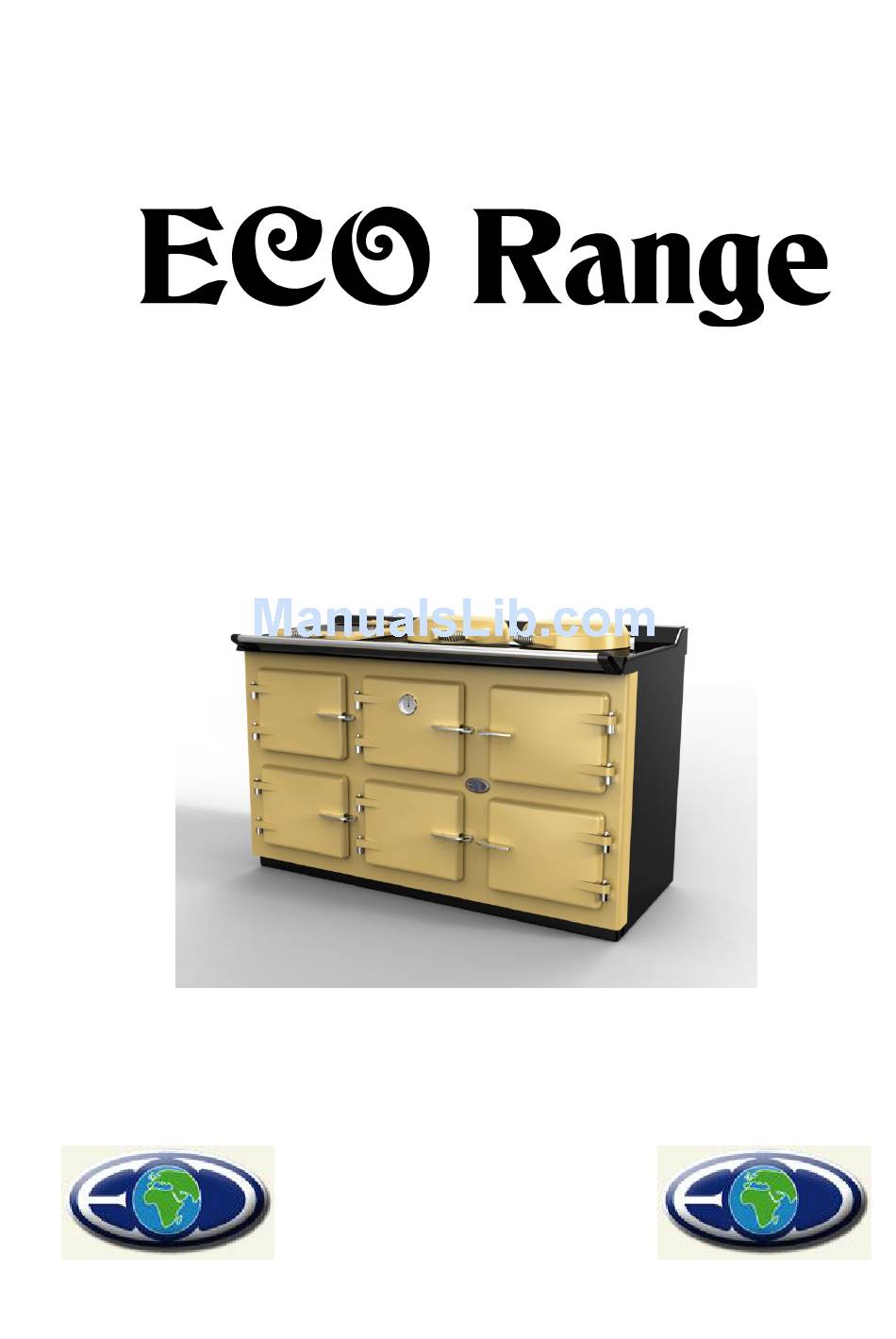

- Page 1 Installation Instructions & User Manual Wood Pellet burning cooker Please retain these instructions for future reference.
-
Page 2: Technical Data
WARNING The ECO range cooker is wood pellet burning only, no attempt should be made to burn any other fuel, including all types of coal, grain or seed. Under no circumstances should liquid fuels be added. It is not an incinerator and rubbish including painted, tanalised wood and MDF should not be burnt in this appliance. -
Page 3: Appliance Details
** Whilst you can reduce the side gaps right down because the LFH is the cool hopper and the RHS the oven, we recommend a 50mm/2” gap to cupboards. A removable front fill piece can then be used to close the gap. This allows good air circulation and help when moving the cooker for any major maintenance. - Page 4 General use: Adjust time clock if fitted to the desired times, (usually the same as you central heating). Leave the cooker on say 100C, the cooker will heat up to the temperature set and maintain that temperature whilst the clock calls for it. To cooker just turn up to you desired temperature say 180C and the burner will fire and take the oven up to that temperature.
-
Page 5: Installation Instructions
When installing these appliances, all local regulations, including those referring to national & European Standards need to be complied with. This manual covers the ECO Range wood pellet cooker appliance. The nominal space heating output is: 4kW The above appliances must be installed by a HETAS registered installer and the installation registered with the local council. - Page 6 The appliances should not be fitted closer than shown in the chart, from combustible materials, e.g. a wooden fire surround or stud wall. When fitted against a wall made of combustible material e.g. a wooden stud wall with plasterboard, if the distance is less than the safe distance specified, extra non-combustible material of 75mm (min.) should be fitted behind the stove.
- Page 7 Smokeless Zone’s The ECO Range 3 oven pellet cooker is almost certainly the cleanest wood burning cooker in the world and so is DEFRA approved for burning wood in ‘smoke less’ zone in cities in the UK. Commissioning of the ECO Range wood pellet fired cooker appliance...
-
Page 8: Troubleshooting
only top grade pellets should be used, preferable made from virgin soft wood. If hard wood pellets are to be use, a service technician with a gas analyser will be required to possibly adjust the air/fuel ratio. the hopper will require filling from between every 2 days to every month depending on the time of year/usage. - Page 9 Lack of draught: A chimney is like a hot air balloon, the air inside want to rise up as it is hotter that the air outside. The 2 things that determine the performance of a hot air balloon are the size of the balloon, which equates to the height and diameter of your flue, and the temperature of the air inside, which equates to the quality of the chimney.
- Page 11 The ECO Range Cooker is designed by Thornhill ECO Design Ltd, a designer company from Canterbury, UK, that specializes in efficient, clean & green cookers and stoves. ECO Range Cookers 60 Wincheap Canterbury Kent CT1 3RS www.ecorangecooker.co.uk...
