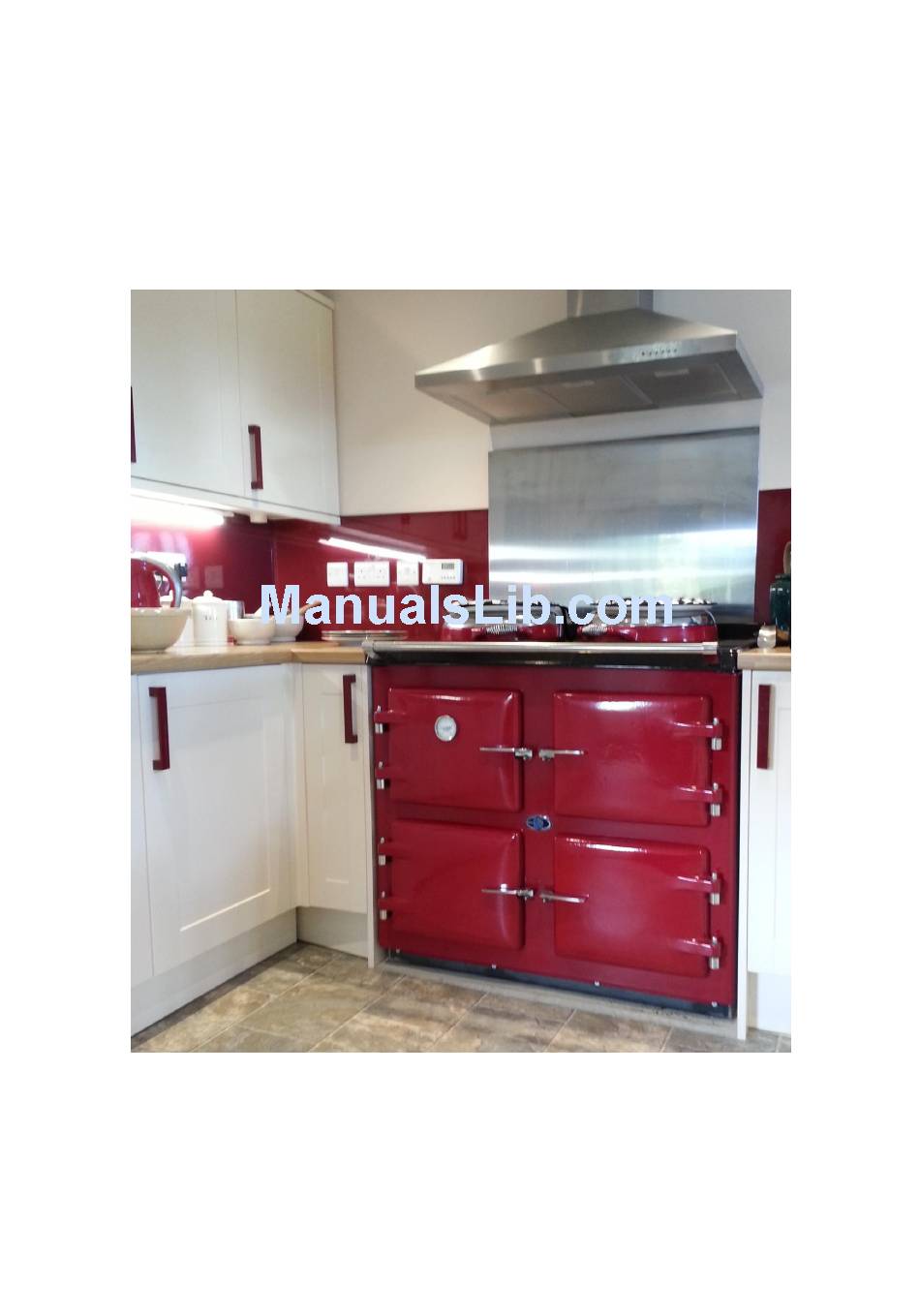

ECO RANGE
3 oven oil fired Cooker
For use in Great Britain and Eire (GB & IE)
Instructions for Use, Installation and
Servicing
This appliance must be installed in accordance with the regulations in force and only used in
an adequately ventilated space. Please read these instructions before installation and use and
retain for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECOFLAM MAX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eco Range ECOFLAM MAX

Summary of Contents for Eco Range ECOFLAM MAX

  • Page 1 ECO RANGE 3 oven oil fired Cooker For use in Great Britain and Eire (GB & IE) Instructions for Use, Installation and Servicing This appliance must be installed in accordance with the regulations in force and only used in an adequately ventilated space. Please read these instructions before installation and use and...

  • Page 2: Safety Instructions

    A competent heating and plumbing engineer must check/install the oil line for the cooker. The warranty of your Eco Range Cooker applies to products sold in the UK and Eire only. For products sold outside of these areas please contact the manufacturer for details warranty authorisation.
  • Page 3  Do not place combustible materials onto the hot plate surfaces even when the cooker is off.  Your Eco Range Cooker should be serviced at least once every twelve months. It is impossible to service your cooker while it is hot, therefore DO NOT use your appliance 12 hours before a service is required.

  • Page 4: Technical Specification

    Safety Notices and Regulations  The Building Regulations – Part J England and Wales – Part F section III Scotland – Part L Northern Ireland – Part J Ireland.  BS5440 Parts 1 and 2 Installation of Flues and Ventilation. ...
  • Page 5 Ovens 3 of each – Height 270mm Depth 500mm Width 345mm Your cooker is fitted with a thermostatic control device. This operating system provides the exact heat requirements selected (by the user) for cooking and reduces the overall oil consumption. The user selects the desired cooking temperature and when the cooker approaches the selected operating temperature the thermostatic control operates to turn off the burner flame to maintain a steady temperature.

  • Page 6: Delivery And Transport

    CAUTION: Cleaning of the Eco Range Cooker should only be carried out when the appliance has cooled down. The Eco Range cooker should be wiped over daily with a damp soapy cloth. The enamel should then be dried and polished with a soft dry cloth to avoid streaking. Any spillages should be wiped up immediately to prevent hardening of deposits which would make removal difficult at a later stage.

  • Page 7: Balanced Flue

    The warranty will become invalid if you strip and rebuild the cooker yourself. 5.1 Site Considerations 1. Sufficient space for appliance, so that access for service and maintenance purposes can be easily attained. 2. Provision of a satisfactory flue/chimney/cowl. 3. A sold non-combustible hearth capable of supporting the appliance. 4.
  • Page 8 5. With the supplied tape and silicon make a seal on the inner and outer pipes. Push into the cooker, whilst making sure no excess sealant has leaked that may block the cooker spigots. Ensure minimum of 3º drop. 6. With suitable material make a good flue hole. 7.
  • Page 9 BURNER LOCKOUT The burner has an independent control system (Burner Control Box); this includes a flame detector (Photocell), which senses the presence of a flame. In the event of a flame failure, the burner control box activates a second re-ignition sequence. Should the photocell not detect a flame presence within 15 seconds the burner goes to LOCKOUT and shuts down.
  • Page 10 Sound levels should be discussed with the householder, as some people may be sensitive to low noise levels in a small room, as is may appear more annoying than in larger rooms. Please Note installation should take into account of flue position (see diagram). RECOMMENDED FLUE POSITION...
  • Page 11 OIL SUPPLY BOILER FULL LEVEL Plaslic tank -shown Stealtankalso -su-:tabfe Single Pipe Oil System TYPICAL SYSTEM SHOWN Diagrams of 1 win pipe supply sys1ems BOILER FIRE VAL.:\IE SENSOR ALTERN ATIVE POSITION ..!. TANK Plastic tank shJwn steel tank also sui 1 abla BOILER VENT...

  • Page 12: Burner Settings

    Draught Limit Min 12.5 Nm – 0.12” WG Max 33.0 Nm Note: 28 sec fuel must only be used on ECO Range Cookers & boilers SERVICING INSTRUCTIONS A competent service engineer OFTEC registered should be appointed on an annual basis. ...
  • Page 13 SMOKE 9 - 11.5 FLUE GAS °C TEMPERATURE Electrical Power 230/240 V 50 Hz Fuse 5 amp THE HEARTH The temperature of the surface below the boiler is less than 100°C. If the floor under the boiler is of combustible material, then protection such as steel should be fitted between the boiler and the floor. Consideration should be given to the weight of the cooker, approx 450kG;...
  • Page 14 Part 1 is read and fully adhered to. The following warranty registration page should be completed by the installer, signed by the customer and returned to ECO Range Cookers. The installer should re-check the cooker and ensure everything is completely satisfactory before demonstrating the operation of the cooker to the householder.

  • Page 15: Warranty Registration

    Town: County: Postcode: Technician's Signature Cooker Burner pressure psi CO2% CO ppm Electrical Safety Before leaving Eco Range Cookers this unit was: Checked By: Date: Please return this completed page to: Eco Range cookers 60 Wincheap Canterbury Kent CT1 3RS...

  • Page 16: Service Record

    SERVICE RECORD Appliance Model Serial Number Date of Service: ENGINEER DETAILS Engineer's Name: (in BLOCK CAPITALS) Engineers Registration Number Engineer's Signature Date COMBUSTION ANALYSIS Cooker Pump pressure CO ppm Flue Gas Temperature CO/CO2 Efficiency % Engineer's Comments: Jet Changed PARTS REPLACED: Jets should be changed annually.
  • Page 17 SERVICE RECORD Appliance Model Serial Number Date of Service: ENGINEER DETAILS Engineer's Name: (in BLOCK CAPITALS) Engineers Registration Number Engineer's Signature Date COMBUSTION ANALYSIS Cooker Pump pressure CO ppm Flue Gas Temperature CO/CO2 Efficiency % Engineer's Comments: Jet Changed PARTS REPLACED: Jets should be changed annually.
  • Page 18 SERVICE RECORD Appliance Model Serial Number Date of Service: ENGINEER DETAILS Engineer's Name: (in BLOCK CAPITALS) Engineers Registration Number Engineer's Signature Date COMBUSTION ANALYSIS Cooker Pump pressure CO ppm Flue Gas Temperature CO/CO2 Efficiency % Engineer's Comments: Jet Changed PARTS REPLACED: Jets should be changed annually.
  • Page 19 SERVICE RECORD Appliance Model Serial Number Date of Service: ENGINEER DETAILS Engineer's Name: (in BLOCK CAPITALS) Engineers Registration Number Engineer's Signature Date COMBUSTION ANALYSIS Cooker Pump pressure CO ppm Flue Gas Temperature CO/CO2 Efficiency % Engineer's Comments: Jet Changed PARTS REPLACED: Jets should be changed annually.
  • Page 20 SERVICE RECORD Appliance Model Serial Number Date of Service: ENGINEER DETAILS Engineer's Name: (in BLOCK CAPITALS) Engineers Registration Number Engineer's Signature Date COMBUSTION ANALYSIS Cooker Pump pressure CO ppm Flue Gas Temperature CO/CO2 Efficiency % Engineer's Comments: Jet Changed PARTS REPLACED: Jets should be changed annually.
  • Page 21 SERVICE RECORD Appliance Model Serial Number Date of Service: ENGINEER DETAILS Engineer's Name: (in BLOCK CAPITALS) Engineers Registration Number Engineer's Signature Date COMBUSTION ANALYSIS Cooker Pump pressure CO ppm Flue Gas Temperature CO/CO2 Efficiency % Engineer's Comments: Jet Changed PARTS REPLACED: Jets should be changed annually.
  • Page 22 SERVICE RECORD Appliance Model Serial Number Date of Service: ENGINEER DETAILS Engineer's Name: (in BLOCK CAPITALS) Engineers Registration Number Engineer's Signature Date COMBUSTION ANALYSIS Cooker Pump pressure CO ppm Flue Gas Temperature CO/CO2 Efficiency % Engineer's Comments: Jet Changed PARTS REPLACED: Jets should be changed annually.
  • Page 23 SERVICE RECORD Appliance Model Serial Number Date of Service: ENGINEER DETAILS Engineer's Name: (in BLOCK CAPITALS) Engineers Registration Number Engineer's Signature Date COMBUSTION ANALYSIS Cooker Pump pressure CO ppm Flue Gas Temperature CO/CO2 Efficiency % Engineer's Comments: Jet Changed PARTS REPLACED: Jets should be changed annually.
  • Page 24 SERVICE RECORD Appliance Model Serial Number Date of Service: ENGINEER DETAILS Engineer's Name: (in BLOCK CAPITALS) Engineers Registration Number Engineer's Signature Date COMBUSTION ANALYSIS Cooker Pump pressure CO ppm Flue Gas Temperature CO/CO2 Efficiency % Engineer's Comments: Jet Changed PARTS REPLACED: Jets should be changed annually.
  • Page 25 This publication is intended only to assist the reader in the use of our products. Eco Range Cookers will not accept any liability for any loss or damage whatsoever arising from the use of any information, error or omission found in this guide.
