HD Digital MPEG2 Encoder / QAM Modulator
Get Going Guide
HDb2640
HDb2620
HDb2540
HDb2520
s e r i e s

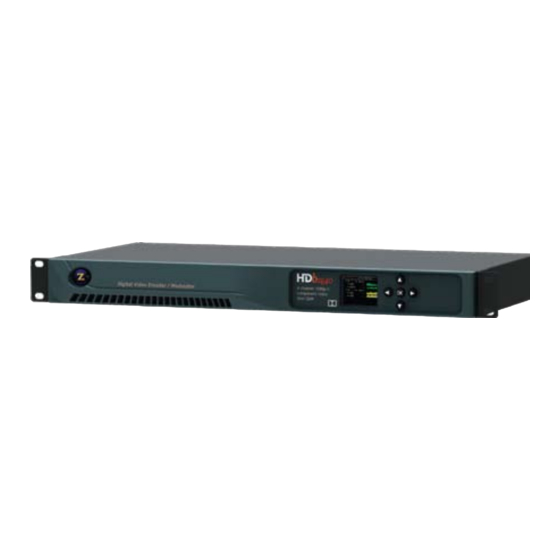

The HDbridge™ 2000 Series is a combination
HD MPEG 2 Encoder and frequency-agile QAM
Modulator, all in a 1RU package. There are four differ-
ent models within the series, which allow you to con-
vert a video source in real-time and very high quality
into a digital cable (QAM) channel. This channel is
placed onto standard COAX wiring, where it can be
combined with hundreds of other HDTV channels
and distributed over an entire premise.
This guide will take you through a typical installation
procedure, and will have you broadcasting your own
HDTV channel in about 10 minutes.
For additional assistance, specific details for a
particular
model,
tions, please refer to the ZeeVee Support page at
www.zeevee.com, where you will find answers
to frequently asked questions, and helpful tips
from ZeeVee experts. If you still cannot find the
answers you need, our technical support hotline at
877-4ZEEVEE (877-493-3833) is here to help.
or
more
complex
installa-
Advertisement
Table of Contents
Related Manuals for ZeeVee HDb2640
Summary of Contents for ZeeVee HDb2640
- Page 1 ZeeVee Support page at www.zeevee.com, where you will find answers to frequently asked questions, and helpful tips from ZeeVee experts. If you still cannot find the answers you need, our technical support hotline at...
-
Page 2: Fcc Statement
Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations. Page 2 of 8 www.zeevee.com Ver.011513... -
Page 3: Table Of Contents
Front and Back Panel Details ......6 Contact ZeeVee ........7 Warranty Information . -
Page 4: Basic Installation
HDb2000 RF Channel HDb2000 RF Channel RF A RF B NOTE: Many TVs require a full channel scan to find the channels. AV Input 1 AV Input 3 AV Input 2 AV Input 4 Page 4 of 8 www.zeevee.com Ver.011513... -
Page 5: Configuring Hdb2000 Modulator
Configuring HDb2000 In most cases, HDb2000 modulators will only require setting the RF and HDTV broadcast channels. 1. Connect your computer directly to the HDb2000 using a standard Ethernet cable (cross-over cable not required), or connect the HDb2000 to any LAN that has a DHCP server. 2. -
Page 6: Front And Back Panel Details
Audio/Video Input for RF Channel A Video: Component Closed Captioning: Composite Audio: Digital, Analog Audio/Video Input for RF Channel B Video: Component (HDb2640 and HDb2540 only) Closed Captioning: Composite Audio: Digital, Analog 10/100 LAN Port Configuration and remote management 10/100 LAN Port pass-through... -
Page 7: Contact Zeevee
Modulator (MODEL NUMBERS HDB2640-NA, HDB2620-NA, HDB2540-NA, HDB2520-NA), please contact ZeeVee directly by calling ZeeVee Support at (877) 593-3833. If it is determined that the product needs to be returned for service or exchange, you will receive a Return Material Authorization (“RMA”) number. Our agents will help you through the process through which you can return the product. - Page 8 ZeeVee, Inc. • One Monarch Drive • Littleton, MA 01460 • (347) 851-7364...
