GFCI test button
and light
Temperature
adjustment
ring
To program
and view the
schedule
To clear a
program
Day setting

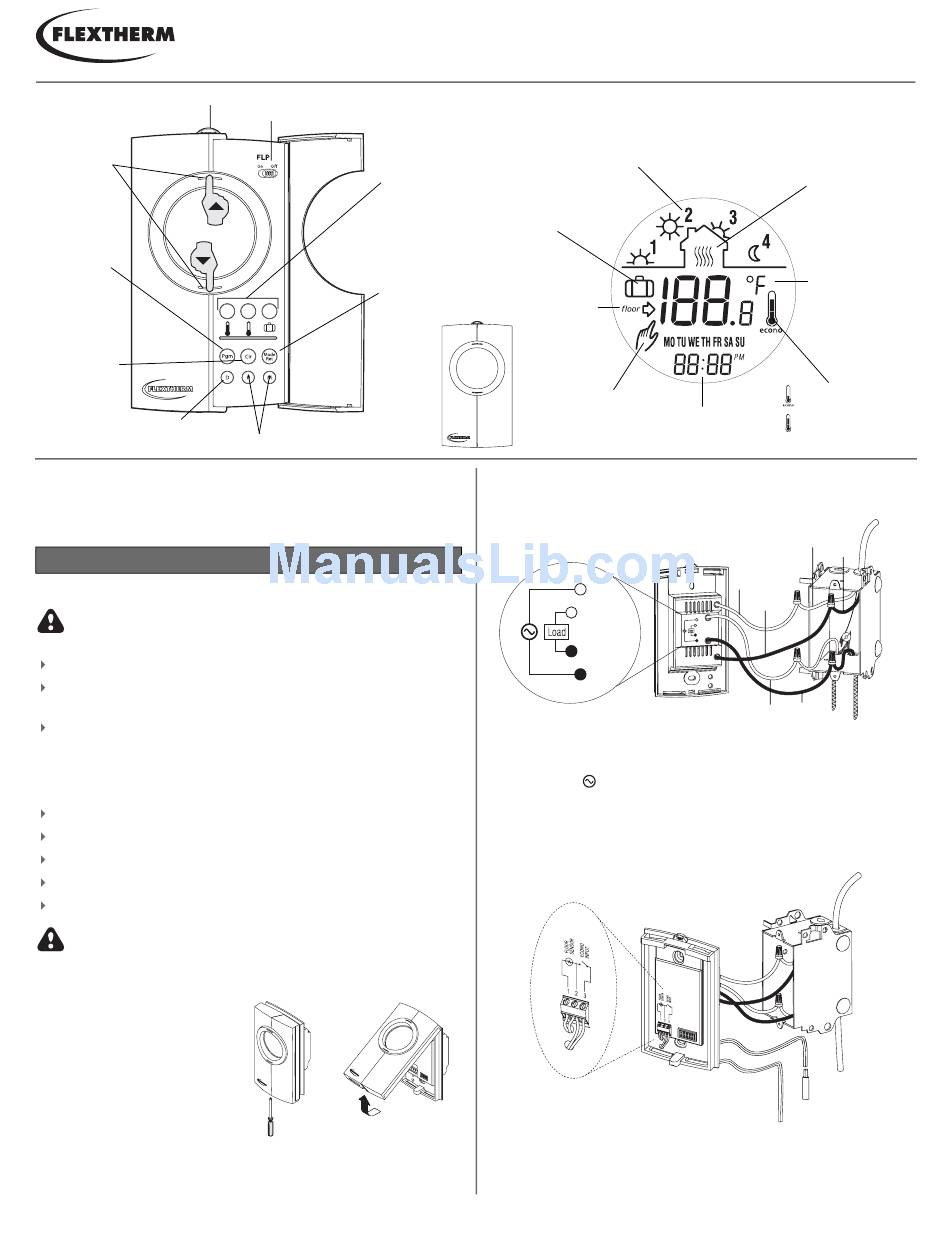

The FLP12-GA programmable thermostat, specially designed for
floor heating installations, is equipped with two ultra-precise sen-
sors which allow temperature control by separately monitoring both
floor and ambient settings, thus providing greater comfort.
INSTALLATION
Installation Guidelines
To avoid electrical shock, turn off power to the heating system
at the main electrical panel. The installation must be performed
by qualified electrician.
Install the thermostat on an expanded (deep) electrical box.
Choose a location about 1.5 m (5 ft.) above the floor and on an
inside wall.
Avoid locations where there are air drafts (top of staircase, air
outlet), dead air spots (behind a door), direct sunlight or con-
cealed chimneys or stove pipes.
Supplied Parts
One (1) thermostat (control module and power base)
Two (2) screws
One (1) 4.6 m (15 ft.) floor sensor
One (1) flat-tip screwdriver
Four (4) solderless connectors for copper wires
NOTE:
Special CO/ALR solderless connectors must be used
when connecting with aluminum conductors.
1) Separate the control module from the power base
Loosen the screw and separate
the control module from the
power
base.
The
screw
remains captive on the power
base.
To enable/disable heating
and to reset the GFCI
Comfort,
Economy
and Vacation
setpoints
To select a
mode or to exit
programming
mode
Time setting
Current program number when
Automatic mode is activated
Vacation
mode
Floor
minimum
and
maximum
temperature
(AF only)
Manual
Time and day
mode
2) Connect the thermostat wires
240 V (120 V)
L2(N)
L1(L)
Connect the thermostat to the floor heating system (load) and to the
power supply
using solderless connectors for copper wires.
The floor heating braided shields or green wire as well as the power
supply copper ground wires must be secured to the ground terminal.
3) Connect the floor sensor
FLP12-GA
User Guide
Indicates the amount
of power sent to the
floor heating system
Room or floor
temperature.
Arrow indicates
a setpoint
Economy setpoint
Comfort setpoint
Power supply
Red
(White)
Black
Red
Black
L2(N)
L1(L)
Black
Red
Floor heating system
Floor sensor
To remote control device (see section 4)
2009-06-25
1/4
400-610-010-A
