Summary of Contents for Cocoon AS43515

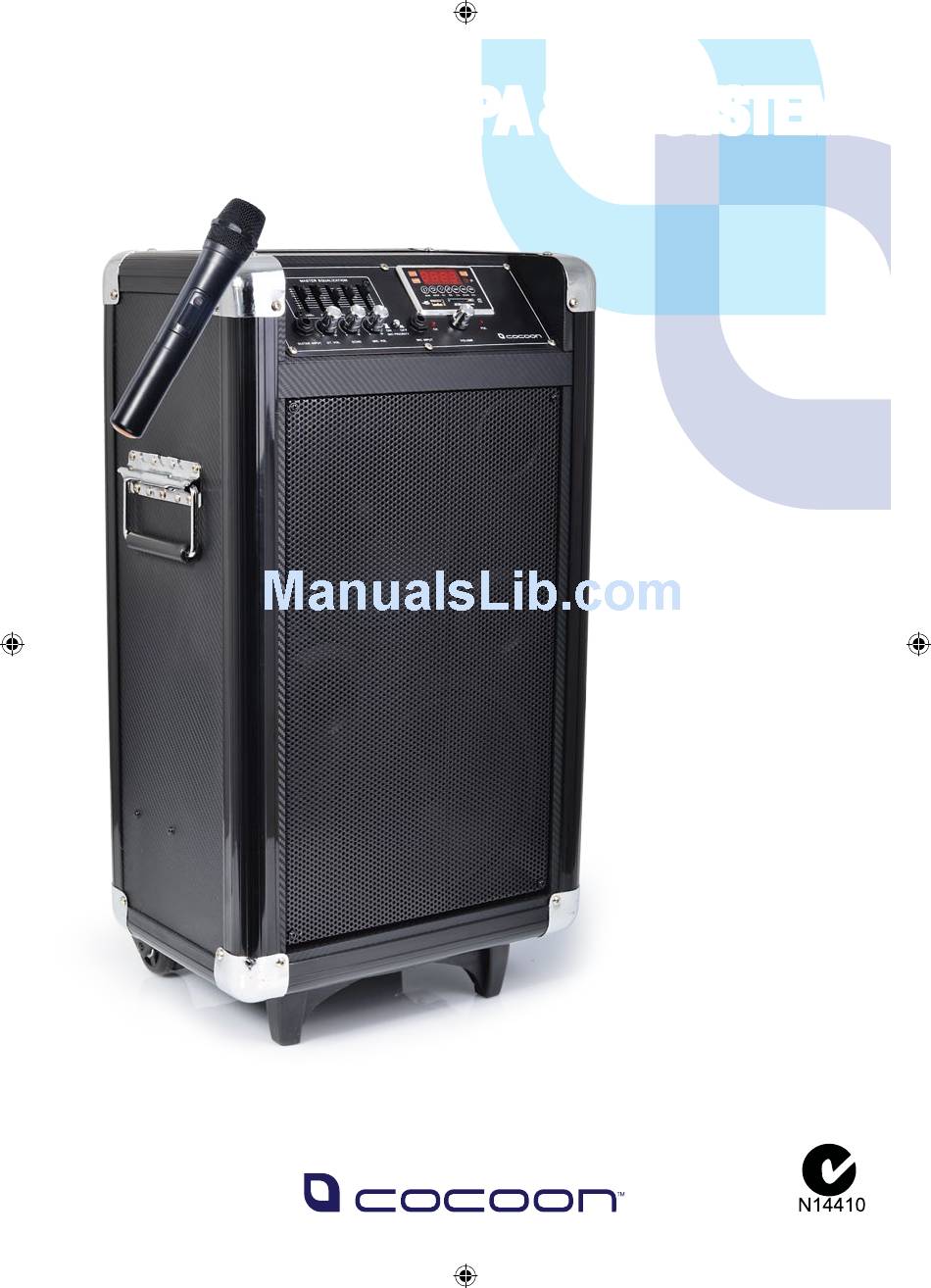

- Page 1 PROFESSIONAL PA & DJ SYSTEM PROFESSIONAL PA & DJ SYSTEM With Bluetooth INSTRUCTION MANUAL Model Number: AS43515...
- Page 2 Flat Panel Indoor Antenna Professional PA & DJ System with Bluetooth Warranty Details This product is warranted against defects for a period of One year from the date of purchase. If the product is faulty, Winplus will repair or replace the product (at its discretion) at no cost to you provided the product has been used in accordance with instructions provided.
-
Page 3: Welcome
Welcome Congratulations on choosing to buy a COCOON™ product. By doing so you now have the assurance and peace of mind that comes with purchasing a product made by one of the leading manufacturers. All products brought to you by COCOON™ are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty. -
Page 4: Table Of Contents
Contents Warranty Welcome General Safety Instructions Parts List & Technical Specifications Professional PA & DJ System Product Features Instructions - Turn on/off - Charging - Using the Wireless Microphone - Connecting a Wired Microphone - Connecting a Guitar - PA & DJ Speaker Playback Functions - SD Card Playback - USB Playback - Bluetooth Playback... -
Page 5: Parts List & Technical Specifications
Parts List 1 x PA & DJ Speaker System 1 x Wireless Microphone 2 x AA Batteries 1 x Battery Cable 1 x Power Cable Technical Specifications MicroSD Cards Supported: Up to 32GB (not included) MicroSD Card File System: FAT32 Supported Audio Formats: MP3, MP4, WMA and WAV Battery:... -
Page 6: Professional Pa & Dj System Product Features
Professional PA & DJ System Product Features FRONT: Control Panel FRONT: Control Panel FRONT VIEW Master equalisation USB input Mode function Repeat function Skip 10 tracks Equaliser function Previous Scan function Next SD card slot 1/4” (6.35mm) guitar input Guitar volume control Echo control Microphone volume control Microphone priority ON/OFF... - Page 7 Professional PA & DJ System Product Features BACK: Panel MICROPHONE BACK VIEW BACK VIEW Telescopic FM radio antenna 25. Battery ON/OFF Telescopic handle 26. Stereo RCA Input BACK: Panel MICROPHONE 22. External battery connection ON/OFF switch 23. Fuse box Battery cover 24.
-
Page 8: Instructions
Instructions Turning On/Off The PA & DJ Speaker System can be powered when connected to mains power or using the internal 12V battery. Connect the supplied power cable to the rear of the unit. Connect the other end of the power cable to mains power. Turn on the switch at the mains power point. -
Page 9: Connecting A Wired Microphone
Instructions Connecting a Wired Microphone You can also connect a wired microphone to the system using the MIC INPUT plug located on the control panel. You will require an adapter if your wired microphone does not use a ¼” plug. Turn on the PA &... -
Page 10: Pa & Dj Speaker Playback Functions
Instructions PA & DJ Speaker Playback Functions EQ Functions. You can adjust the frequency levels of the audio output using either the automatic EQ function for Bluetooth, USB, SD and radio playback or manually using the Master Equalization levels on the control panel. -
Page 11: Usb Playback
Instructions USB Playback You can play music files from an USB stick using the USB slot on the speaker system. Insert your USB stick (not included) into the USB slot. Once inserted the LCD screen will display USB and begin automatic playback. You can use the playback functions from pg. -
Page 12: Line Input Function
Instructions Line Input Function You can use a variety of audio devices with the PA & DJ Speaker System such as stereos, mobile phones, MP3 players using the RCA connections on the back of the unit (cable not included). You can also connect the supplied Wireless Microphone while playing your songs for some portable karaoke fun! Connect your audio RCA cables (not included) from your device to the PA &... -
Page 13: Replacing The Fuse
Using External Batteries (Cont.) Connect the crocodile clips to an external 12V power source such as a 12V battery. (Not included). Always connect the RED (positive) crocodile clip to the RED (positive) terminal on the battery first. After you have connected the positive clip, you can then connect the BLACK (negative) crocodile clip to the BLACK (negative) terminal on the battery. -
Page 14: Tips & Troubleshooting
Tips & Troubleshooting Problem Solution I am getting a lot of feedback Try moving away from the speaker system when using a through the speaker when microphone with the system. using the microphone I can’t hear anything from - Ensure that you have both the MIC VOL and VOLUME my microphone through the knobs adjusted to increase microphone volume. -
Page 15: Support
Professional PA & DJ System with Bluetooth support For additional support including helpful guides and videos, visit the Cocoon support website at www.winplus.com.au/cocoon.html Telephone: 1300 663 907 Email: customercare@winplus.com.au Website: www.winplus.com.au After Sales Support Telephone: 1300 663 907 Internet: www.winplus.com.au...
