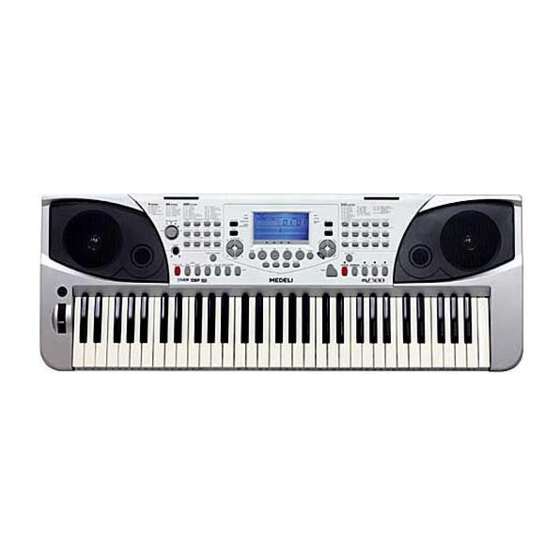

- Page 2 Congratulations! Congratulations on your purchase of the electronic musical instrument! The keyboard`s ROM contains 142 permanent voices including 12 Chinese traditional voices and 2 Drum kits.The keyboard also has the 60 ROM Songs which provide MELODY OFF Mode for user learning and the 100 ROM Styles with the A.B.C (Auto Bass Chord) playing mode.
- Page 3 Main Features Sound Generation: The sounds are based on PCM and Wavetable technology. Operation system: You can select the Voices and Styles conveniently with the Direct Select Button on the panel. Voice: Its ROM contains 142 permanent Voices including 12 Chinese traditional Voices and 2 Drum kits, and you can select any of the panel voices by the direct select buttons Style: It has 100 Styles, and you can select any of the panel styles by the direct select buttons.
-
Page 4: Table Of Contents
Contents General Guide Mixer Power supply Memory 1.Using the AC adaptor 1.Bank 2.Using batteries 2.Store and load Connectors 3.Data store memory 1.The headphones jack Recording 14-15 2.The Auz.Out jack 1.Record waiting 3.The susstain jack 2.Record start 4.The volume jack 3.Record stop 5.The MIDI IN/OUT jacks 4.Record play Selecting &... -
Page 5: General Guide
General Guide NYLON GTR VIOLIN PIZZICATO STRS BRASSS ECT MIDI IN MIDI OUT SUSTAIN VOLUME AUX.OUT PHONES DC 12V MASTER VOLUME POWER SWITCH START/STOP SYNC START/STOP FILL-IN A/B INTRO/ENDING MIDI IN AUX.OUT AUTO BASS CHORD MIDI OUT PHONES CHORD DICTIONARY SUSTAIN DC 12V TEMPO... -
Page 6: Power Supply
Power Supply This electronic keyboard can be powered by current from a standard household wall outlet (using the specified AC adaptor) or by batteries. Using The AC Adaptor Make sure that only the AC adaptor specified for this electronic keyboard is used. The adaptor shall MIDI IN MIDI OUT be 12V DC output, and center positive type. -
Page 7: Connectors
Connections The Headphone Jack If you prefer to play with headphone for high quality personal monitoring, plug a stereo headphone set MIDI IN MIDI OUT SUS TAIN VOLUME A UX.OUT PHONES DC 12 V into the rear panel PHONES jack. Plugging a set of headphones into the PHONES jack shut off the speakers automatically. -
Page 8: Selecting & Playing Voices
Selecting & Playing a Voice Voice number 142 voice at all (see Appendix), including 128 GM voice, 12 Chinese voices, and 2 percussion voices. Voice setting Press [VOICE] button to enter voice mode .The default VOICE R1 is No.001; LCD displays the voice flag and the voice number. -
Page 9: Split/Lower Voice
Split/Lower Voice You can split the keyboard to right and left area in this function. Press [LOWER VOICE] button to turn on the lower voice. LCD lights the lower voice flag and displays VOICE L and its number. Press [UP]/[DOWN] button to select other lower voices . -
Page 10: Selection & Playing A Style
Selecting & Playing a Style Style Number The keyboard has 100 styles at all, from 001 to 100. The default style is 001. Press [STYLE] button to enter to the style mode. LCD lights the style flag and displays the style number. Style Setting Press [UP]/[DOWN] button to select the style you want. -
Page 11: Stop The Style
Stop the Style Press [START/STOP] button to stop the style. STOP AFTER ENDING: When the style is playing, press [INTRO/ENDING] button, the style will stop after the ENDING over. SYNC STOP: press [SYNC STOP] button and release the keyboard, the keyboard will stop the style and flash the 4 beats together. -
Page 12: A.b.c
A.B.C Press [A.B.C] button to set the A.B.C mode to on. The A.B.C flag is lightened on LCD. In this mode, the keys below the split point are known as the CHORD area. There are 2 ways to detect the chord: single finger detect and fingers detect. -
Page 13: Tune
Tune The LCD displays the current tune value. Use [UP]/[DOWN] button to change the tune value. This function can change the right area of keyboard from 50 to 50 cents. Press [UP] and [DOWN] simultaneously will set the tune value to the default one. The default value is 000. -
Page 14: Mixer
Mixer Adjust Item Display Defau lt Adjust The kinds of volume that can be adjusted are as Range follows: OC1 Volume 31-0 OC2 Volume 31-0 OC3 Volume 31-0 Voice1 Volume 0-31 Voice2 Volume 0-31 Lower Volume 0-31 Drum Volume 0-31 Bass Volume 0-31 Press [MIXER] repeatedly to adjust the items above... -
Page 15: Recording
Recording Record Waiting Press [RECORD] button. Four beats on LCD flash simultaneity, which indicates the record waiting status. Voice, style, memory and recording tracks can be selected in this status. The ACCOMP track and MELODY track can be recorded together and also can be recorded separately. -
Page 16: Record Play
Record Play Select the tracks to play, and the LED of the track will be lightened, which indicate that the track is ready to play, and the darkened LED indicates that the track is not ready to play. If the LED cannot be lightened, that means it is an empty track. -
Page 17: Demo
Demo There are 5 Demos at all (see Appendix) DEMO Start/Stop Press [DEMO] button to enter to DEMO mode. The DEMO flag lightens on LCD. Hold the [DEMO] button over 3 seconds, it will play the current demo repeatedly with the current demo's number shown on LCD. -
Page 18: Midi
Chord Type: There are 24 chords are displayed in the dictionary mode as follows: Note Chord type Note Chord type Chord Root : 7(b9) Note Chord Root Note Chord Type M(9) 7(9) F#/Gb 7(#9) C#/Db 7(b13) Ab/G # Eb/D# 7(13) Bb/A# 7(#11) m(9) -
Page 19: Specifications
Specifications Keys: 61 keys with Touch Response LCD Display: Multi-functional LCD Polyphony: 64-note polyphony (max) Voices: 142 voices, including,128 GM voices,12 Chinese voices and 2 durm kit Styles: 100 styles Song: 60 songs of different style Demo: 5 demo songs Overall Control: Transpose, Beat, Split Point, Pitch Bend, Effect, MIDI Channel,O.T.S,Touch,Sustain ,Lower,Bank,Store,... -
Page 20: Appendix 1-Voice List
Appendix 1-Voice List BRASS PERCUSSIVE PIANO 57 Trumpet 113 Tinkle Bell 01 Acoustic Grand Piano 58 Trombone 114 Agogo 02 Bright Acoustic Piano 59 Tuba 115 Steel Drums 03 Electric Grand Piano 60 Muted Trumpet 116 Wood Block 04 Honky-Tonk Piano 61 French Horn 117 Taiko Drum 05 E.Piano1... -
Page 21: Appendix 2-Style List
Appendix 2-Style List Name Name 8 BEAT LATIN 8 Beat 1 Bossa Nova 1 8 Beat 2 Pop Bossa 8 Beat 3 Guitar B ossa 8 Beat 4 Rhumba 1 8 Beat Rock Guitar Rhumba 8 Beat Pop Samba 1 M ambo 16 BEAT Salsa... -
Page 22: Appendix 3-Demo List
Appendix 3-DEMO List Name Nan Ni Wan Mo Li Hua Amour Organ Funk Piano Concerto No.1 Appendix 4-Song List Children 030-032 Classic 001-016 Concert In F Op4 No5 Mov2 Amazing Grace Air On The G-String Battle Hymne Of The Republic Dance De Mirlitons Oh ! Susanna Carmen... -
Page 23: Appendix 5-Chord List
Appendix 5-Chord List Chord Name/[Abbreviation] Normal Voicing Chord (C) DI SPL AY Major [M] 1-3 -5 1-(3)-5-6 Sixth [6] 1-3 -(5)-7 Major seventh[M7] Major seventh add sharp Eleventh 1 -(2)-3-#4-5-7 CM7(#11) CM7(#11) [M7(#11)] o r 1-2 -3-# 4-(5 )-7 Major add ninth [M(9)] 1-2 -3-5 CM(9) CM (9) -
Page 24: Appendix 6-Midi List
Appendix 6-MIDI List Function Remarks Transmitted Recognized Basic Default 1-16ch Channel Changed 1-16ch Default Mode Messages Altered *********** 0-127 0...127 Note *********** 0...127 Number True voice Velocity : Note on O 9nH,V=1-127 O 9nH,V=1-127 Noteoff (9nH,V=0) X (9nH,V=0; 8nH,V=0-127 After Keys Touch Pitch B end... - Page 25 Vers ion:V0 7...
