Summary of Contents for Simplicity Simplicity 64

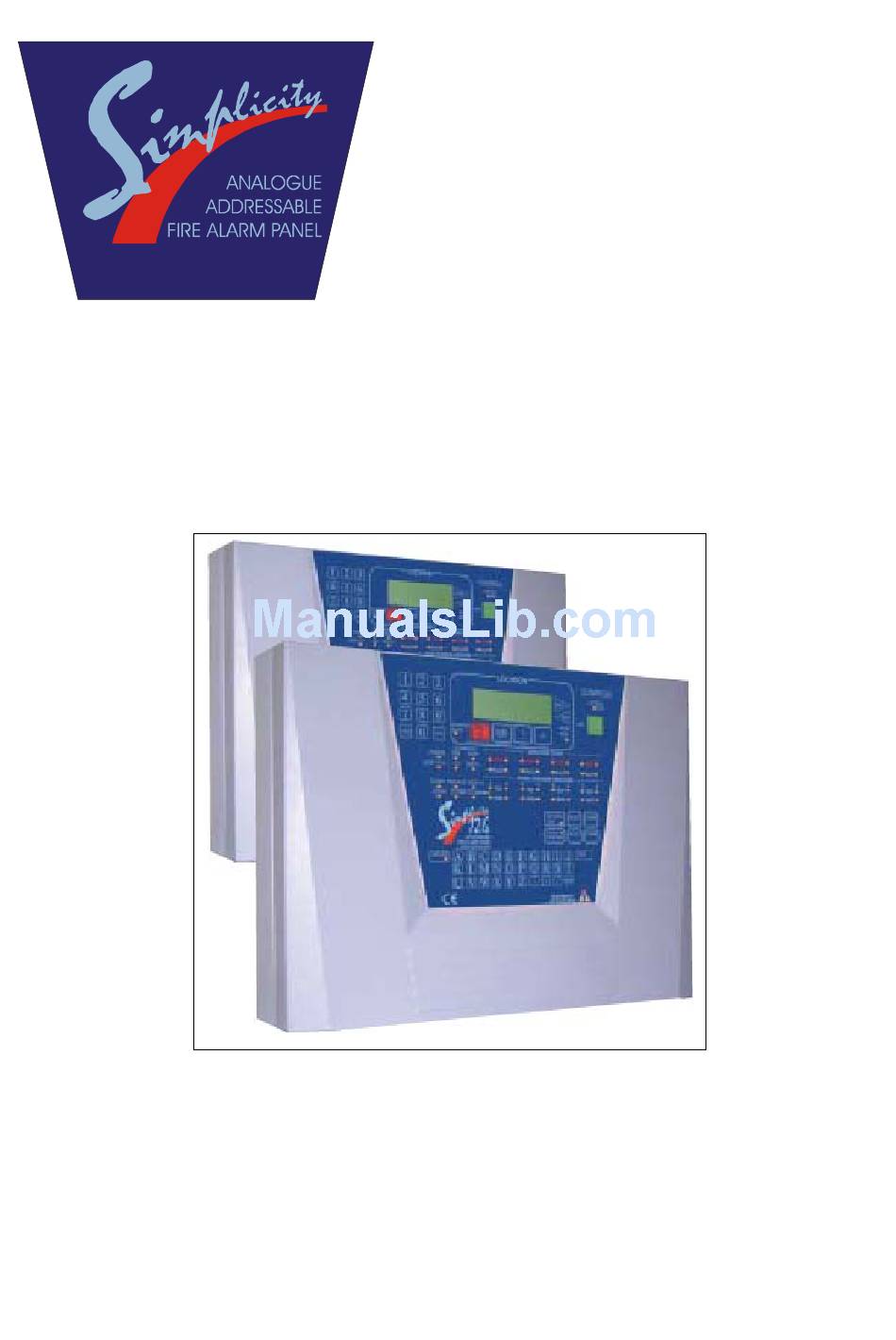

- Page 1 Simplicity 64 Simplicity 126 64 OR 126 DEVICE CAPACITY, SINGLE LOOP ANALOGUE ADDRESABLE FIRE ALARM CONTROL PANEL INSTALLATION MANUAL...
-
Page 2: Table Of Contents
LIST OF COMPATIBLE EQUIPMENT………………………………………………..… 2.1 SUPPORTED SOUNDER TYPES & THEIR APPLICATIONS INTRODUCTION…….…………………………………………………………………..… THE PCBS USING THIS MANUAL ABOUT THE SIMPLICITY FACP & INTEGRAL PSE DESIGNING THE SYSTEM EQUIPMENT GUARANTEE FIRST FIX GUIDELINES…………………………………………………………………. RECOMMENDED CABLE TYPES AND THEIR LIMITATIONS MAINS WIRING RECOMMENDATIONS... -
Page 3: Simplicity Overview
The Simplicity is a 1-loop analogue addressable fire alarm control panel designed to EN54 part 2 & 4. It is available in two versions. Simplicity 64 allows 64 devices to be connected, and divided into 4 zones. Simplicity 126 allows 126 devices to be connected, and divided into 8 zones. -
Page 4: List Of Compatible Equipment
Zeta Conventional 6” Bells 41-005 ZTB8B Zeta Conventional 8” Bells 2.1 SUPPORTED SOUNDER TYPES & THEIR APPLICATIONS The SIMPLICITY supports 3 general sounder types; addressable, addressable sounder controller, and associated sounders. All types have advantages & disadvantages. Sounder type Advantage Disadvantage... -
Page 5: Introduction
3.2 USING THIS MANUAL This manual explains, in a step-by-step manner, the procedure for the installation of the SIMPLICITY Range of Fire Alarm Control Panels. For full operational and maintenance information, please refer to document GLT.MAN-108 (USER MANUAL, MAINTENANCE GUIDE &... -
Page 6: First Fix Guidelines
(Note that all cables should be at least 1mm cross section On the Simplicity Panel the general recommendation would be to use standard fire resistant cable, such as Firetuff™ , FP200 or an equivalent. These cables are screened, and will provide good ECM shielding when properly grounded at the panel. -
Page 7: Addressable Loop Wiring Diagram
The SIMPLICITY comes with one addressable loop. Addressable detectors, addressable call points, addressable loop powered sounders and several other interface units can be connected to this loop. A maximum of 126 devices can be connected to each loop. (64 for Simplicity 64) Side A +ve... -
Page 8: Specific Device Wiring Instructions
Simplicity 64 Simplicity 126 & INSTALLATION MANUAL. 4.4 SPECIFIC DEVICE WIRING INSTRUCTIONS: Fyreye Common Base Fyreye Addressable Detector Relay Base FE-CB FEA-RB 80-050 80-080 LOOP + IN LOOP + OUT LOOP + IN LOOP + OUT RELAY OUTPUT LOOP - IN... - Page 9 Simplicity 64 Simplicity 126 & INSTALLATION MANUAL. Zeta Input Unit Zeta Input Output Unit ZIOU 48-100 48-105 47K EOL 0.5W 47K EOL 0.5W LOOP - IN LOOP - OUT LOOP + IN LOOP + OUT LOOP - OUT LOOP - IN...
-
Page 10: Auxiliary Input Wiring Examples
Simplicity 64 Simplicity 126 & INSTALLATION MANUAL. 4.5 AUXILIARY INPUT WIRING EXAMPLES There is one non-latching auxiliary input connection on the Fire Alarm Panel. Class Change Input (CC): This will energise all alarm outputs continuously when the CC terminals are shorted together. (This includes the addressable sounders, sounder bases. The auxiliary fire relay driver is NOT activated by the Class Change input.) -
Page 11: Mounting The Fire Alarm Panel
Simplicity 64 Simplicity 126 & INSTALLATION MANUAL. 5. MOUNTING THE FIRE ALARM PANEL It is recommended that the panels door be removed to avoid accidental damage. Also, the termination PCB could be removed and stored in a safe place, while fixing the back box to the wall. -
Page 12: Connecting Mains & Battery Power
Figure 3: Power Supply PCB layout and Mains connection details 6.2 CONNECTING THE BATTERIES Although there are many sizes of suitable battery, the sizes we usually recommend for the SIMPLICITY are 12V 7Ah, To calculate the exact requirement, use the BATTERY INTERCONNECTING... -
Page 13: Field Device Termination
PCB (See Page 15). Screened cables should be terminated as per figure 6. For a full description of the inputs and outputs available on the SIMPLICITY range of Fire Panels, including typical wiring diagrams please refer to pages 5 & 6. -
Page 14: Designing The System & Configuring The Facp
ZONE 7: DEVICE ADDRESS 97 TO 112 GROUND FLOOR (Note that a Simplicity 64 can only have 4 zones, so would not be suitable for the above system) 2. Sounder operation. On the Simplicity Panels, all sounders are common acting. That is, an alarm signal from any device will activate all sounders. - Page 15 Simplicity 64 Simplicity 126 & INSTALLATION MANUAL. 7. To check that the panel has read all the devices on 00SCC 14Loop 1 loop 1, select option 1 Lp1 Dev. If the loop contents I/O 01ION 00DAD 00 are as expected, go to point 8, otherwise go to ZMU 00OPT 45Cancel...
-
Page 16: Loop Contents Fault Finding
8.2 ADDRESS - ZONE TABLE On the SIMPLICITY, each available address corresponds to a zone, with 1-16 being in zone 1, 17-32 being in zone 2, 33-48 in zone 3 etc. The table below shows the dip switch settings for each address, and the zone that address will be in. - Page 17 Simplicity 64 Simplicity 126 & INSTALLATION MANUAL. ADDRESS SWITCHES ADDRESS SWITCHES ADDRESS SWITCHES ADDRESS SWITCHES 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7...
-
Page 18: Zone Disablement
& INSTALLATION MANUAL. 9. ZONE DISABLEMENT The Simplicity fire alarm panels are designed to operate as zone based panels. You can therefore only disable a whole zone. It is not possible to disable individual devices. 9.1 WHY USE ZONE DISABLEMENT To aid commissioning and assist routine maintenance checks, any of the zones or loop sounders can be disabled. -
Page 19: Test Mode
Simplicity 64 Simplicity 126 & INSTALLATION MANUAL. 10. TEST MODE 10.1 WHY USE TEST MODE To aid commissioning and assist routine maintenance check, a non-latching ‘one man test’ facility is available. When a detector or manual call point is triggered on any zone in Test, the Alarm sounders operate for approximately eight seconds on and four seconds off. -
Page 20: General Fault Finding
Simplicity 64 Simplicity 126 & INSTALLATION MANUAL. 11. GENERAL FAULT FINDING 11.1 COMMON FAULT. This is a general indicator which lights whenever a fault is present. It doesn’t refer to a specific fault. 11.2 ZONE FAULTS There are several reasons for the zone fault LED to light. -
Page 21: Earth Faults
Simplicity 64 Simplicity 126 & INSTALLATION MANUAL. 11.4 EARTH FAULTS FAULT An EARTH fault indicates that something is shorting to earth (usually through the cable screen). Disconnect the earth Earth Fault screens one at a time to determine the problem line. -
Page 22: Loop Wiring Faults
Simplicity 64 Simplicity 126 & INSTALLATION MANUAL. 11.9 LOOP WIRING FAULTS FAULT A loop fault can be caused by a break, or short circuit in the Loop wiring. Open the panel and look for the 2 green LEDs on Loop Fault Exists the termination PCB. -
Page 23: Standby Battery Requirements
Simplicity 64 Simplicity 126 & INSTALLATION MANUAL. 12. STANDBY BATTERY REQUIREMENTS The Following Table shows the Quiescent, Fault & alarm currents of the main parts of a SIMPLICITY Fire Alarm System Device Product Code (mA) (mA) (mA) Loop System SP-64... -
Page 24: Standby Battery Calculation
Simplicity 64 Simplicity 126 & INSTALLATION MANUAL. 12.1 STANDBY BATTERY CALCULATION In order to calculate the standby battery size required, the following formula can be used:- Battery Size (Standby time in Amp Hours) = 1.25 x [(T ) + (T... -
Page 25: Wiring Recommendations
Simplicity 64 Simplicity 126 & INSTALLATION MANUAL. 13. WIRING RECOMMENDATIONS With an addressable system, some care must be taken when calculating the appropriate cable gauge for the system. The main limitation is that during an alarm condition (maximum current draw), the voltage at all detectors must be at least 17 Volts with at least 5V of superimposed data signal. -
Page 26: Pcb Termination Connections
Simplicity 64 Simplicity 126 & INSTALLATION MANUAL. 14. PCB TERMINATION CONNECTIONS. CLASS LOOP WIRING FLT REP CHANGE 1 2 3 4 5 6 CONN29 FS1 FS2 7 8 9 LIVE NEUT- EARTH 14.1 CONNECTIONS Connection No Description LOOP 1A +&- Connect to loop 1 side A LOOP 1B +&-... -
Page 27: Panel Specifications
AUXILIARY FIRE OUTPUT 24V RELAY DRIVE SIGNAL NUMBER OF LOOPS 1 LOOP MAXIMUM NUMBER OF ZONES 8 ZONES (4 FOR SIMPLICITY 64) MAXIMUM LOOP CAPACITY 126 DEVICES (64 FOR SIMPLICITY 64) MAXIMUM ZONE CAPACITY 16 DEVICES PER ZONE MAXIMUM LOOP RESISTANCE...
