freedom
tm
M A C H I N E
User' s Manual

Advertisement

Table of Contents
loading

Summary of Contents for Vision Freedom Machine

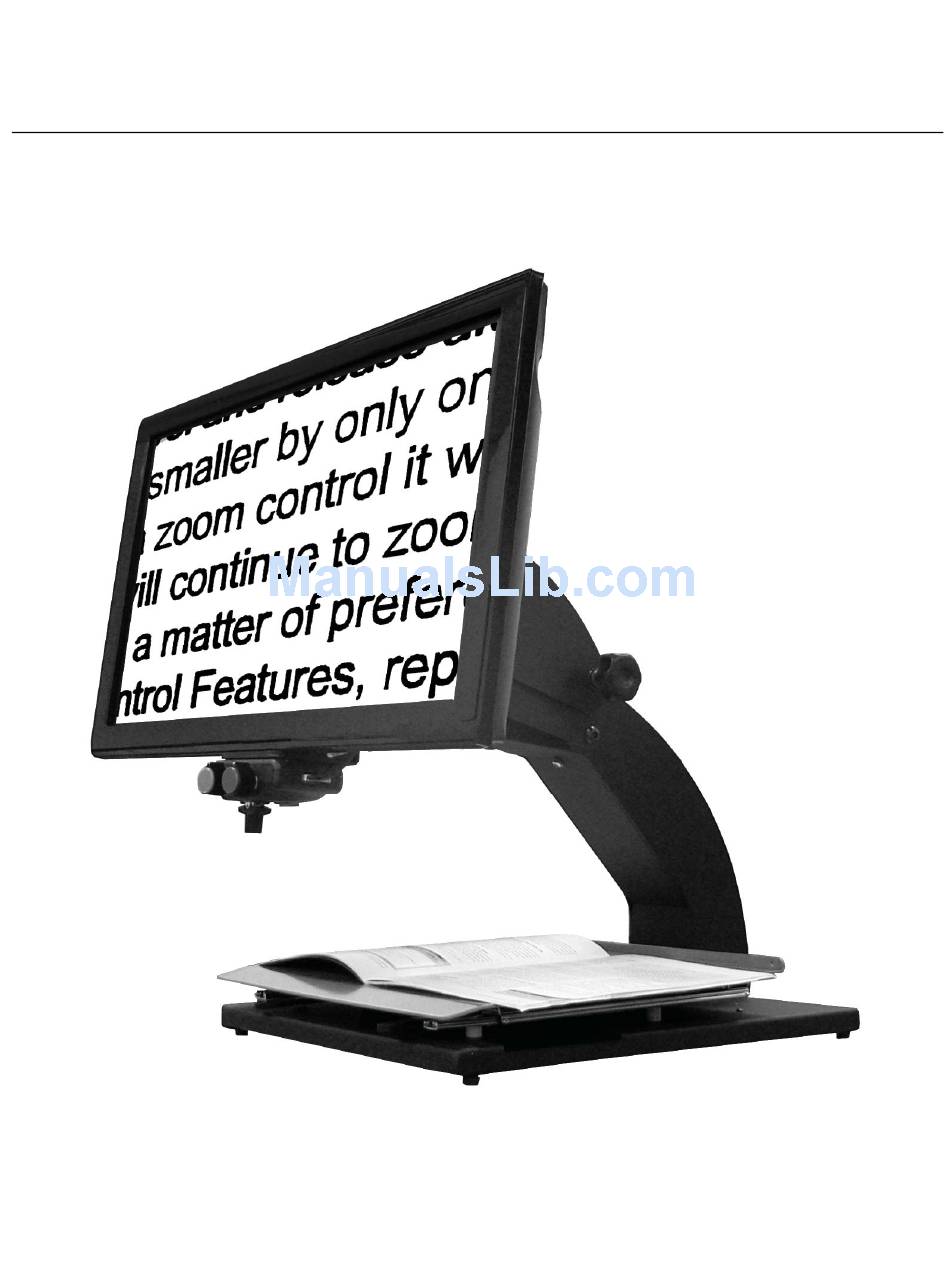

  • Page 1 freedom M A C H I N E User’ s Manual...

  • Page 3: Table Of Contents

    Table of Contents About Your Freedom Machine Freedom Machine at a Glance Safety and Care Setting up Freedom Machine Turning on Freedom Machine Changing Viewing Mode Changing Magnifi cation Changing Brightness Using the X-Y Table Using the Monitor Arm 13-14...

  • Page 5: About Your Freedom Machine

    Freedom Machine is ready to use right out of the box! Familiarize yourself with Freedom Machine ‘s features and controls before using it and you’ll be able to enjoy the benefi ts from your purchase.

  • Page 6: Freedom Machine At A Glance

    6. Brightness Switch 7. X-Y Table 8. X-Y Table Braking Levers 9. Freedom Machine 12V power supply 10. Monitor Cord 11. Resistance Adjust 12. Tilt Adjust 13. Monitor Swivel Adjust 14. Recessed handles for carrying Freedom Machine 15. Weight Adjust...
  • Page 7 Freedom Machine at a Glance...

  • Page 8: Safety And Care

    Freedom Machine for a patient’s specifi c condition. Safety Measures: Freedom Machine is only to be used on a level surface, like a desk or table. Do not set Freedom Machine on a fl imsy or unstable table. This could result in the Freedom Machine falling causing serious damage.
  • Page 9 Safety and Care Always turn the power off when Freedom Machine is not in use. Always unplug Freedom Machine before cleaning. Use a soft damp cloth to clean the exterior. Do not use cleaning agents or abrasive materials as they may cause damage.

  • Page 10: Setting Up Freedom Machine

    Setting Up Freedom Machine 1. Place Freedom Machine on a sturdy and level table or desk, where you will be using it. 2. Lift and carry Freedom Machine by the two recessed handles on the sides of the base unit; pickup from behind Freedom Machine.

  • Page 11: Turning On Freedom Machine

    Power Button Brightness Switch Freedom Machine Power Button The power button on Freedom Machine is located behind the brightness switch on the bottom of the control box. Press the power button. A beep will occur and the reading table lights will illuminate, indicating the power is ON.

  • Page 12: Changing Viewing Mode

    Changing Viewing Mode Mode Dial You can choose a viewing option by turning the LEFT dial on the control box. You can turn the dial to 15 diff erent options (Figure 1). When you change to a diff erent mode, the mode number and description appears on screen (Figure 2).
  • Page 13 Changing Viewing Mode (Mode 0) Full Color This mode provides true color for text, pictures and objects. (Mode 1) Enhanced Positive Image This mode enhances the contrast to off er crisp text for reading, with a white background and black text. (Mode 2) Enhanced Negative Image This mode enhances the contrast to off er crisp text for reading, with a black background and white text.

  • Page 14: Changing Magnifi Cation

    Changing Magnifi cation Magnifi cation Dial You can increase and decrease the size of the text or image by turning the RIGHT dial on the control box. There are 16 levels of magnifi cation. - To increase size, turn the dial clockwise, or to the right. ( Figure 1) - To decrease size, turn the dial counterclockwise, or to the left.

  • Page 15: Changing Brightness

    Changing Brightness Brightness Switch Freedom Machine Brightness Switch You can decrease or increase the brightness of the text or image by using the brightness switch on the bottom of the control box - To increase the brightness, press switch to the right - To decrease the brightness, press switch to the left.

  • Page 16: Using The X-Y Table

    Using the X-Y Table Locking the X-Y Table - To lock the X-Y table slide both levers all the way out. ( Figure 1) - To unlock the X-Y table, slide both levers all the way in. ( Figure 2) - To lock the side-to-side movement slide the left lever all the way out.

  • Page 17: Using The Monitor Arm

    Tilt Adjust Weight Adjust Swivel Adjust Freedom Machine is ready to use out of the box. You do not need to adjust any of the dials to use the machine. * All dials turn clockwise. Make sure they are tightened down before use.
  • Page 18 Using the Monitor Arm ( Figure 1) ( Figure 2) ( Figure 3)

  • Page 19: Troubleshooting

    Make sure the power supply cord is securely connected to the electrical outlet. Make sure the opposite end of the power supply cord is securely connected to the Freedom Machine. Next, press the square shaped red power button on the Freedom Machine control box.

  • Page 20: Contact Information

    7. Will I ever need to replace the light bulbs? No. The Freedom Machine uses LED ‘s for its lighting source. LED’s are designed to give you years of trouble free service. LED’s are highly energy eff ecient and rated for over 150,000 hours of usage.

  • Page 21: Warranty

    Vision Technology, Inc. Provides a warranty to the original purchaser of its products against defects in materials and workmanship for a period of three years. If a Vision Technology, Inc. product is defective within the warranty period, Vision Technology, Inc. will either repair or replace the unit at its sole option and discretion.
  • Page 22 Warranty < CUT HERE > Warranty Registration Card Warranty Registration Card ® ® This section completed by Vision Technology Staff : 2 Year Warranty Extension: ($349.00)
  • Page 23 Notes...
  • Page 24 The Freedom Machine video magnifi er is designed for enlarging and enhancing images to improve the quality of life for people who have low vision. The level to which the Freedom Machine can improve the ability to see images and text depends on a person’s individual condition and level of vision degeneration.
