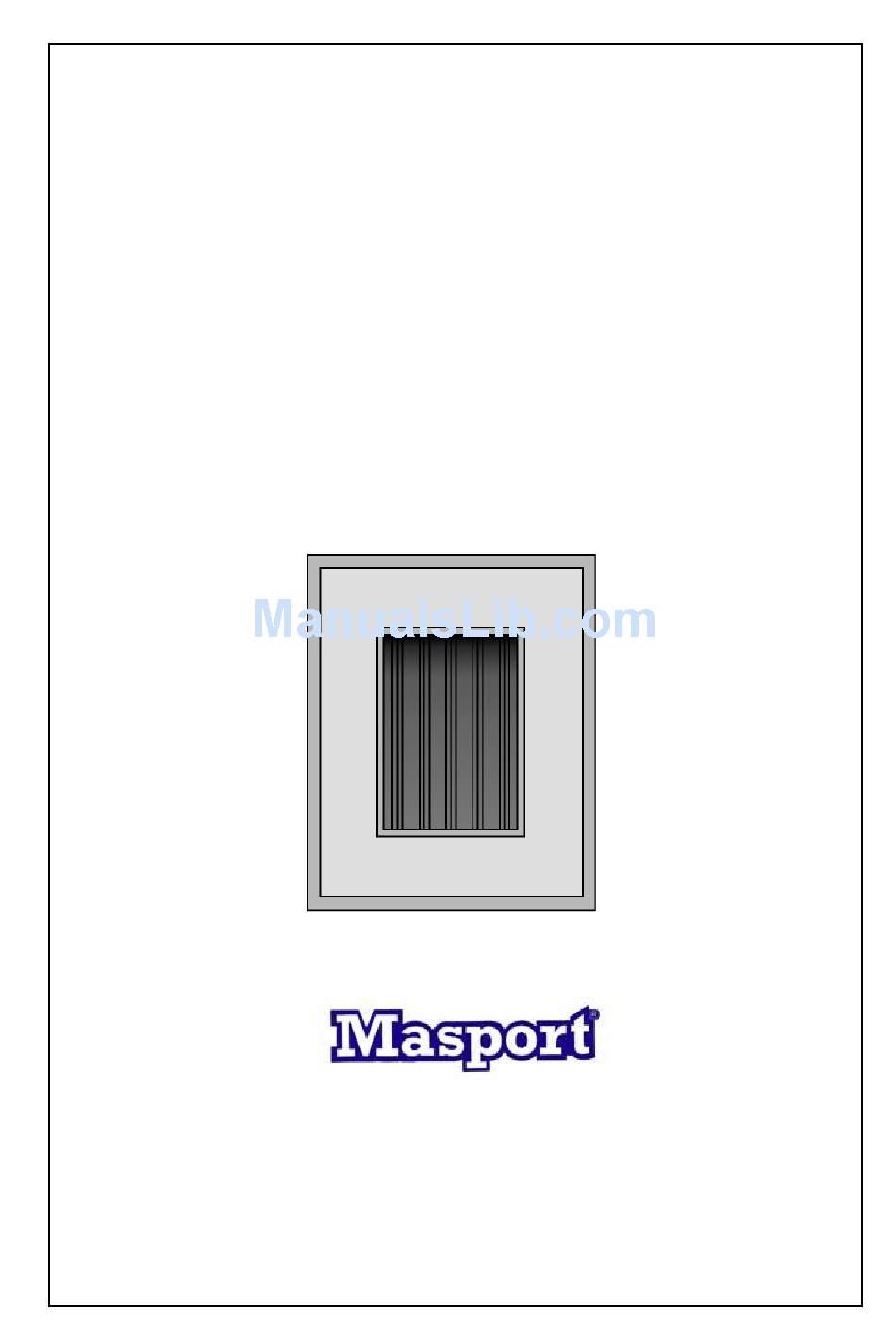

- Page 1 FLUELESS CATALYTIC GAS FIRED HEATERS INSTALLATION & SERVICING INSTRUCTIONS (TO BE LEFT WITH THE CUSTOMER) MODENA SERIES...
-
Page 2: Technical Information
TECHNICAL INFORMATION NATURAL GAS HEAT INTPUT MAX (GROSS) 2.4kW 2.4kW HEAT INPUT MIN (GROSS) 1.1kW 1.5kW SUPPLY PRESSURE 1.9kPa 2.75kPa BURNER PRESSURE HIGH 1.82kPa 2.75kPa BURNER PRESSURE LOW 0.45kPa 1.0kPa INJECTOR SIZE BRAY 3/150 BRAY 7/70 GAS CONNECTION 8mm O.D TUBE 8mm O.D TUBE GAS CONSUMTION (HIGH) 0.21 m... -
Page 3: Important Notes
2. IMPORTANT NOTES This is a High Efficiency, Flueless Catalytic, Live Flame Effect heater. It provides radiant and convected warmth both efficiently and safely utilising the latest type catalytic convector burner technology. It is recommended that it is only used as a secondary heat source. Before installation, ensure that the local distribution conditions identification of the type of gas and pressure and the adjustment of the heater are compatible. - Page 4 Fig. 2. Removing the front panel 1. Remove screw on either side Data plate on underside Modena Installation and Service Manual 08/06...
-
Page 5: Installation
3. INSTALLATION This heater is designed to be wall mounted. The wall should be reasonably flat and of sufficient size to accommodate the heater (Fig.1). If the appliance is to be sited near a disused natural draught flue it is recommended that the old flue should be partially sealed off to prevent draughts, however some ventilation will be required to prevent condensation. - Page 6 Clearances to combustible materials Combustible materials are defined as wood, fabrics, or other materials likely to combust if exposed to flame. Generally, any material, which is likely to discolour, melt or misshape when exposed to moderate heat, should be considered as a combustible material of surface. Any fire surround to be used in conjunction with this heater should be rated at a minimum of 100°...
-
Page 7: Gas Connection
(Fig. 4) SECURING THE HEATER TO THE WALL Select a suitable site for the heater. Remove the front panel and wall plate from the heater (Fig.2). Mark the position of the four securing holes using the wall plate as a template, ensuring the wall plate is level and that the letter ‘T’... - Page 8 4. FITTING THE VERMICULITE GRANULES Remove the glass frame securing screws and remove the glass panel complete (Fig.4). Pour the vermiculite granules into the burner. Fill the burner completely to the top as shown below. Do not overfill the vermiculite over the top of the burner in the area of the pilot flame. heater body M5 securing nuts &...
-
Page 9: Commissioning The Heater
5. COMMISSIONING THE HEATER The heater is fitted with a pilot light which is also an oxygen depletion sensor (O.D.S), piezo spark, and flame sensing device. The control is located behind the front panel on the right hand side of the heater (Fig 2). -
Page 10: Customer Briefing
Stress that no coals or logs must be added to the heater and that any replacement parts must only be authorised Masport spares. Recommend that the heater is regularly serviced at least once a year by a qualified person. Hand these Instructions and the User Instructions to the customer. -
Page 11: Servicing Instructions
7. SERVICING INSTRUCTIONS The heater is fitted with a pilot light and flame-sensing device which is also an oxygen depletion sensor (O.D.S). This is not adjustable and must not be put out of action. If any parts of this system requires replacement only original manufacturers parts must be used. - Page 12 ² Approx. 2—3.5 Approx. 3.5—5.0 Fig.7. Masport Gasfires are distributed in New Zealand by METAL FAB INDUSTRIES (2004)LIMITED, 38 HARRIS ROAD, EAST TAMAKI PO Box 58-473, Greenmount, Auckland, New Zealand For servicing heater call 0800 666 2824 New Zealand Masport Gasfires are distributed in Australia by...
