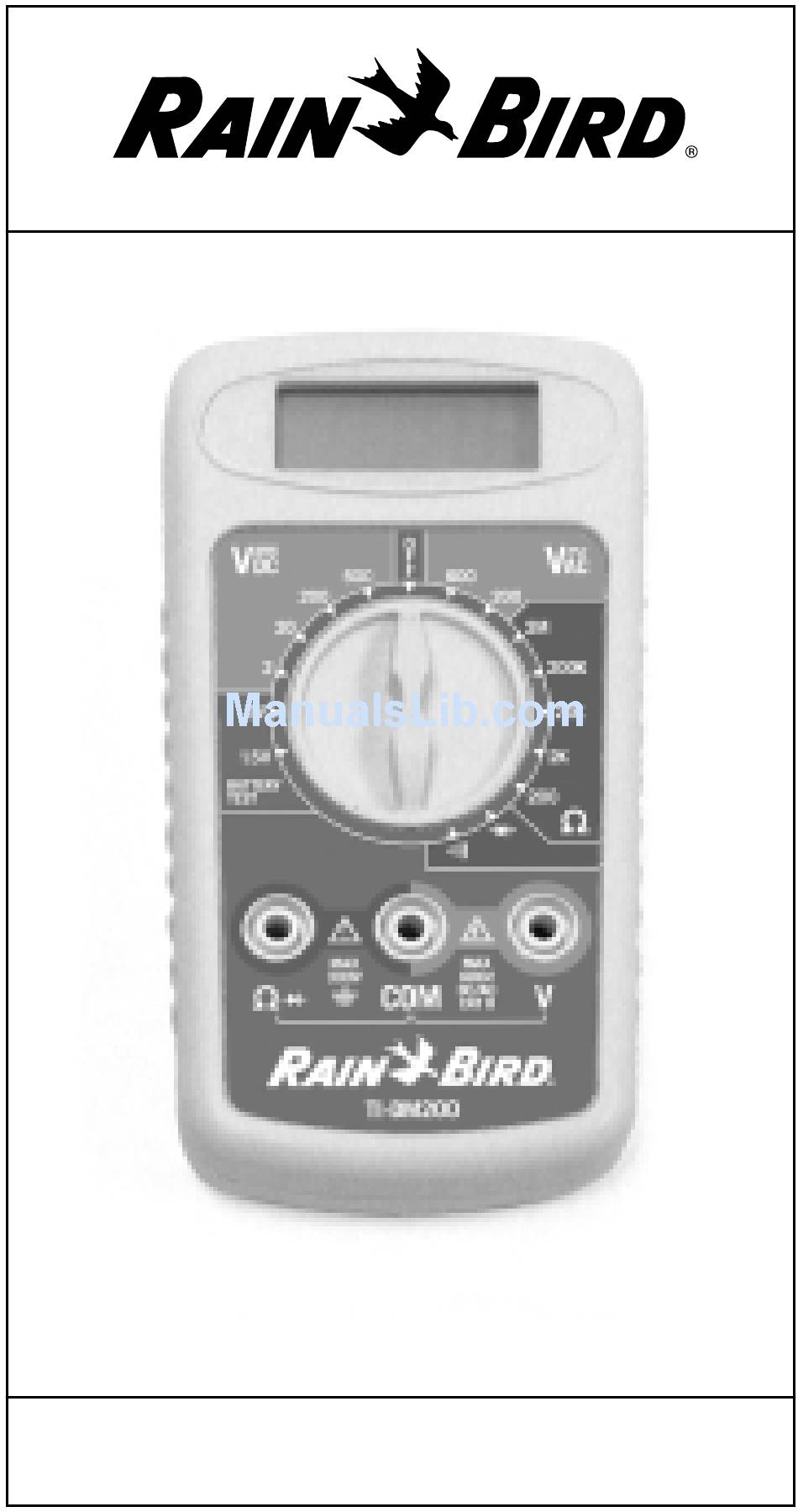

- Page 1 TI-DM200 Digital Multimeter TROUBLESHOOTING GUIDE...
-
Page 2: Table Of Contents
Voltage check of pump relay: ....12 WARNING This booklet is only intended to be a guide for using this product with other Rain Bird products. Carefully read and follow the manufacturer’s instructions regarding safety precautions and warranty information. -
Page 3: Troubleshooting Guide
Make a list of all of the stations that are not functioning properly. Measure the output voltage for each station using a Multi-Meter (Rain Bird Model TI-DM200, TI-DM400 or TI-DSA500) and the instructions provided. See Page 9 of this guide. - Page 4 (or solenoids or wires) on the stations with faulty resistance measurements (Page 10 of this guide). A Rain Bird Tone and Probe Kit (Model TI-TPK) or a Rain Bird Wire Sorter (Model TI-WS6) can be helpful in locating broken wires and diagnosing your system.
-
Page 5: Voltage Check Of 120V Input
BLACK CONNECTIONS For Standard Outlets: 1) Insert probes into outlet one at a time. 2) Observe voltage reading on TI-DM200 display. 3) Remove probes from outlet For hard wired controllers: 1) Turn power off at main circuit breaker. 2) Disconnect the wire nuts inside of the controller where the power lines connect to the transformer. -
Page 6: Voltage Check Of Transformer
Voltage Check of Transformer 200V (AC) SET METER TO PROBE BLACK CONNECTIONS 1) Hold one probe to each of the power lines that run into the terminal strip from the transformer. Be careful not to touch the probes together. 2) Check the reading on your multimeter. Acceptable range: 24-28V (AC) - 6 -... -
Page 7: Resistance Check Of Fuse
Resistance Check at Fuse SET METER TO (blue area) PROBE BLACK CONNECTIONS 1) Remove cover of controller. 2) Remove each fuse to test it. 3) Touch one probe to each side of the fuse. 4) Check the reading on your multimeter. Acceptable range: Very low or zero (Ohms): OK. -
Page 8: Voltage Check Of Battery
Voltage Check at Battery Battery Test SET METER TO 1.5V or 9V PROBE BLACK CONNECTIONS 1) Remove cover from the controller and remove the DC battery. 2) Insert black and red test leads into COM and the proper V terminal (1.5Vdc and 9Vdc depending on the type of battery). -
Page 9: Voltage Check Of Station Output
Voltage Check of Station Output 200V (AC) SET METER TO PROBE BLACK CONNECTIONS 1) Check to see if a rain sensor or other shut-off device is connected to the controller. If so, disable or disconnect the sensor before performing further troubleshooting. 2) Remove cover of controller to expose terminal strip. -
Page 10: Resistance Check Of Each Station
Resistance Check of Each Station SET METER TO PROBE BLACK CONNECTIONS CAUTION: TURN CONTROLLER OFF Remove cover of controller to expose terminal strip. 1) Touch (insert) one probe to the terminal labeled COM (for common). 2) Touch the other probe to the terminal of the station (or MV) to be checked. -
Page 11: Voltage Check Of Each Valve
Voltage Check of Each Valve 200V (AC) SET METER TO PROBE BLACK CONNECTIONS 1) At the controller, turn on the station of the valve to be tested. 2) Touch each probe to an exposed part of each of the two splice wires leading into the solenoid. If it is easier, disconnect the solenoid and just check the voltage drop across the two wires coming from the controller. -
Page 12: Voltage Check Of Pump Relay
3) Touch a probe to each of the exposed wires. 4) Check the reading on your multimeter. Acceptable range: 24-28 V (AC) Rain Bird Corporation 970 West Sierra Madre Avenue Azusa, CA 91702 www.rainbird.com -12 -...
