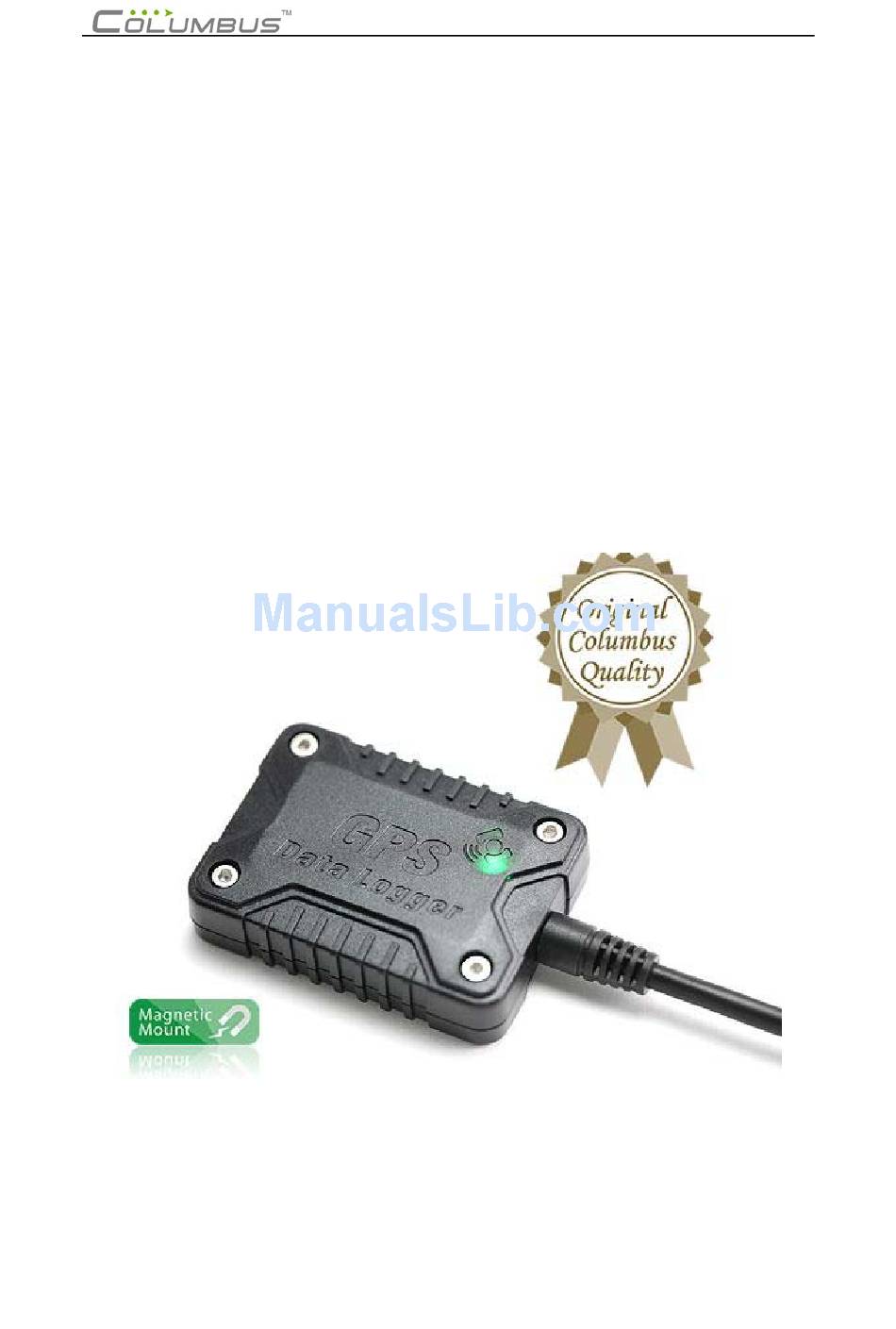

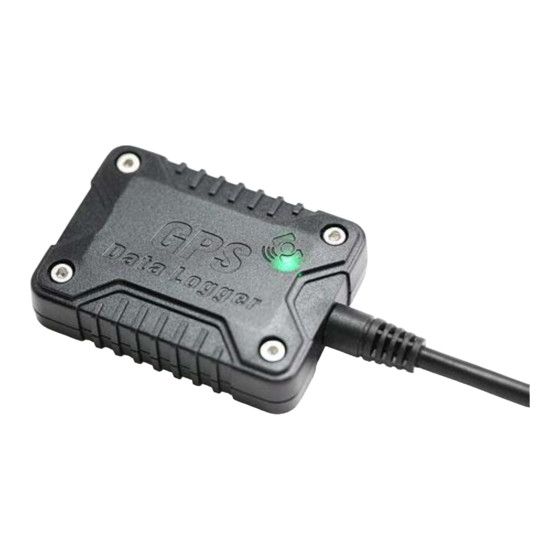

- Page 1 Time Album Lite V1.0.0 User’s Manual Specially for Columbus V-800+ GPS data logger Victory Tech Co.,Ltd ©2012.10 1 / 13...
-
Page 2: Table Of Contents
Contents How to use V-800+ ………………………………………………………………………… Read Log data From V-800+ …………………………………………………………… … Clear data logger memory …………………………………………………………… …6 Tracks viewing…… …………………………………………………………………… Functions --Google Earth/Maps viewing……… ……………………………………………… ………………..8 1. Read all the tracks… ………………………………………… …………….8 2. Read tracks by date…… …………………………………………... -
Page 3: How To Use V-800
How to use Step1. Plug the car charger into the cigarette lighter outlet. Step2. Connect the V-800+ to the car charger, the device starts to fix position and log the tracks automatically. Read Log data From V-800+ Step1 Plug V-800+ to PC USB port. “Computer Management”... - Page 4 Step2 . Run “Time Album Lite” Select ”Com Port（for V-800+）”，”BAUD Rate “is 38400 Click “Connect” Read new tracks：Click “Read New Tracks” Read all the tracks of V-800+ ：Click “Get all tracks” Disconnect from PC: Click”Disconnect” Reading, Progress Bar Click “Stop reading memory” when you need to stop reading. 4 / 13...
-
Page 5: Clear Data Logger Memory
Step3 Finish reading, all the tracks will be displayed in the windows. Clear Data Logger Memory Connecting V-800+----“Device Control”----“Erase all tracks”----“Yes” 5 / 13... -
Page 6: Tracks Viewing
Tracks Viewing 1. Double click the tracks selected, click” Track data”, track data will be displayed in the windows。 2. Track data information： Track No., Date, Time(UTC), State， Latitude， Longitude，Heading，Speed 6 / 13... -
Page 7: Google Earth/Maps Viewing
Google Earth/Maps viewing 1． “Track record”, double click the tracks selected 2． Click“Google Maps” 。Red balloon“S”means start point， “E”means End point. 7 / 13... -
Page 8: Read All The Tracks
Select viewing mode 1.Read all the tracks：Click ”Select all tracks” 2.By Days：”Select Track list”---”By days”---“Select a period of time ”— “Start of period of day”&”End of period of day”—”Confirm selected” 3. By Time: Double click track selected--”Track data”—select start and end time --”Confirm Track selected”... -
Page 9: Save As Kml/Nmea
Save as KML/NMEA 1. KML: select track---click ”Export to Google Earth(KML)” 2. NMEA：select track---click ”Export to NMEA data(GPRMC)” Time/Speed graph 1. “Track record”—double click tracks selected 2. Click ”Speed Graph” Track Editing 1. Delete selected track “Track Record”—select track selected—Click “Delete selected track”---“Yes”... - Page 10 to ”Deleted” 10 / 13...
-
Page 11: Create Selected Track Data
3. Create selected track data (ONLY in ”By tracks” mode) ”Track data”----click ”shift” to select track points ， e.g.: track No.50-No.70 --- click ”Create selected track data”, a new track file will be created, the new track file will be displayed in the above windows. Software Options ”Track record”—“software options”---Time Zone---”Local Time”—Select the local time zone... -
Page 12: Device Settings
V-800+Device Settings 1 Setting device information User can customize the device ID for identification. “Device Control”—“Device settings”---“Note information” 2 Setting the logging interval By Speed：Logging the waypoints >= certain value “Device Control”—“Device settings”---Save by speed By Time: Logging interval by certain time “Device Control”—“Device settings”---Save by time... -
Page 13: Track Files Management
Track files management Saving path：”Desktop”--”Datalog” folder. Including:*.BT0 track file，KML, NMEA files. The track files are named by date. How to delete the track files in the windows? Please delete the track files in the ”Data log” folder. 13 / 13...
