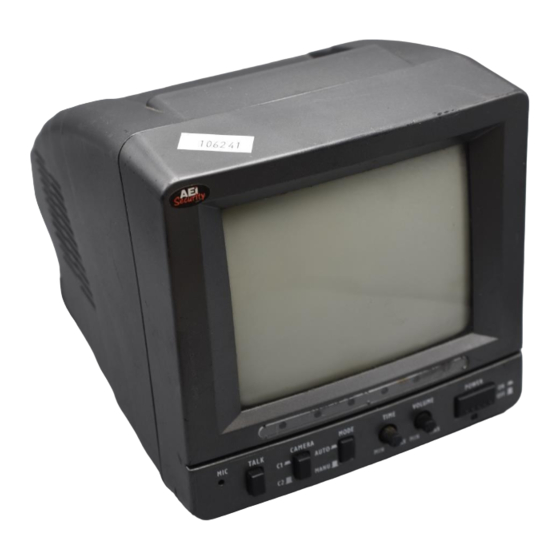

AEI Security & Communications CTVM300AWK User Manual

Wired Monitoring System
CTVM300AWK
AEI Security & Communications Ltd
Pack Contents
1 x Wired Camera
1 x Cable
1 x Monitor
1 x PSU
User Guide
In the interests of product development,
cosmetic appearance & colour may differ.
1 2 3
1) 2-Way Conversation Switch
2) Camera Input Select
3) Mode Select (AUTO/MANUAL)
4) Camera Dwell Time
5) Volume
6) Power Switch (ON/OFF)
7) Audio Level Meter
SEE OVERLEAF FOR QUICK SET UP GUIDE
7
4 5 6
180607-6

IMPORTANT NOTICES

The monitor is NOT SUITABLE
FOR EXTERNAL USE.
Exposure to moisture may damage
this device, render it unsafe for use
and invalidate the 1 year warranty.
ALWAYS SWITCH
device prior to connecting to mains
power and when not in use.
1 2,3
1) 12VDC Power
2) Camera 1 Input
3) Camera 2 Input
4) Audio/Video Output
5) V-Hold Picture Control
6) Contrast Picture Control
7) Brightness Picture Control
OFF this
4 5,6,7
