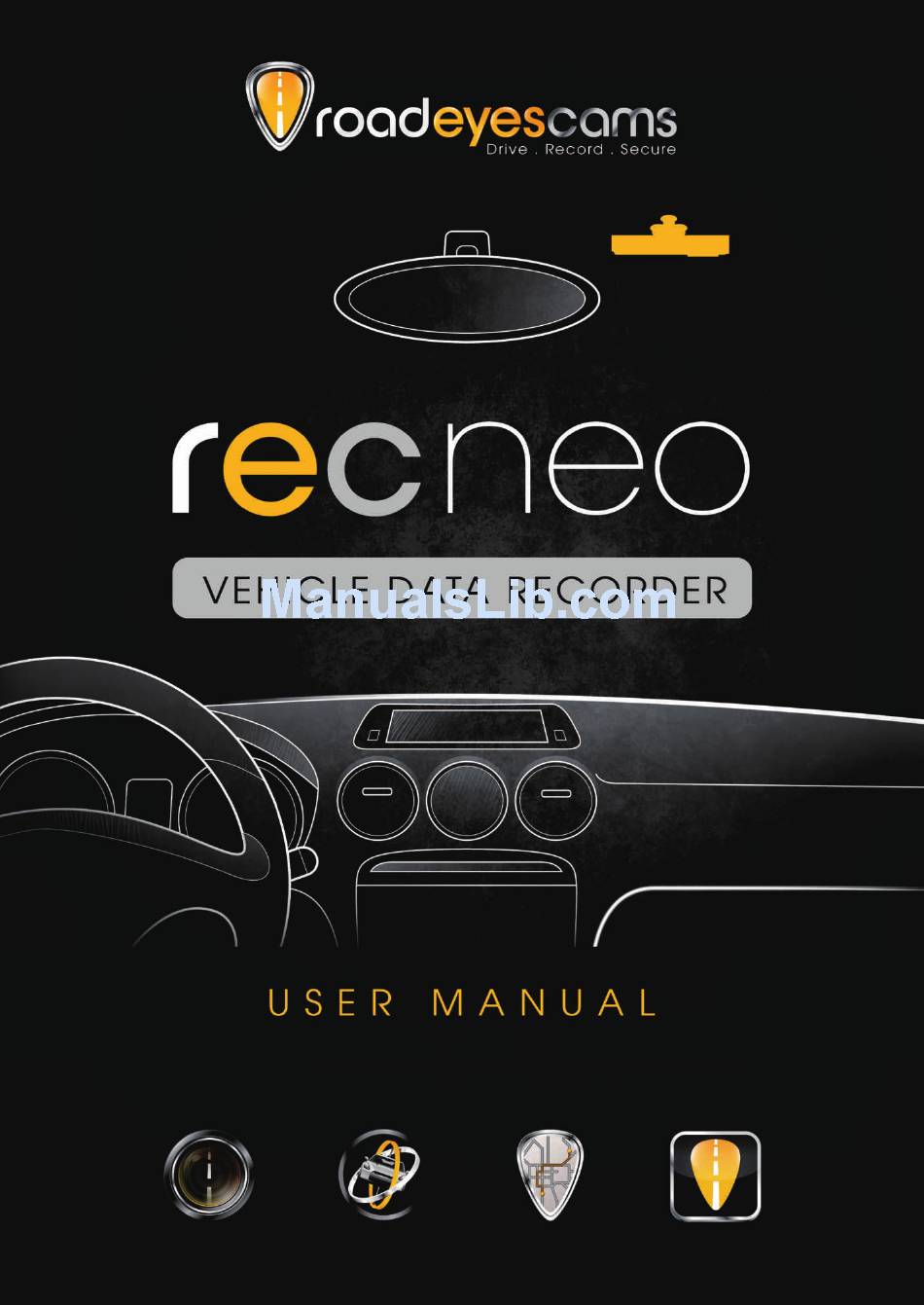

RoadEyes recneo User Manual

Vehicle data recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the recneo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RoadEyes recneo

Summary of Contents for RoadEyes recneo

  • Page 2: Table Of Contents

    Index Features ..................1 Specifications ................2 Product Appearance ..............4 Product Dimensions ..............5 Installation Instructions.............. 6 Start / Stop Recording ............... 7 Playback ................... 9 1. Onsite Playback ..............9 2. Playback On PC Client ............11 Recording Set Up ..............14 Snapshop ................

  • Page 3: Features

    A. Features Suitable for all personal vehicles, taxi, buses, trucks and etc. Easy to install and compact size to prevent blocking the driver's view. 3. Video record on outside driving conditions and audio record inside the vehicle simultaneously. 4mm lens, apx. 90 degrees viewing angle. Image data is securely stored on Micro-SDHC Card, and sudden disconnection from unexpected shock is completely prevented.

  • Page 4: Specifications

    B. Specifications Items Specification System NTSC/PAL Chipset H.264 compression chipset Sensor VGA CMOS Sensor View Angel 4mm lens apx. 90 degrees viewing angle. Voltage 5V±5%; 400mA Operating -10℃~ +70 ℃ (Inside vehicle) Temp Silicon Power or Transcend Micro SDHC card Class 6 or Storage Device above, (min capacity 4G or above) Recording...
  • Page 5 (b) 5V cigarette Power adapter (a) Driver CD (c) Remote controller (d) AV output cable (e) User manual Accessories (f) Card reader (g)SD Card (optional) (a) SD card must be formatted by client software first to be used properly. (b) Machine must be installed in the area that windshield wipers can be reached.

  • Page 6: Product Appearance

    C. Product Appearance Front View Lens Back View Normal recording Power light MICRO SD card Side View AV output Emergency button DC5V...

  • Page 7: Product Dimensions

    D. Product Dimensions unit：mm...

  • Page 8: Installation Instructions

    E. Installation Instructions Make the bracket facing upward. Assemble the suction discs and insert Micro SD card. Set up the machine in a proper Tilt to adjust the viewing angle. position. Connect the power cable. Plug in the cigarette adapter, Connect the power cable.

  • Page 9: Start / Stop Recording

    F. Start / Stop Recording After powering up the unit and a display device connected properly, the display will show the welcome screen as below follow up Firmware Version: XXXX. Then enter the live mode. OSD screen when Power-on ★The OSD and led lights may vary in different models. 1.
  • Page 10 3. GPS When the icon appears in the top right of LIVE screen, it means that there is no GPS or no GPS signal; when the icon appears in the top right that indicates that the GPS is working. 4. G-Sensor When the icon appears in the top right of LIVE screen, it means that no G-Sensor or no abnormal signal;...

  • Page 11: Playback

    G. Playback Two operating methods: Onsite playback with remote controller and playback via client software on PC. 1. Onsite Playback Operating with Remote Control. a. Description of Remote Controller as below. Key Icon Function Description Upward file selection, enter password. arrow key Downward file selection, enter password.
  • Page 12 i. Choose to enter log-in page, choose to key-in password, select to next step. After log-in password, choose to enter playback page. ii. While exiting playback page, select to go back to LIVE view. ★ If there is no password setup for software of PC client, select to enter menu of playback page directly.

  • Page 13: Playback On Pc Client

    2. Playback On PC Client Q：How to playback file of SD card after recording? Ans：Please follow the following instructions to playback records. Press and pop out the SD card. Remove the card from the machine. Insert the SDHC card into the card Connect the card reader to the USB reader (please make sure the slot on PC.
  • Page 14 Player i. Viewer Interface GPS direction & Coordinate G-Sensor Speed Display speed & setting Volume Setting Back to Menu Menu Setting ii. Description for icons of viewer Detail Figure Info Functions GPS Direction. GPS Longitude & Latitude. X: Horizontal G Value for left and right sides of driving vehicle.
  • Page 15 Play previous file. Previous File Previous frame (freeze-frame). Previous Frame Playback records. Playback Key Pause play files. Pause Stop play files. Stop Play files/records. Play Next frame (freeze frame). Next Frame Select next file to play. Next File Backup files. Open File Setting detail functions.

  • Page 16: Recording Set Up

    H. Recording Set Up 1. Insert micro SD card to card reader of PC client before setting. 2. Option setting of software shown below. Detail Figure Info Functions 1. Password: encrypt micro SD card for prevention of getting any info. The string of password is limited as 15 characters.
  • Page 17 3. Time Zone: adjust local time by GMT. 4. Time Setting: PC client time to set up and revise current time. 5. Playback Password: playback by protection of password. Tick number After tick from 0 to 9 while setting. 6. G-Sensor sensitivity: set up by road situation, including off, lower, low, normal, high, and higher.

  • Page 18: Snapshop

    I. Snapshop Q: How to use the snapshot function to get the picture from playback file on micro SD card? Ans: While playback the recorded file of SD card, click the icon then snapshot the image and save into your PC. Default message box is shown by snapshot folder of CarBox2.exe.
  • Page 19 Please follow the steps below: 1. Insert the SD card into card reader, then insert card reader to USB slot in PC side (refer to the charts) Notice Before formatting SD memory card, please ensure to unlock it first. If the card is unlocked but still cannot be formatted, this might be caused by Window Vista / 7 security restrictions.
  • Page 20 (2) Select the location of SD card. (3) 「format」or「restore」the SD card. (3.1)「format」SD card (3.1.1) Click「Format」button, click「yes」to start formatting on the pop-up dialog window. (3.1.2) Pop-up the format finished dialog window. (3.1.3) Click「OK」and re-insert the SD card to do relative setting. ★The original settings are completely eliminated after formatting the SD card.
  • Page 21 (3.2.3) Check the quick format and click "Start" to format. After formatting is complete please click "OK", then "Close" dialog window. (3.2.4) Click "OK" to finish restore SD card. ★After completion, you can use the memory card for other purposes.

  • Page 22: Firmware Upgrade Operating Steps

    K. Firmware Upgrade Operating Steps Please follow the steps to upgrade: Put the memory card into computer, using old version player to backup the important file to computer, then shut down the old version player and start firmware upgrade procedures. Insert the memory card into the card reader, Connect the card reader with the PC.
  • Page 23 Clear all data in memory to Avoid incompatibility caused by not The memory card will properly stored records after formatting. automatically exit Windows sector after formatting completed. Remove the memory card from the card reader and re-insert it. (After formatting, the remaining capacity will show 80MB) Extracted carbox.rar to memory card.
  • Page 24 Machine will use the setting value with new player version for recording after firmware updating completed. When setting is completed, the player will close automatically. Remove memory card from USB device from PC. Power-off first, then put the memory into Vehicle video recorder slot, connect TV-out cable, if it doesn’t have TV-Out function, please verify by recording light indicator on machine.
  • Page 25 After firmware update, please reboot the Machine manually to complete the update. P.S after finished updated, When turn on the vehicle video recorder, it will appear firmware version number , then enter the live recording screen (remark: version number will be changed of each firmware updated.) From vehicle: (ii).
