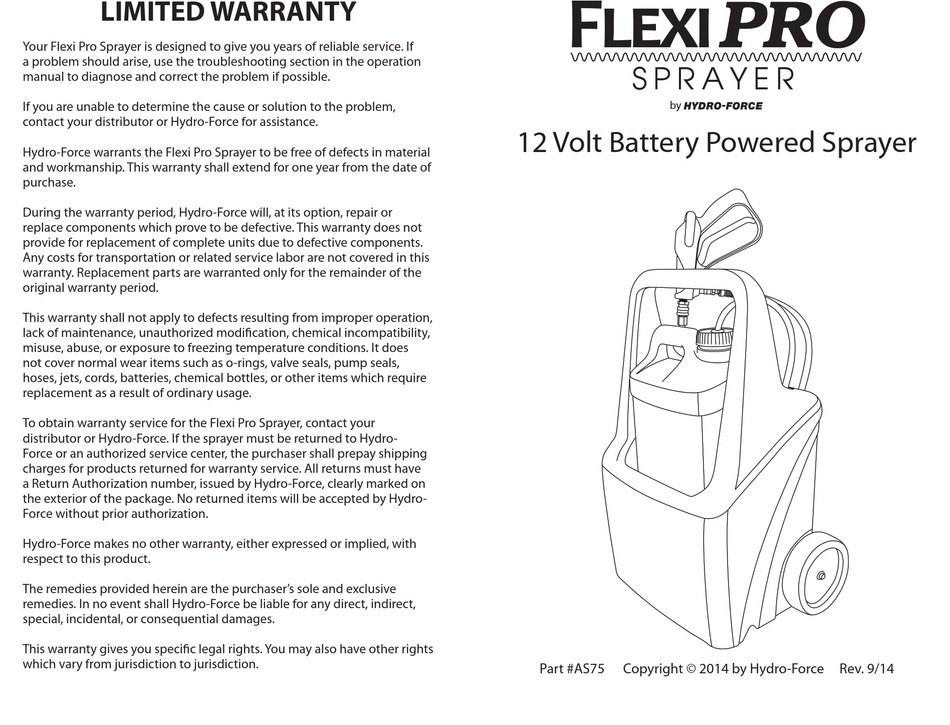

Hydro-Force Flexi Pro User Manual

Flexi pro 12 volt battery powered sprayer

Advertisement

Quick Links

F����
PRO
LIMITED WARRANTY
Your Flexi Pro Sprayer is designed to give you years of reliable service. If
a problem should arise, use the troubleshooting section in the operation
S P R A Y E R
manual to diagnose and correct the problem if possible.
If you are unable to determine the cause or solution to the problem,
by
contact your distributor or Hydro-Force for assistance.
12 Volt Battery Powered Sprayer
Hydro-Force warrants the Flexi Pro Sprayer to be free of defects in material
and workmanship. This warranty shall extend for one year from the date of
purchase.
During the warranty period, Hydro-Force will, at its option, repair or
replace components which prove to be defective. This warranty does not
provide for replacement of complete units due to defective components.
Any costs for transportation or related service labor are not covered in this
warranty. Replacement parts are warranted only for the remainder of the
original warranty period.
This warranty shall not apply to defects resulting from improper operation,
lack of maintenance, unauthorized modification, chemical incompatibility,
misuse, abuse, or exposure to freezing temperature conditions. It does
not cover normal wear items such as o-rings, valve seals, pump seals,
hoses, jets, cords, batteries, chemical bottles, or other items which require
replacement as a result of ordinary usage.
To obtain warranty service for the Flexi Pro Sprayer, contact your
distributor or Hydro-Force. If the sprayer must be returned to Hydro-
Force or an authorized service center, the purchaser shall prepay shipping
charges for products returned for warranty service. All returns must have
a Return Authorization number, issued by Hydro-Force, clearly marked on
the exterior of the package. No returned items will be accepted by Hydro-
Force without prior authorization.
Hydro-Force makes no other warranty, either expressed or implied, with
respect to this product.
The remedies provided herein are the purchaser's sole and exclusive
remedies. In no event shall Hydro-Force be liable for any direct, indirect,
special, incidental, or consequential damages.
This warranty gives you specific legal rights. You may also have other rights
which vary from jurisdiction to jurisdiction.
Part #AS75
Copyright © 2014 by Hydro-Force
Rev. 9/14
