Hydro-Force FlexiPro AS76 Manual

12 volt electric

Advertisement

Quick Links

F����
PRO

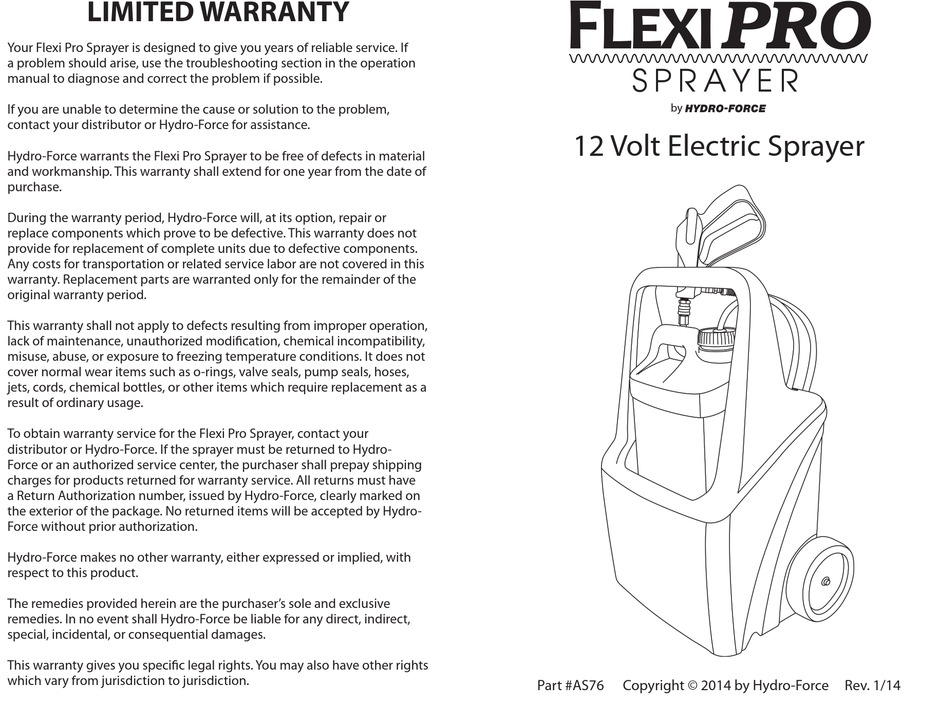

LIMITED WARRANTY
Your Flexi Pro Sprayer is designed to give you years of reliable service. If
a problem should arise, use the troubleshooting section in the operation
S P R A Y E R
manual to diagnose and correct the problem if possible.
If you are unable to determine the cause or solution to the problem,
by
contact your distributor or Hydro-Force for assistance.
12 Volt Electric Sprayer
Hydro-Force warrants the Flexi Pro Sprayer to be free of defects in material
and workmanship. This warranty shall extend for one year from the date of
purchase.
During the warranty period, Hydro-Force will, at its option, repair or
replace components which prove to be defective. This warranty does not
provide for replacement of complete units due to defective components.
Any costs for transportation or related service labor are not covered in this
warranty. Replacement parts are warranted only for the remainder of the
original warranty period.
This warranty shall not apply to defects resulting from improper operation,
lack of maintenance, unauthorized modification, chemical incompatibility,
misuse, abuse, or exposure to freezing temperature conditions. It does not
cover normal wear items such as o-rings, valve seals, pump seals, hoses,
jets, cords, chemical bottles, or other items which require replacement as a
result of ordinary usage.
To obtain warranty service for the Flexi Pro Sprayer, contact your
distributor or Hydro-Force. If the sprayer must be returned to Hydro-
Force or an authorized service center, the purchaser shall prepay shipping
charges for products returned for warranty service. All returns must have
a Return Authorization number, issued by Hydro-Force, clearly marked on
the exterior of the package. No returned items will be accepted by Hydro-
Force without prior authorization.
Hydro-Force makes no other warranty, either expressed or implied, with
respect to this product.
The remedies provided herein are the purchaser's sole and exclusive
remedies. In no event shall Hydro-Force be liable for any direct, indirect,
special, incidental, or consequential damages.
This warranty gives you specific legal rights. You may also have other rights
which vary from jurisdiction to jurisdiction.
Part #AS76
Copyright © 2014 by Hydro-Force
Rev. 1/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FlexiPro AS76 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hydro-Force FlexiPro AS76

  • Page 1 If you are unable to determine the cause or solution to the problem, contact your distributor or Hydro-Force for assistance. 12 Volt Electric Sprayer Hydro-Force warrants the Flexi Pro Sprayer to be free of defects in material and workmanship. This warranty shall extend for one year from the date of purchase.
  • Page 2: Table Of Contents

    Notes Table of Contents Feature and Benefits ........... 3 Specifications ..............3 Complete Sprayer Diagram ........4 Complete Sprayer Parts List ........5 Sprayer Body and Gun Diagram ......6 Sprayer Body and Gun Parts List ......7 Sprayer Base Diagram ..........8 Sprayer Base Parts List ..........
  • Page 3: Feature And Benefits

    Pressure: 50 psi Voltage: 115/102 volt AC Power Cord detachable Amperage: 0.6 amp Length: 8 feet Gauge: 16 Jets Pre-spray: Fuse Veejet, Hydro-Force Amps: 10 part # B281, size = 8005 Protectant: Teejet, Hydro-Force part # B006, size = 6501...
  • Page 4: Complete Sprayer Diagram

    Operation Complete Sprayer Diagram 1. Fill chemical container with desired chemical and place container in the Flexi Pro Sprayer. 2. Place the chemical feed hose into the chemical container and secure the cap. 3. Connet the Power Cord to the FlexiPro Sprayers Power Jack. 4.
  • Page 5: Complete Sprayer Parts List

    Complete List of Parts Safety and General Maintenance • Run fresh water through the sprayer after each day of use to flush chemical from PART # DESCRIPTION QUANTITY PART # DESCRIPTION QUANTITY the pump and hoses. • Keep chemical containers and strainer screen clean. AP21 Water Pump PA080...
  • Page 6: Sprayer Body And Gun Diagram

    Sprayer Body and Gun Diagram Safety and General Maintenance CAUTION! This machine is an electrical appliance. Care must be taken to reduce the risk of electrical shock. READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE OPERATING • To reduce the risk of property damage or injury, repairs to electrical systems should only be performed by experienced technicians.
  • Page 7: Sprayer Body And Gun Parts List

    NUMBER PART # DESCRIPTION QUANTITY WIRING - FLEXI PRO SPRAYER AS75 Gun Diagram B281 Veejet 8005 ¼” FPT NA0833 Extension BR335 Quick Connect Male BR337 Quick Connect Female 100010 Spray Gun - Valve BR112 Coupling ¼” FXF Bottle Diagram NM4116 Rubber Bushings NM4103 NM4101...
  • Page 8: Sprayer Base Diagram

    Sprayer Base Diagram NUMBER PART # DESCRIPTION QUANTITY NM4061 Base Plate Screws NM4106 Base Plate PA177 Wire Green 6” NM5020 Wire Red 2 feet NA0817 Tubing 1/4” ID Vinyl 12” 100004 Connectors NM5033 Pump Base Washers NM4081 Pump Base Nuts P&H PA080 #10 Ring Connector...
