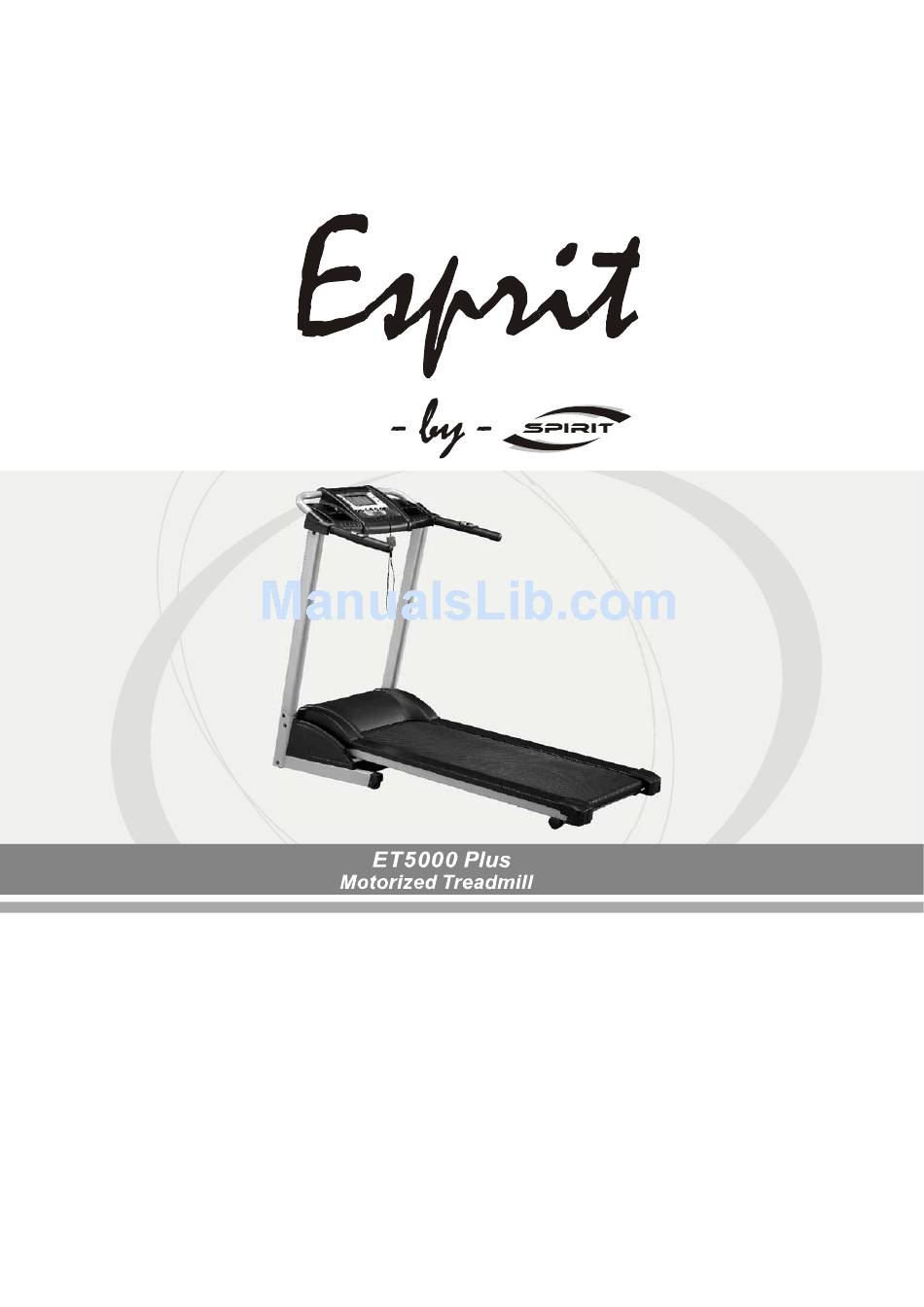

- Page 1 ESP0029 – ET5000 Plus OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL! ALWAYS CONSULT A DOCTOR BEFORE STARTING AN EXERCISE PROGRAM...
-
Page 2: Safety Hints
SAFETY HINTS IMPORTANT: THIS UNIT IS INTENDED FOR HOUSEHOLD USE ONLY SAFETY PRECAUTIONS Thank you for purchasing our product. Even though we go to great efforts to ensure the quality of each product, occasional errors and/or omissions do occur. In any event should you find this product to be defective or missing a part please contact our Customer Service Department. - Page 3 We appreciate your support and we will always remember that you are the reason that we are in business. Yours in Health, BOYLES FITNESS Equipment Pty Ltd. Name of Dealer______________________________________ Purchase Date ______________________________________ ET5000 Plus/ ESP0029 _ver. A...
-
Page 4: Specifications
INTRODUCTION The treadmill has been designed and constructed to provide trouble free usage and enjoyable exercise. You can greatly improve your understanding and benefits of exercising by carefully reading the instructions given in this manual. Please familiarize yourself with the maintenance advice provided for you. -
Page 5: Assembly Pack Check List
ASSEMBLY PACK ASSEMBLY PACK CHECK LIST CHECK LIST #90. 5/16" × 18 × 1.5T Flat Washer (8pcs) #91. 5/16" × 23 × 1.5T #89. 5/16" × 15m/m Curved Washer (6pcs) Button Head Socket Bolt (14pcs) #36. Quadrate Safety Key (1pc) #94.Lubricant (1pc) #92. - Page 6 ASSEMBLY ASSEMBLY Step 1. Take out the Treadmill from the carton and lay it aside on the smooth ground. Step2. Thread 10P Computer Cable (Lower) (46) through Right Upright (4).
- Page 7 ASSEMBLY Step 3 1. Install the Right and Left Upright (4,5) into the Frame Base (2). 2. Secure the Right and Left Upright (4,5) to the Frame Base (2) with the 8pcs of 5/16" × 15m/m Button Head Socket Bolts (89), 4pcs of 5/16" × 18 × 1.5T Flat Washers (90) and 4pcs of 5/16"...
-
Page 8: Computer Operation Instructions
FUNCTIONS COMPUTER OPERATION INSTRUCTIONS Keys for Meter Panel “start/stop” key Press this key, machine begins to run at the speed of 1.0km/h. When the machine runs at the speed of more than 3.5km/h, press this key, machine stops slowly, during this operation, none keys are in function. - Page 9 FUNCTIONS “speed” key " ↑ " "↓" Press this key FAST or SLOW, it can adjust the running speed of the treadmill. “Incline” key ↑ " "UP "↓"DOWN Press this key , it can adjust the incline of the treadmill. “speed shortcut”...
- Page 10 FUNCTIONS Incline Feature · Incline may be adjusted anytime after belt movement. · The incline range is from 0 to 10 levels. · Press the ‘up’ or ‘down’ to achieve desired level of effort. Three Quick access key of 3, 6 and 9 are also available to adjust the incline percent.
- Page 11 FUNCTIONS...
- Page 12 UNFOLDING FOLDING TRANSPORT UNFOLDING Pull locking knob and hold running deck and lower down to the floor. (As shown Figure 1_2.) FOLDING Pull the locking knob with right hand, left hand lift the running deck up to 30cm then two hands lift it until it is locked by the locking knob.
-
Page 13: Belt Tracking Adjustmeant
BELT TRACKING ADJUSTMEANT If during use you notice that walking belt either shifts to the right or the left of center, first remove "Safety Key" and unplug equipment from AC power source. Using M5 Allen wrench provided, turn left rear roller adjustment as indicated below clockwise no more the 1/4"... -
Page 14: Treadmill Lubrication
TREADMILL LUBRICATION Your treadmill should require little maintenance other then periodically applying lubricant. Lubricating under the treadbelt will ensure superior performance and extend its life expectancy. HOW TO CHECK TREADBELT FOR PROPER LUBRICATION? Lift one side of the treadbelt and feel the top surface of the treadboard. If the surface is slick to the touch, then no further lubrication is required. -
Page 15: Weight Training
AEROBIC EXERCISE Aerobic exercise is any sustained activity that sends oxygen to your muscles via your heart and lungs. Aerobic exercise improves the fitness of your lungs and heart - your body’s most important muscle. Aerobic exercise fitness is promoted by any activity that uses your large muscle -arms, legs, or buttock, for example. - Page 16 WARM UP Quadriceps Stretch With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot up. Inner Thigh Stretch Sit with the soles of your feet together with your knees...
-
Page 18: Parts List
PARTS LIST DESCRIPTION Q'TY Main Frame Frame Base Incline Bracket Right Upright Left Upright Console Support Outer Slide Inner Slide Locking Knob Incline Motor Drive Belt Motor Bracket Drive Motor Running Belt Running Deck Front Roller W/Pulley 16~3 Magnet Rear Roller Sleeve for Frame Base Front Wheel Rear Wheel Sleeve Console... - Page 19 PARTS LIST DESCRIPTION Q'TY Grommet Breaker On/Off Switch Power Cord 350m/m_Connecting Wire (White) 350m/m_Connecting Wire (Black) 10cm × 764 × 764_Connecting Wire (Black) Controller 900m/m_10P Computer Cable (Upper) 1900m/m_10P Computer Cable (Lower) 1000m/m_Sensor W/Cable Frame Cover □21.4 × 21.4m/m_Square End Cap □25.4 ×...
- Page 20 PARTS LIST DESCRIPTION Q'TY Cylinder M5_Split Washer 3/8" × 2-1/2"_Hex Head Bolt Wire Tie Mount 5/16" × 15m/m_Button Head Socket Bolt 5/16" × 18 × 1.5T_Flat Washer 5/16" × 23 × 1.5T_Curved Washer Combination M5 Allen Wrench & Phillips Head Screw Driver Lubricant 5 ×...
- Page 21 WARRANTY, SAFETY AND ASSEMBLY INFORMATION ESP0029 - ET5000 Plus IMPORTANT Please read and retain this manual as it will assist with identification for parts and service. ---------------------------------------------------------------------------------------------------------------------------- BOYLES FITNESS warrants their treadmill to be free from defects in material and workmanship under normal use and service conditions.
- Page 22 This ET5000 PLUS is warranted to be free from defects in material and workmanship under normal use and service conditions for a period of 6 months from the date of purchase of this article.
-
Page 23: Service Centre
A service representative will then assist you in the appropriate action to be taken. For efficient processing of your enquiry please have proof of purchase, the date of purchase and the retailer name you purchased the item from, and the brand on the product. Photos of the product, and scans of receipts, may be requested to assist with your claim.
